Introducing the Midea CO2 Incubator - your ultimate companion for creating a safe and reproducible growth environment for cell cultures. With its state-of-the-art technology, this incubator provides unmatched natural simulation to ensure optimal growth conditions at all times, catering to the needs of research labs, biotech firms, and academic institutions worldwide.
All gas injection lines are filtered via HEPA filter to remove impurities before being injected into the chamber. The filter is very ecient to entrap 99.97% particulates larger than 0.3μm.

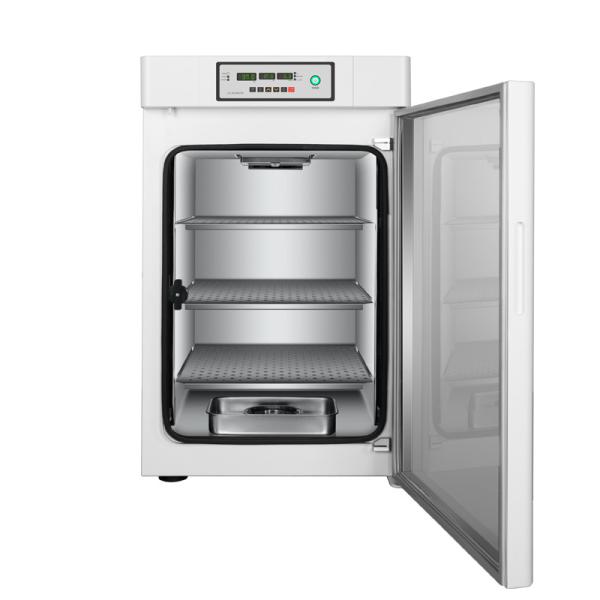

Easy to observe inner samples.Reduce the disturbance of the incuba-
tion conditions.Decrease gas consumption and the risk of contaminants entering inside.
Safe perforated shelves with anti-slip design, allow internal air flow freely.Abrasive and corrosion resistance, easy to clean.
Natural Air and Moisture Convection Air and Moisture in chamber are dis-tributed naturally by 6 side heating, air circulation fan.
Item | MCP-120 | MCP-180 | MCP-260 |
Temperature Range | Ambient +5℃ to 60℃ | ||
Accuracy | ±0.1℃ at 37℃ | ||
Uniformity at 37℃/ RT 25℃ | ±0.3℃ | ±0.3℃ | ±0.4℃ |
CO Inlet pressure range | 0.3~0.5bar | 0.3~0.5bar | 0.6~0.7bar |
Controller | PID | ||
Humidity at 37℃ | 70% ~ 80% at 37℃(with water try) | ||
CO2 Range | 0% to 20% | ||
Accuracy at 5% at 37℃ | ±0.1% at 5% at 37℃ | ||
Increment | 0.1% | ||
CO2Sensor | IR CO2 Sensor | ||
Control panel | LED Display | ||
Jacket type | Dry wall type (6 sides direct heating) | ||
Chamber material | Stainless steel (SUS 304) | ||
Outer door | Silicon Packing Magnet Door | ||
Inner door | Tempered Safety Glass Door | ||
Weight | 70KG | 80KG | 115KG |
Capacity | 120 Liter | 180 Liter | 260 Liter |
Perforated Shelve | 3/8 | ||
Max. heating power | 320W | 320W | 610W |
Sterilization heating power | / | 650W | 850W |
Chamber dimension(WxDxH/mm) | 480x470x520 | 473x528x710 | 530x590x900 |
Overall dimension (WxDxH/mm) | 580x560x765 | 560x620x945 | 630x680x1125 |
Standard UV | NO | ||
Standard dry heat sterilization | YES | ||
Voltage/frequency | 220-240V/50-60Hz |
