SS Mineral Insulated Wire Alloy Melting Low Melting Point
SS Mineral Insulated Wire Alloy Melting Low Melting Point
SS Mineral Insulated Wire Alloy Melting Low Melting Point
SS Mineral Insulated Wire Alloy Melting Low Melting Point
Specifications
Brand Name :
MICH
Model Number :
MIHC
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 meter
Price :
USD0.5-USD5 per meter
Payment Terms :
L/C, T/T
Supply Ability :
20 million meters per year
Delivery Time :
in one month
Packaging Details :
plywood crates
Sheath :
Stainless Steel
Function :
Metal Alloy Melting
Application :
Metal Industry
Diameter :
2 mm
Cable Length :
in Meter
Power :
in Watt
Vottage :
Volt
Unit Weight :
Up to 184 kg/km
Description

Low Melting Point Alloy Melting Use MI Heating Cable for Metal Manufacturing Industry can meet the requirements of high temperature condition and high heating power (up to 269W/m).The maximum heating temperature can reach up to 600℃. Conductor resistance value ranges from 2.1 to 36100Ω/km supplied by MICH. Mineral insulated heating cable possesses excellent mechanical strength and corrosion resistance. The heating cable of series resistance can meet the requirements of different power.

Application

Nuclear industry construction -- asphalt heating
Metal manufacturing industry- low melting point alloy melting tank/vessel heating
Shell heating for the extruder Heat tracing for high temperature industrial piping
anticoagulation and viscosity reduction of process media All kinds of industrial electric heaters

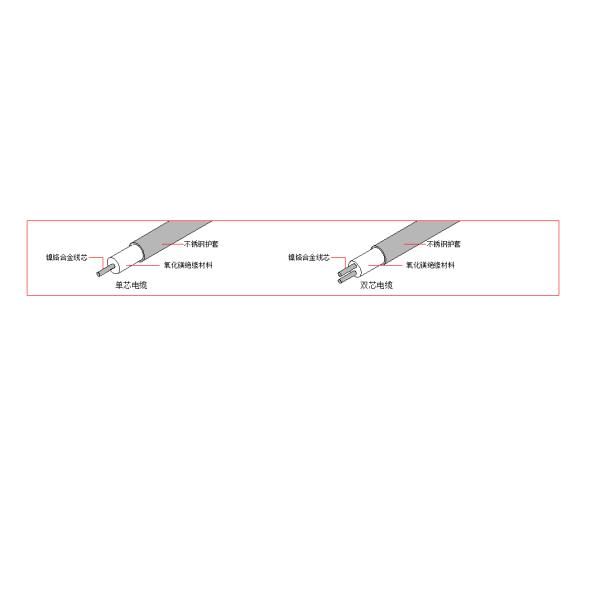

Cable Structure

SS Mineral Insulated Wire Alloy Melting Low Melting Point

Specification

Heating cable instruction code

MI SS-B 16K6560/60/2520/220/E1

NO. 1 2 3 4 5 6 7

No. Instruction
1 Sheath material Stainless steel
2 structure of cable components shown in table 1
3 cable codes shown in table 2, 3 and 4
4 length of heating cable In meter
5 Heating cable power In Watt
6 heating cable voltage In Volt
7 heating cable voltage See table 5

Cable Code

Serial NO. Instruction
1 core number 1 or 2
2 Voltage grade 3=300V, 6=600V
3 conductor materials K,N,C
4 cold resistance ×1000 6560=6.56Ω/m×1000

1 6 K 6560

No 1 2 3 4

Table 1 Structure of Cable Element

SS Mineral Insulated Wire Alloy Melting Low Melting Point

Table 2 Heating Cable Specification (600V Single Core)

Cable Code Diameter Nominal resistance at +20℃ Maximum manufacturing length Unit weight
mm Ω/m m kg/km
16C2.1 6.8 0.0021 130 184.2
16C3.4 5.9 0.0034 173 138.7
16C5.3 5.3 0.0053 214 111.9
16C8.5 4.8 0.0085 261 91.8
16C13 4.3 0.013 325 73.7
16C21 4.0 0.021 376 63.8
16K40 5.8 0.04 179 164.7
16K50 5.4 0.05 206 140.1
16K60 5.2 0.06 222 126.7
16K80 4.8 0.08 261 106.8
16K100 4.7 0.1 200 100.0
16K120 4.5 0.12 200 90.2
16K160 6.5 0.16 200 77.7
16K200 5.9 0.2 200 110.0
16K250 5.3 0.25 215 92.1
16K400 4.7 0.4 280 74.0
16K500 4.5 0.5 300 66.2
16N630 4.3 0.63 185 94.1
16N1000 3.9 1.0 230 91.3
16N1600 3.6 1.6 270 88.2
16N2500 3.4 2.5 300 69.8
16N2800 3.4 2.8 300 76.0
16N3300 3.4 3.3 300 68.9
16N4000 3.2 4.0 350 68.5
16N5200 3.2 5.2 350 68.2
16N6300 3.2 6.3 350 55.5
16N10000 3.2 10 350 41.7

Table 3 Heating Cable Specification (600V Double Cores)

Cable Code Diameter Nominal resistance at +20℃ Maximum manufacturing length Unit weight
mm Ω/m m kg/km
26K8.4 11.8 0.0084 43 636.1
26K13.4 9.8 0.0134 63 433.7
26K21 8.8 0.021 78 340.7
26K34 8.0 0.034 94 275.2
26K54 7.1 0.054 119 213.6
26K85 6.4 0.085 147 171.2
26K130 6.0 0.13 167 148.6
26K180 7.9 0.18 96 273.3
26K260 7.4 0.26 110 235.4
26K360 6.8 0.36 130 196.6
26K500 6.4 0.5 100 172.1
26K650 5.9 0.65 100 145.6
26K1000 5.7 1.0 100 134.1
26K1300 6.2 1.3 100 161.5
26K2000 5.8 2.0 100 139.8
26K3300 5.4 3.3 100 119.5
26N4600 5.8 4.6 100 139.0
26N8000 5.4 8.0 100 119.2
26N13000 5.0 13.0 100 101.3
26N27000 4.8 27.0 100 92.6
26N40000 4.6 40.0 100 84.9
26N60000 4.4 60.0 100 77.5
26N72000 4.2 72.0 100 70.6

Table 4 Heating Cable Specification (300V Double Cores)

Cable Code Diameter Nominal resistance at +20℃ Maximum manufacturing length Unit weight
mm Ω/m m kg/km
23K210 5.2 0.21 222 118.5
23K300 4.8 0.3 261 99.4
23K400 4.8 0.4 261 97.7
23K480 4.8 0.48 261 96.5
23K650 4.6 0.65 284 87.8
23K1000 4.1 1.0 100 69.3
23K1300 3.8 1.3 100 59.3
23K2000 5.0 2.0 100 105.3
23K2400 4.8 2.4 100 96.2
23K3000 4.6 3.0 100 87.8
23N4600 4.8 4.6 100 96.8
23N7500 4.6 7.5 100 87.4
23N11200 4.4 11.2 100 79.2
23N14000 4.2 14.0 100 72.0
23N18000 3.6 18.0 100 52.9
23N26000 3.6 26.0 100 52.5
23N40000 3.4 40.0 100 46.6
23N50000 4.0 50.0 100 64.2
23N60000 3.6 60.0 100 52.0
23N72000 3.4 72.0 100 46.4

Note:

The resistance value of 2-core cable in the above table is the measured value after the ends are twisted (i.e., single-core resistance X2);

If not specified, the sheath material is based on SS 321;

For the use of 660V voltage occasions, please contact our company professionals.

Table 5 terminal specifications

Model: A, D, E Model: B
Maximum Voltage (V) Maximum Current (A) Terminal Specification Maximum Current (A) Terminal Specification
600 15 E2 20 E1
600 20 E2 25 E2
600 30 E3 40 E2
600 50 E3 70 E2
600 70 E3 100 E3

Note 1: E1 means 1/2 "NPT;E2 means 3/4 "NPT;E3 represents 1 "NPT (taper thread);Additional connection thread requirements are available.

Note 2: the length of cold end cable with standard configuration is 2 meters. If increase or decrease of length required, please contact our professional personnel.

Corresponding reference table between the output power and sheath temperature

SS Mineral Insulated Wire Alloy Melting Low Melting Point

Anticorrosive specification

Material Application
Sulfate Not Recommend
Hydrochloric acid Not Recommend
Hydrofluoric acid Not Recommend
Phosphate Not Recommend
Carbonate According to the real Data
Organic acid Applicable at any condition
Alkali metal Acceptable
Sea water Not Recommend
Chloride Not Recommend

Explosion-proof instructions

MISS series heating cable with explosion-proof terminal, can be used in potential explosive environment. Authenticated by the Chinese CQST, in accordance with Chinese GB3836 explosion-proof electrical standards, they can be applicable to Ⅱ A, Ⅱ B, Ⅱ C (C1D2) level of explosion-proof electrical equipment.
