Hollow Mineral Insulated Metal Sheathed Cable Forced Cooling
Hollow Mineral Insulated Metal Sheathed Cable Forced Cooling
Specifications
Brand Name :
MICH
Model Number :
HCMICFCT
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 meter
Price :
USD0.5-USD5 per meter
Supply Ability :
10 million meters per year
Delivery Time :
in one month
Packaging Details :
plywood crates
Application :
Nuclear Plant Reactor
Sheath Thickness :
0.25-1.9
Cores :
1
Insulation :
Inorganic Material
Function :
Signal Transmission
Property :
long servicing time
Cable Diameter :
3.0-19.1 mm
Types :
coaxial, double shield and triax
Description

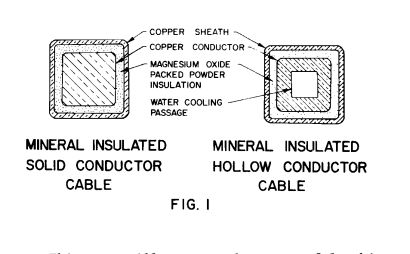

Hollow Conductor Mineral Insulated Cable of Forced Cooling Type is composed of conductor, mineral powder insulation layer and metal sheath. The center of the conductor has an axial through-hole for coolant flow. Normally, the cooling agent is water.

The structural materials are as follows:

——Conductor: copper or Cr Zr Cu alloy;

——Insulation: magnesia powder (MgO);

——Sheath: 304L, 321, 316L, 316LN, Inconel 600 or 825 alloy.

Hollow Mineral Insulated Metal Sheathed Cable Forced Cooling

Forced cooling type hollow conductor mineral insulated cable

Parameters Technical data
Conductor nominal section,mm2 150 185 240 300 400 500 600 740 800
Conductor nominal OD,mm 18.6 20.4 23.4 27 29 34.4 36.5 40 44
Conductor nominal wall thickness,mm 3.0 3.3 3.9 4.3 5.3 5.6 6.2 6.9 7.3
Insulation nominal thickness,mm 3.0
Metal sheath OD,mm 27 29 32 36 38 44 46 50 54
Sheath nominal thickness,mm 1.2 1.3 1.3 1.5 1.5 1.8 1.8 2.0 2.0
Cores 1
Insulation thickness,MΩ ≥ 1000 MΩ·km(Cable length less than 100m,≥ 10000 MΩ)
Voltage testing Room temp.(25℃±5℃) 2500V/5min,No breakdown
200℃±10℃ 1500V/5min,No breakdown
Rated voltage,Vac 750
Conductor material Copper or Cr Zr Cu alloy
Insulation material MgO
Sheath material 304L,321,316L,316LN,Inconel 600 or Alloy 825
