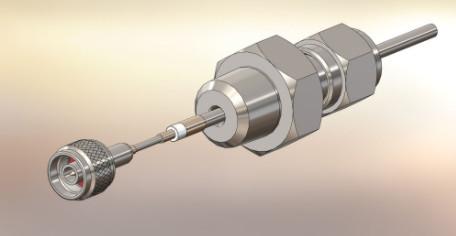

Triaxial Mineral Insulated Instrumentation Cable for Reactor Core
Triaxial Mineral Insulated Instrumentation Cable for Reactor Core
Triaxial Mineral Insulated Instrumentation Cable for Reactor Core
Triaxial Mineral Insulated Instrumentation Cable for Reactor Core
Triaxial Mineral Insulated Instrumentation Cable for Reactor Core
Triaxial Mineral Insulated Instrumentation Cable for Reactor Core
Specifications
Brand Name :
MICH
Model Number :
ICMICRC
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 meter
Price :
USD0.5-USD5 per meter
Supply Ability :
10 million meters per year
Delivery Time :
in one month
Packaging Details :
plywood crates
Application :
Nuclear Signaling
Sheath Thickness :
0.25-1.9
Cores :
1
Insulation :
Inorganic Material
Function :
Detection
Property :
long servicing time
Cable Diameter :
3.0-19.1 mm
Description

Mineral Insulated Instrumentation and Control Cable for Reactor Core is under the special requirement of high-performance instrumentation systems which should be the provision of adequate interference immunity. The overall chain from the signal source to the measurement should be overall applied. Because of the following mentioned advantages, Mineral Insulated (MI) cables are now widely used in the reactor core.

Avoiding standard MI cables which are inadequate in maintaining immunity and low losses, the special cables supplied by Pasia are designed to, through regions of high radiation and temperature, electromagnetic noise found from the nuclear reactor core, transmit very small pulse or dc signals.

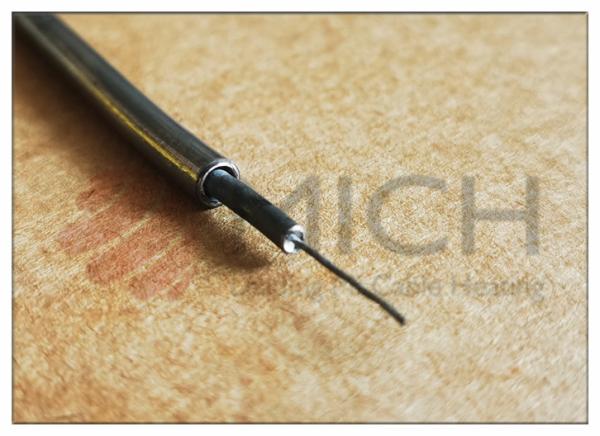

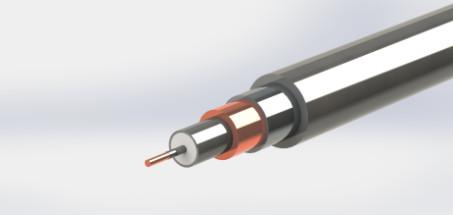

Specialized cable structure can maintain a certain high level of insulation resistance and make the surface transfer impedance minimized. Based on this philosophy, multiple metal and insulating sheaths should be adopted. The MI cables will operate in high neutron flux fields and at temperatures of up to 900 ºC whilst maintaining a high insulation resistance.

At their typical operating temperature of 550 ºC, the insulation is better than 3x10-9 amps per metre.

Parameters Technical data
Coaxial Double shield Triax
Conductor Cores 1
OD,mm 0.20 - 3.18
Insulation thickness Inner,mm 0.35 - 6.1
Outer,mm - 0.40 - 1.0
Cable OD,mm 4.0 - 19.1 3.0 - 19.1
Sheath thickness,mm 0.25 - 1.60 0.30 - 1.90
Characteristic impedance,Ω 50±5

Insulation thickness

 Core – inner shielding ≥ 10000 MΩ
Inner shielding – outer shielding - ≥ 10000 MΩ
γ radiation dose,Gy/h ≥ 2 × 106
Maximum withstand temperature ≥ 900℃ / 2min

Structure materials

(optional)

 Conductor Copper, nickel chromium or pure nickel
Inner insulation High-pure MgO,Al2O3,SiO2
Inner shielding - Copper,,304L,321,316L
Outer insulation - High-pure MgO,Al2O3,SiO2
Outer shielding - - Copper,
Sheath 304L,321,316L,Inconel 600,Alloy 825

Features

■ Optimised geometries to minimise surface transfer impedance

■ Designed to maintain screening performance of measurement chain

■ Very high insulation resistance to minimise signal losses

■ All cable supplied fully tested

■ Maximum operating temperature of 700 ºC in high neutron flux fields

■ Dimensions and lengths can be adapted to particular applications
