0.06Mm Foil Aluminum Honeycomb Grid Core Of Small Cell
0.06Mm Foil Aluminum Honeycomb Grid Core Of Small Cell
0.06Mm Foil Aluminum Honeycomb Grid Core Of Small Cell
0.06Mm Foil Aluminum Honeycomb Grid Core Of Small Cell
Specifications
Brand Name :
MICH
Model Number :
60TFAHCSC
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 m2
Price :
USD0.5-USD5 per square meter
Payment Terms :
L/C, T/T
Supply Ability :
1 million M2 per year
Delivery Time :
in one month
Packaging Details :
plywood crates
Property :
Small Cell
Bonding Method :
Glue bonded
Cell Size :
1.8 mm
Foil thickness :
0.06 mm
Foil Treated :
Chromate-free Passivated
Application :
High Speed Train
Optimized Supply :
Expanded
Supply Method :
Expanded, slice, block
Description

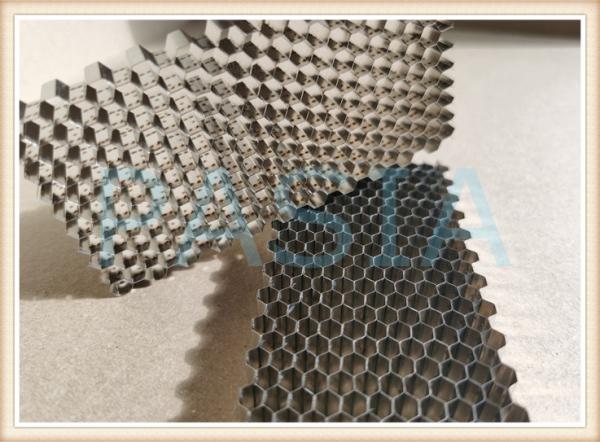

0.06 mm Thick Foil Aluminum Honeycomb Core of Small Cell is made of chromate-free treated aluminum foil of 0.06 mm thick bonded by special purpose adhesive with a cell side length 1.87 mm. It is used for high strength composite panel. The performance of the aluminum honeycomb core is determined by the properties of aluminum foil, special purpose chemical adhesive and the size and configuration of the core.

The detailed applications for the High Speed Train is as follow:
• Interior Panels and Partitions
• Furniture
• Ceiling and Flooring Panels
• Hulls and Bulkheads
• Doors

Because of the train travells at a really high speed so the core should maintain a high strength. The spot welding or laser welding should be applied to the bonding technology if specially required.

0.06Mm Foil Aluminum Honeycomb Grid Core Of Small Cell

0.06Mm Foil Aluminum Honeycomb Grid Core Of Small Cell

Process

General process of an aluminum honeycomb core initiated with an aluminum foil roll and surely the foil is specially treated.

The adhesive tapes are printed to the foil surface with the intervals and width pre-determined by the cell size and strength requirement.

The foil paper is cut into required size to be piled up on the stacking table with equipment and man supervision on the adhesive tape positioning.

These stacked loose blocks should be pressed in a heated press to cure the adhesive so that the sheets of foil are bonded together to hardened block.

The aluminum honeycomb block can be cut into slices with the height of the slices tailored to customized requirements.

Finally, no matter it is done in supplier’s plant or at client’s workshop, the honeycomb should be expanded before forming aluminum honeycomb panel.

The following materials are for forming honeycomb cores:

1. Aluminum foil

Regularly, 3003H19/5052H18 aluminum alloy foils after strict surface treatment are used for producing aluminum honeycomb core.

2. Special Purpose Chemical Adhesive

Modified epoxy glue for high temperature cure process can provide not only sufficient bonding strength, but also environmental resistance and high or low temperature resistant properties. The joint strength of aluminum honeycomb core is the keypoint of evaluating the core’s performance. The minimum requirement should be more than 2.0N/mm.

Specification of Aluminum Honeycomb Core:

Item Unit Specification
Cell Size inch 1/8” 3/16” 1/4”
mm 2.6 3.18 3.46 4.33 4.76 5.2 6.35 6.9 8.66
Side Length mm 1.5 1.83 2 2.5 2.75 3 3.7 4 5
Foil Thickness mm 0.03-.05 0.03-.05 0.03- 0.05 0.03-.06 0.03-0.06 0.03-0.08 0.03-0.08 0.03-0.08 0.03-.08
Width mm ≤440 ≤440 ≤440 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤1500 ≤1500 ≤2000 ≤3000 ≤3000 ≤3200 ≤4000 ≤4000 ≤5500
Height mm 1.7~150 1.7~150 1.7~150 3~150 3~150 3~150 3~150 3~150 3~150

Item Unit Specification
Cell Size inch 3/8” 1/2” 3/4” 1”
mm 9.53 10.39 12.7 13.86 17.32 19.05 20.78 25.4
Side Length mm 5.5 6 7.33 8 10 11 12 15
FoilThickness mm 0.03-.08 0.03-0.08 0.03-0.08 0.03-.08 0.03-0.08 0.03-0.08 0.03-0.08 0.03- 0.08
Width mm ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤5700 ≤6000 ≤7500 ≤8000 ≤10000 ≤11000 ≤12000 ≤15000
Height mm 3~150 3~150 3~150 3~150 3~150 3~150 3~150 3~150

Specifications can be customized according to customer’s requirement.

Supply modes of Aluminum Honeycomb Core:

- Unexpanded block

- Unexpanded slice

- Expanded sheet

- Pieces cut to size
