Army Project Bomb Signal Jammer Portable With 30m Jamming Distance
Army Project Bomb Signal Jammer Portable With 30m Jamming Distance
Army Project Bomb Signal Jammer Portable With 30m Jamming Distance
Army Project Bomb Signal Jammer Portable With 30m Jamming Distance
Army Project Bomb Signal Jammer Portable With 30m Jamming Distance
Army Project Bomb Signal Jammer Portable With 30m Jamming Distance
Specifications
Brand Name :
Zhejiang Zhongdeng Electronic Technology
Model Number :
ZD-GR050KSA
Place of Origin :
Jiaxing, Zhejiang, China
Product type :
Portable RCIED jammer
Special for :
South Korea army project
Jamming frequency :
9 bands, 20MHz-6GHz
Jamming distance :
more than 30m
Operational temperature :
-20～+45°C
Description

Portable RCIED Jammer Produced For South Korea Army Project With Jamming Distance More Than 30m

ZD-GR050KSA Portable RCIED Jammer

---- Efficient device to guard against remote-control bombs

1, Product description

ZD-GR050KSA portable RCIED jammer is special designed and produced for South Korea Amry Project. This jammer is used to defend threat of remote control improvised explosive device (RCIED) and prevent it from exploding by remote control. We will strictly follow the requirements to design,manufacture and delivery high quality products. In order to match the army's requirement of jamming distance, this jammer applies advanced jamming technology to achieve large jamming distance more than 30m.

2, Main functions and specifications

NO Items Requirements Remark
1 Working frequency 1 bands: 26~100MHz RC, CB, FM bands
2 bands: 100~500MHz TRS, FRS, VHF,UHF bands
3 bands: 500~1000MHz Wireless MIC bands
4 bands: 863~960MHz

LTE, CDMA, GSM bands:

864～869MHz,925～960MHz
5 bands: 1000~2000Mhz GPS, mobile phone bands
6 bands: 1810~2670MHz

LTE, WCDMA bands:

1805～1880MHz,2110～2170MHz,

2300～2400MHz,2620～2690MHz.
7 bands: 2000-2500MHz Wi-bro, Wi-Fi, RC bands
8 bands: 3400~3700Mhz 5G bands
9 bands: 5150~5850Mhz Wi-Fi bands
2 Jamming technology Digital interference code jamming technology 　

3

RF power(400W)

 43±2dBm@26~100MHz (20W)

Output power at device port
46±2dBm@100～500MHz (40W)
44±2dBm@500～1000MHz(25W)
48±2dBm@864～960MHz(60W)

44±2dBm@1000～2000MHz

(25W)
44±2dBm@2000～2500MHz(25W)
52.3±2dBm@1805～2670MHz (170W)
47±2dBm @3400～3700MHz(50W)
40±2dBm@5150～5850MHz(10W)

4

Jamming range

(radius)

 ≥35m:@transmitter signal strength received at receiver position £70dbm(RSSI)
Mobile phone:≥35m@ base station signal strength received by mobile phone £70dbm(RSSI) Mobile phone bands in Korea
5

Antenna

(9)

 25～100MHz:Omni-directional,1
100～300MHz:Omni-directional,1
300～500MHz:Omni-directional,1
500～1000MHz:Omni-directional,1
860～2700MHz:Omni-directional,2
1000～2500MHz:Omni-directional,1
3300～3800MHz:Omni-directional,1
5100～5900MHz:Omni-directional,1
6 Power supply battery
7 Battery time ≥1 hour@ full load
8 Device weight ≤32Kg Exclude battery and antennas
9 Dimensions 280*492*613mm(include wheel) Exclude handle and buckle
10 Device color Black
11 Proof IP56
12 Operation Humidity ≤95%
13 Operation temperature -20～+45°C
Device functions
1 Main device can be removed and carried on the back.
2

It has visual and acoustic alarm which starts 5 minutes before

battery runs out.
3 It has protecting function of overheat, antenna short circuit and open circuit.
4 Device has IP56 proof level and can operate in rain days. Do not use it in thunderstorm days
5 It has 3 set battery,weight of one battery is 10Kg.
6 It has special box for back-up battery.
7 The special aviation box is equipped with device for transportation, carrying and management. Main device, antenna and cable can be put in the box.
8 Work status, battery level and inside temperature are displayed in the front side of main device. It is easy to see them when main device is on the ground.

  1. , Device include followings

1) Main device: one set (include belt);

2) Battery: 3 (One main battery and two spare batteries,same as specifications)

3) Antennas: one set of Omni-directional antennas(1 set)；

4) Cable (include RF cable,power cable),one set

5) battery charger:1

6) Tool:repair tool,one set

7) Device carry case,one set

8) User manual: 2 English manuals,2 Korean manuals

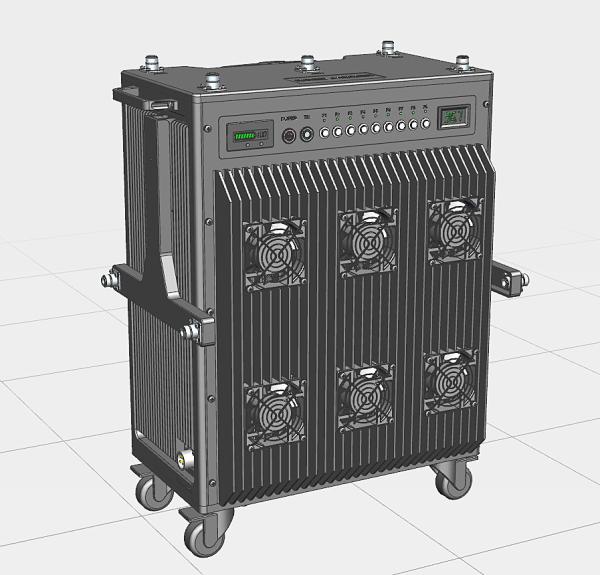

4, Product pictures

Army Project Bomb Signal Jammer Portable With 30m Jamming DistanceArmy Project Bomb Signal Jammer Portable With 30m Jamming DistanceArmy Project Bomb Signal Jammer Portable With 30m Jamming Distance
