High Reliability 5 A Rectangular Connector MIL-DTL-83513 Standard
High Reliability 5 A Rectangular Connector MIL-DTL-83513 Standard
High Reliability 5 A Rectangular Connector MIL-DTL-83513 Standard
High Reliability 5 A Rectangular Connector MIL-DTL-83513 Standard
High Reliability 5 A Rectangular Connector MIL-DTL-83513 Standard
High Reliability 5 A Rectangular Connector MIL-DTL-83513 Standard
Specifications
Brand Name :
SKF
Model Number :
J30J
Place of Origin :
CN
MOQ :
10pcs
Price :
USD/RMB+1-200+PCS
Payment Terms :
T/T
Supply Ability :
5000+PCS+MONTH
Delivery Time :
30
Packaging Details :
stand
Contact Gender :
Male And Female
Termination Style :
solder and crimp
Color :
Military Green, Nickel plating
Shell Material :
Aluminum Alloy
Description

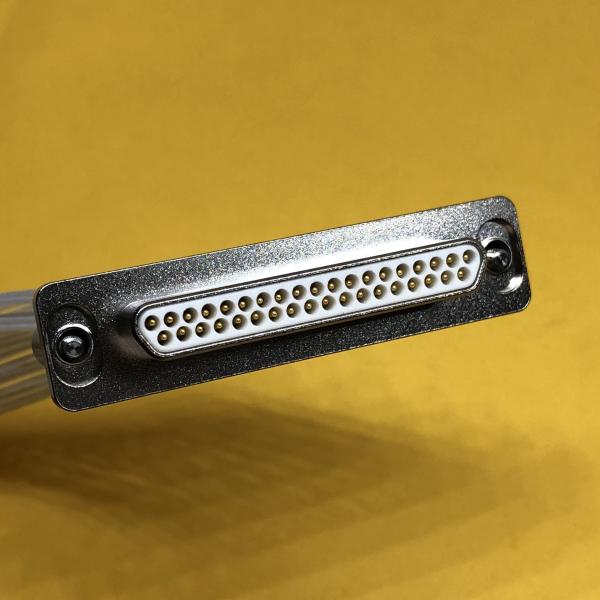

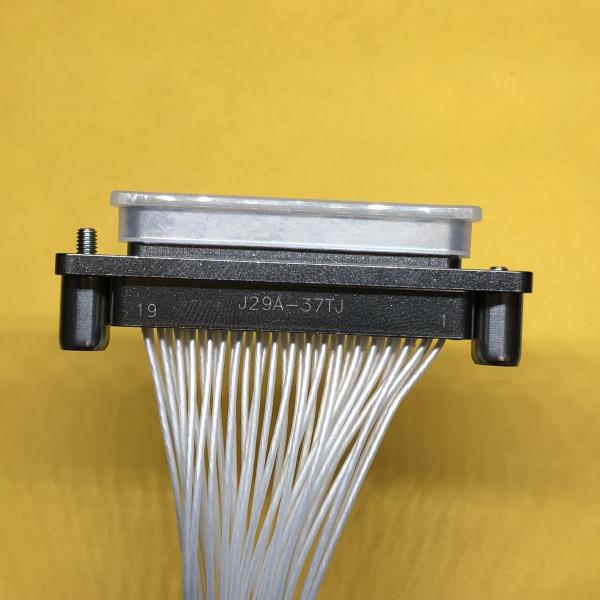

J29A rectangular connector, Cable Mount Connector with wire,meet the MIL-DTL-83513 standard, twist pins contacts

HOW TO ORDER

J29A 9 TJ H P A D
Basic series
Contact number 9, 15, 21, 25, 31, 37, 51, 66
Style
ZK = Receptacle with socket
TJ = Plug with pin
Type of termination
Omit = Crimp
H = Solder
N = Straight PCB
W = 90o
elbow PCB (1.91×2.54)
WI = 90o
elbow PCB (3.82×2.54)
Locking components
L = Unfixed (L, L1, L2, L3, L4)
P = Fixed (P, P1, P2, P3, ……P16)
Type of shell
Omit = Normal
A = Width of flange is same as back shell
A1 = Width of flange is between normal and A
Type of tail cover
D, D1, D2

Brief Introduction:

Temperature: -55 oC ~ +125 oC
Vibration: at 10Hz ~ 2000Hz, acceleration 200 m/s2
Shock: at 1200 m/s2, 6ms
Rated current: 5 A
Contact resistance: ≤ 10 mΩ
Insulation resistance: ≥ 5000 MΩ
Dielectric strength: 1500V DC
Endurance: ≥ 500 cycles

LAYOUT

High Reliability 5 A Rectangular Connector MIL-DTL-83513 Standard
