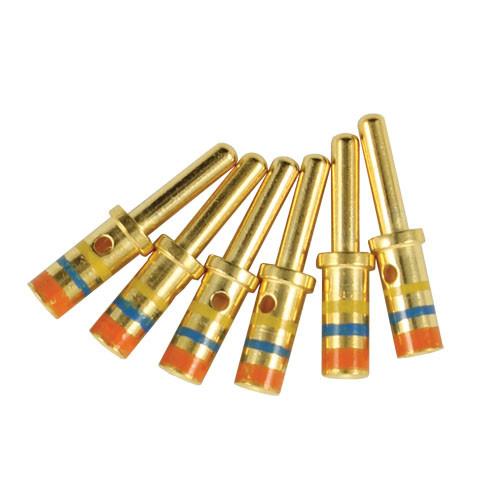

M39029/58-364 Mil Spec Pins Contact Size 16 Suited For Harsh Environments
M39029/58-364 Mil Spec Pins Contact Size 16 Suited For Harsh Environments
Specifications
Model Number :
M39029/58-364
Place of Origin :
cn
MOQ :
1000
Price :
RMB+1-10+PCS
Payment Terms :
T/T
Supply Ability :
1000000+pcs+day
Delivery Time :
1 month
Packaging Details :
standard
MIL Type: :
M39029
Contact Gender: :
PIN (male)
Contact Size: :
16
Wire Gauge: :
16AWG
Part Number :
M39029/58-364
Description

M39029/58-364 PIN contact size 16 Meets MIL-C-24308, MIL-C-38999 Series I, II, III, IV; MIL-C-55302/69, MIL-C-83733,Mating Contact M39029/56, 57

Mil Spec Pin & Socket Contacts Cross Reference Table MIL PIN.pdf

This PIN contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class B rated from temperature range -65C to +200C.

Specifications

· Pin contact size 16

· Gold Plated

· Wire barrel size 16

· BIN code Orange/Blue/Yellow


Features

· Meets MIL-C-24308, MIL-C-38999 Series I, II, III, IV; MIL-C-55302/69, MIL-C-83733

· Mating Contact M39029/56, 57
