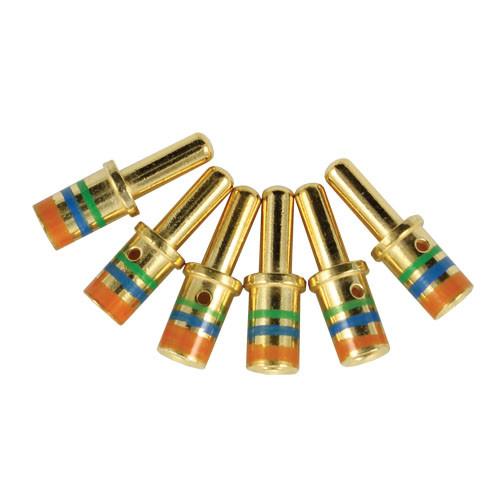

Copper Alloy Electrical Contact Pins , Mil Spec Contacts Size 12
Copper Alloy Electrical Contact Pins , Mil Spec Contacts Size 12
Specifications
Model Number :
M39029/58-365
Place of Origin :
cn
MOQ :
1000
Price :
RMB+1-10+PCS
Payment Terms :
T/T
Supply Ability :
1000000+pcs+day
Delivery Time :
1 month
Packaging Details :
standard
MIL Type: :
M39029
Contact Gender: :
PIN (male)
Contact Size: :
16
Wire Gauge: :
16AWG
Part Number :
M39029/58-365
Description

M39029/58-365 PIN contact size 12 Meets MIL-C-24308, MIL-C-38999 Series I, II, III, IV; MIL-C-55302/69, MIL-C-83733,Mating Contact M39029/56, 57

Mil Spec Pin & Socket Contacts Cross Reference Table MIL PIN.pdf

This PIN contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class B rated from temperature range -65C to +200C.

Specifications

· Pin contact size 12

· Gold Plated

· Wire barrel size 12

· BIN code Orange/Blue/Green


Features

· Meets MIL-C-24308, MIL-C-38999 Series I, II, III, IV; MIL-C-55302/69, MIL-C-83733

· Mating Contact M39029/56, 57
