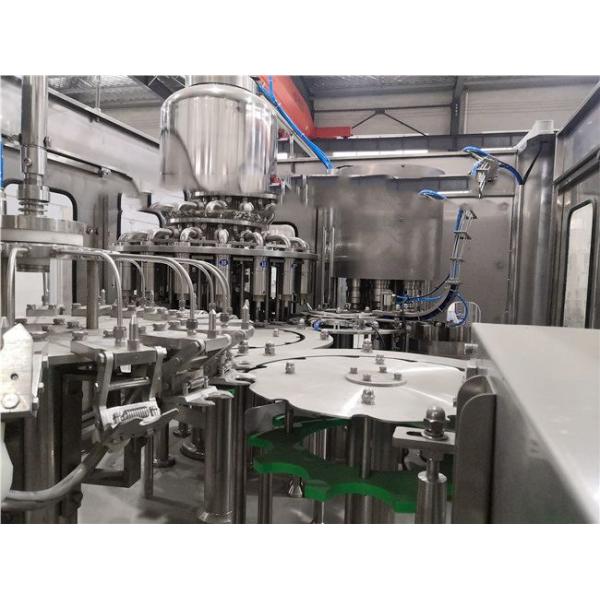

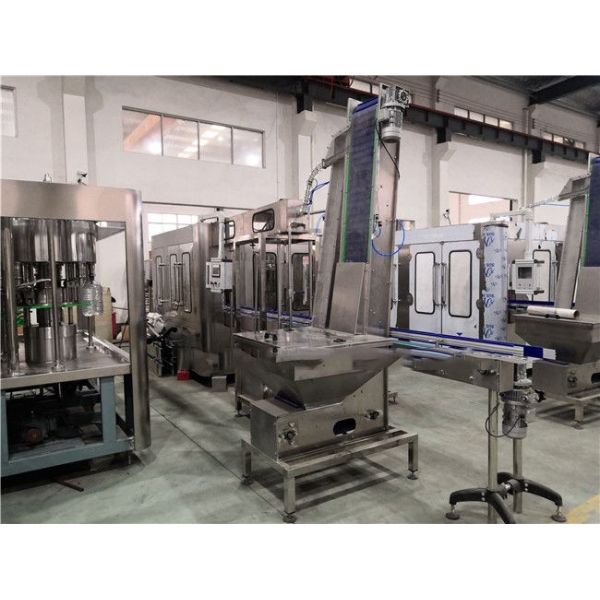

Washing Filling Capping Monoblock 20000 BPH Filling Line
Washing Filling Capping Monoblock 20000 BPH Filling Line
Washing Filling Capping Monoblock 20000 BPH Filling Line
Washing Filling Capping Monoblock 20000 BPH Filling Line
Specifications
Brand Name :
OEM
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Supply Ability :
15 Sets per Month
Delivery Time :
30-45 working days
Packaging Details :
Export Standard Packing
Payment Terms :
T/T, L/C
product name :
Small Scale Milk Filling Machine
function :
washing filling and capping
machine material :
stainless steel SUS304
Power :
380V or customize
filling material :
Milk , juice, flavor drink, water
suitable bottle :
PET bottle, HDPE bottle
Description

Washing Filling Capping Monoblock 20000 BPH Filling Line

1. Capacity:2000-20000bph

2. Bottle size: 200ml-2L PET Bottle
3. Bottle material: Plastic

4. Automatic Rinser, Filler& Capper monobloc filling machine
5. PLC controller- Japanese Mitsubish / Omron International famous brand components

Product Application


Milk Filling Line is a unique design combining the three machines of bottle washing,filling and capping in one to decrease main power, to save space and to diminish the air pollusion among the three machines. It is applicable for mineral water juice, Milk,

flavor drink filled in plastic bottles and capped with plastic caps, with optional capacity from 3000BPH to 20000BPH.It uses frequency changer to control the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.

Technical Parameter

Model:
CGF16-12-6
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
CGF50-50-15
Capacity:
(BPH)
(500ml)
2000-4000
5000-6000
8000-12000
12000-15000
16000-20000
20000-24000
Suitable bottle standard:
(mm)
150-300
150-340
150-340
150-340
150-340
150-340
Suitable cap standard:
(mm)
φ50-φ110
Filling
pressure:
(Mpa)
0.2-0.3
Installed
power:
3.13
3.84
3.84
5.6
6.3
7.3
Filling
temperature:
(℃)
Room Temperature
Dimension
(L*W*H):
(mm)
2400*1670*
2350
2470*1970*
2350
2865*2170*2350
3700*2570*2350
3800*2950*2400
4500*3400*2400
Total weight:(kg)
2500
3000
4000
5000
6000
7000

Washing Filling Capping Monoblock 20000 BPH Filling LineWashing Filling Capping Monoblock 20000 BPH Filling Line
