Automotive aluminium plate. AA5XXX/ 6XXX
Automotive aluminium plate. AA5XXX/ 6XXX
Automotive aluminium plate. AA5XXX/ 6XXX
Automotive aluminium plate. AA5XXX/ 6XXX
Automotive aluminium plate. AA5XXX/ 6XXX
Automotive aluminium plate. AA5XXX/ 6XXX
Automotive aluminium plate. AA5XXX/ 6XXX
Automotive aluminium plate. AA5XXX/ 6XXX
Specifications
Brand Name :
GBS
Model Number :
GBS-ZHB
Certification :
ISO
Place of Origin :
CHINA
MOQ :
15
Payment Terms :
L/C, D/P, T/T
Delivery Time :
5-7 weeks
Packaging Details :
standard export packing
Alloy :
AA5XXX/6XXX
finish :
Mill finish, Bright finish, paper interleaved, one side film, both sides film.
thickness :
6.0mm--300mm
temper :
F and O H111, H112, T4, T6 (For 6061, 6063), T651(Stretched plate)
width :
2700mm
Application :
AUTOMIBLE
Description

Automotive aluminium plate


Alloy:5083-O, 5182-O, 5754-O, 6014 T6, 6022 T6, 6063 T6, 6111 T4, 6016 T4, 7075 T6, T651.

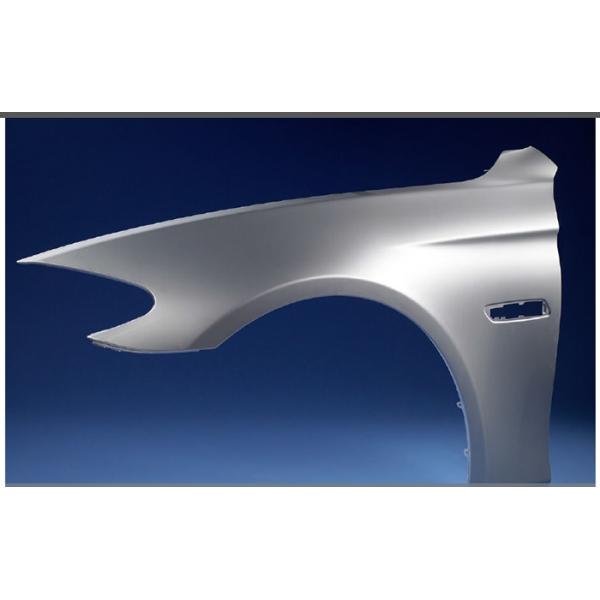

Application: public transportations. passenger cars,

Advantage :higher strength-to-weight ratio, higher fuel efficiency, and better formability



Automotive aluminium plate. AA5XXX/ 6XXX


Classic alloy: 5182, 5083, 6016, 6011, 6N12, 6014, 6181A, 6009, 6005A, 6061, 6082

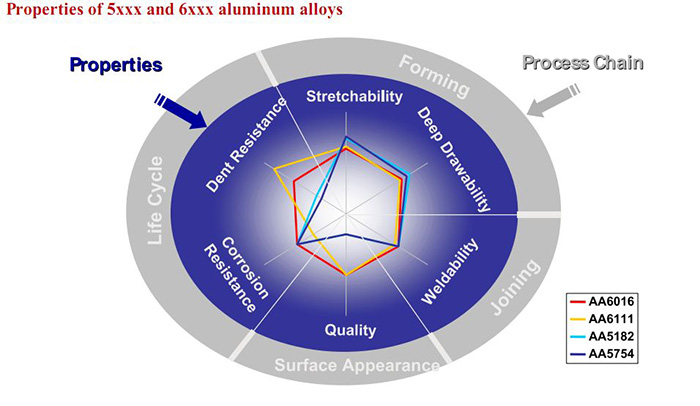

Product character: good weldability, good formability, superb bake hardening ability.

Specifications
Alloys (AA) Temper Thickness range (mm) Length range (mm) Width range (mm)

5182, 5083, 6016, 6011, 6N12, 6014, 6181A, 6009, 6005A, 6061, 6082		 F and O
H111, H112, T4, T6 (For 6061, 6063), T651(Stretched plate)		 6 — 300 1000 — 10000 500 — 2700



Automotive aluminium plate. AA5XXX/ 6XXX

Stretched
aluminium plate
Thickness limit 6 — 70 mm
Length limit 2000 — 10000 mm

Chemical composition
Alloy (%) 5182 5083 6181A 6005A 6061 6082
Si 0.20 0.40 0.8~1.2 0.50~0.9 0.40— 0.80 0.7~1.3
Fe 0.35 0.40 0.45 0.35 0.70 0.50
Cu 0.15 0.10 0.10 0.30 0.15— 0.40 0.10
Mn 0.20~0.50 0.40— 1.0 0.15 0.50 0.15 0.40~1.0
Mg 4.0~5.0 4.0— 4.9 0.6~1.0 0.40~0.7 0.8— 1.2 0.6~1.2
Cr 0.10 0.05— 0.25 0.10 0.30 0.04— 0.35 0.25
Ni — — — — — —
Zn 0.25 0.25 0.20 0.20 0.25 0.20
Ti 0.10 0.15 0.10 0.10 0.15 0.10
Each (Others) 0.05 0.05 0.05 0.05 0.05 0.05
Total (Others) 0.15 0.10 0.10 0.15 0.15 0.15
Al Remaining Remaining Remaining Remaining Remaining Remaining
Single number indicates maximum content.

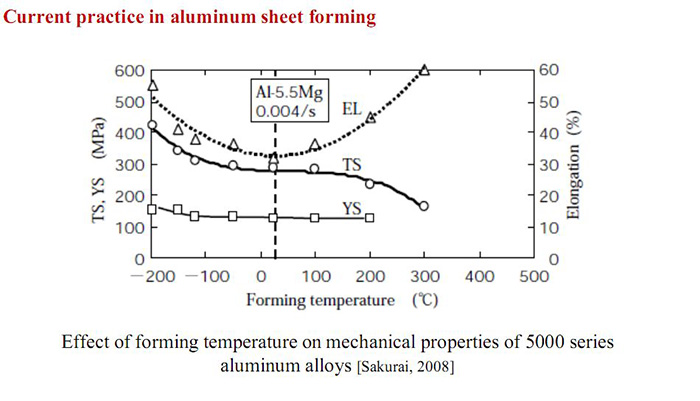

Current Practice in aluminium plate Forming
* Cold forming-- forming at room temperature
* Warm forming-- forming at elevated temperature (<350℃)
The formability of aluminum alloys increases with increasing temperature and decreasing strain rate.
The blank( and sometimes the dies) should be heated.
More complex tools are required and insulation is necessary if the dies are heated.
Cycle time is longer than cold forming due to heating process.
Lubricants that perform well at elevated temperatures should be used.
Springback is reduced.

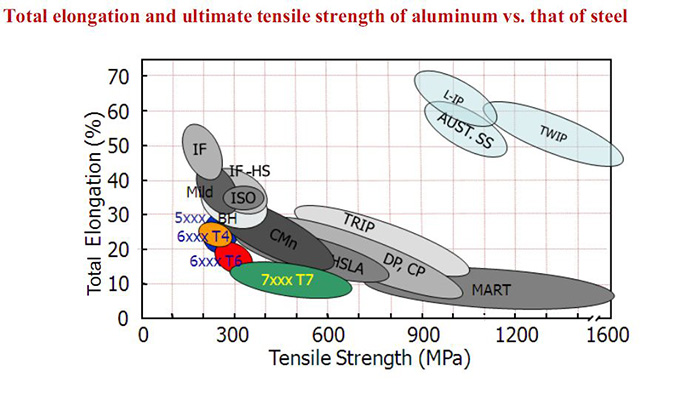

Density, Elastic modulus and anisotropy of aluminum vs. That of steel
* The density of aluminum(2.7g/cm3) is one third of steel(7.85g/cm3), Thus, weight can be reduced.
* Elastic modulus of aluminum(70 Gpa) is one third of steel (210Gpa). As a result, the parts previously designed for steel need to be redesigned to achieve the same stiffness.

Material Steel Aluminum
Mild 140/270 HSLA
350/450		 DP 500/800 MS 1250/1520 5754-O 6060 T6 7021 T6
UTS(Mpa) 270 450 800 1520 130 245 430


* Smaller elastic modulus also results in more springback compensation(assuming the strengths are the same).
* Anisotropy values are lower than steel.


Automotive aluminium plate. AA5XXX/ 6XXX
Automotive aluminium plate. AA5XXX/ 6XXX
