Extruded Aluminum strip , Max Lendth 28000 Meters,AA1060/1070, for fins
Extruded Aluminum strip , Max Lendth 28000 Meters,AA1060/1070, for fins
Extruded Aluminum strip , Max Lendth 28000 Meters,AA1060/1070, for fins
Extruded Aluminum strip , Max Lendth 28000 Meters,AA1060/1070, for fins
Extruded Aluminum strip , Max Lendth 28000 Meters,AA1060/1070, for fins
Extruded Aluminum strip , Max Lendth 28000 Meters,AA1060/1070, for fins
Extruded Aluminum strip , Max Lendth 28000 Meters,AA1060/1070, for fins
Extruded Aluminum strip , Max Lendth 28000 Meters,AA1060/1070, for fins
Extruded Aluminum strip , Max Lendth 28000 Meters,AA1060/1070, for fins
Extruded Aluminum strip , Max Lendth 28000 Meters,AA1060/1070, for fins
Specifications
Brand Name :
GBS
Model Number :
GBS-JYBDE
Certification :
ISO
Place of Origin :
CHINA
MOQ :
12mts
Payment Terms :
L/C, D/P, T/T
Supply Ability :
1200mts
Delivery Time :
4-5 weeks
Packaging Details :
export wooden box
Processing :
extruded
surface :
mill finish
material :
AA1060/1070
Packing :
wooden box
max. length :
28000meters
thickness :
0.25--3mmmm
width :
18-50mm
application :
for fins of water power rediators, heat exchangers, etc
Description

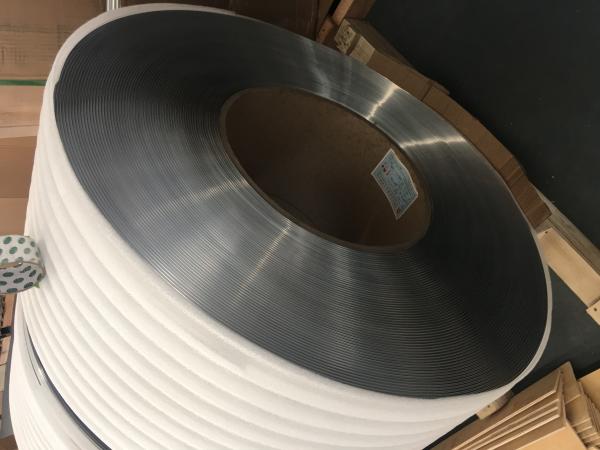

Aluminium extruded thin gauge strip for fins in radiator,colling machine

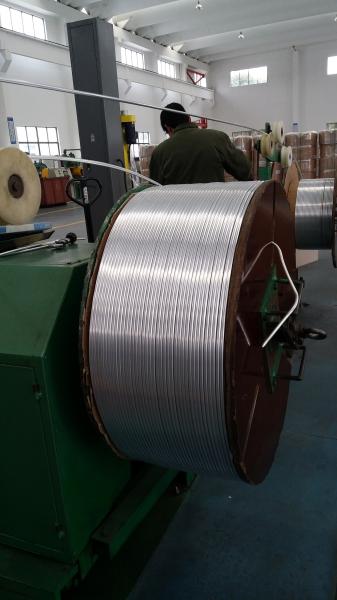

GBS are equipped with specially designed 2 aluminium rod extruded machines, which are able to extrude aluminium strip in quality products.aluminium rod passed into our patented designed die and extrusion press, the strip are extruded from here and the quality in thickness even and flatness , max. length can be 28000meters.

currently, our 2 extrusion lines are continously producing high quality strip and supplied to our cliens in middle east ,where our strips are widely used to produce fins in teh field of water power station, dersert vegetable colling machines, oil field

TYPICAL THICKNESS: 0.38--0.80mm, width: min.18mm, max. 100mm,

strip max. lendth: max. 28000meter

CHEMICAL COMPOSITION(%)
ELEMENTS Si Fe Cu Mn Mg Zn Ti SINGLE Al
STANDARD ≤0.95 0.05～0.20 ≤0.05 - ≤0.10 - ≤0.05 ≥99.00
ACTUAL 0.062 0.161 0.096 0.002 0.0001 0.009 0.002 ≤0.02 99.63
TOLERANCE PHYSICAL PROPERTIES
NAME WIDTH(mm) THICKNESS(mm) TENSILE STRENGTH(Mpa) YIELD STRENGTH(Mpa) ELOGATION(%)
STANDARD 18-60mm 0.20--2.0mm 72.4～89 24.3～44.8 ≥25
ACTUAL 16--80mm 0.18-4.0mm 74.3 39.9 30

TYPICAL mill certificate:

COMMODITY: ALUMINIUM EXTRUDED STRIP

SIZE: 18.1MM x 0.38MM

ALLOY/TEMPER: AA1060/O

LOT NO. ACTUAL MECHANICAL PROPERTY CHEMICAL COMPOSITION (%)
SPECIFICATION(MM)

TENSILE STRENGTH

(MPA)

 ELONGATION (%) Si Fe Cu Mn MG Zn Ti single AL
20160402 18.1MM±0.1 x 0.38MM±0.038 ≥69 38 0.063 0.14 0.007 0.009 0.001 0.008 0.014 <0.03 99.73

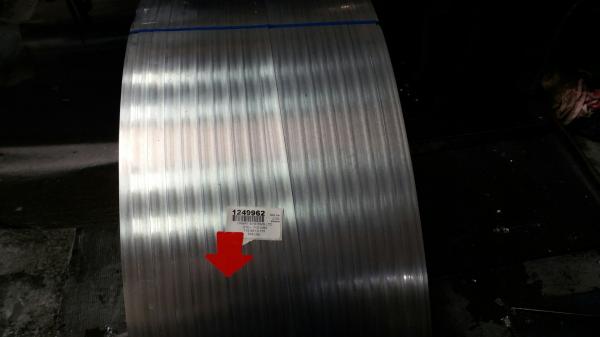

PACKING: WOODEN BOX
