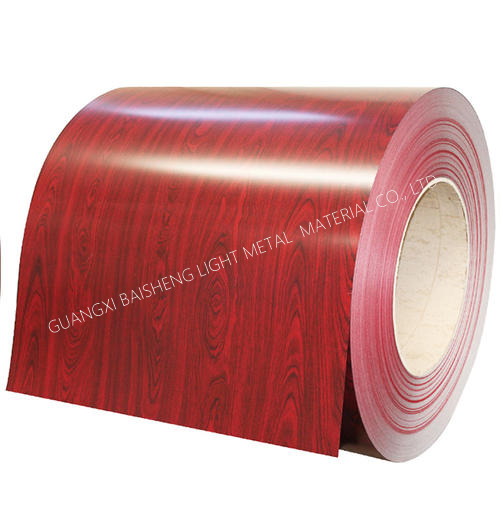

Color Coated Aluminum foils for lamination, PU compatiable,
Color Coated Aluminum foils for lamination, PU compatiable,
Color Coated Aluminum foils for lamination, PU compatiable,
Color Coated Aluminum foils for lamination, PU compatiable,
Color Coated Aluminum foils for lamination, PU compatiable,
Color Coated Aluminum foils for lamination, PU compatiable,
Color Coated Aluminum foils for lamination, PU compatiable,
Color Coated Aluminum foils for lamination, PU compatiable,
Color Coated Aluminum foils for lamination, PU compatiable,
Color Coated Aluminum foils for lamination, PU compatiable,
Specifications
Brand Name :
GBS
Model Number :
GBS-CLJ
Certification :
ISO
Place of Origin :
CHINA
MOQ :
6mts
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
800mts per month
Delivery Time :
5-8weeks
Packaging Details :
standard exporting wooden pallets
material :
AA1100/1060/8011/8006
temper :
H22/14/24/34/36/38
Surface :
color c
packing :
wooden pallets
Thickness :
0.04mm--0.2mm
Description

Aluminium color coated coils

GBS have 2 thin-gauge aluminium color coating lines and 2 aluminium think gauge color coating lines, for thin gauge lines,

base material gauge ranging from 0.018mm up to 0.2mm, for think gauge lines, base material thickness ranging from 0.20mm--1.5mm

1. Specification

Alloy: A1100, A3003, A3004, A5005, A8011 etc.
Temper H14, H16, H18, H24 etc.
Alu Thickness From 0.04mm to 0.20mmmm
Alu.Width From 50mm to 1520mm
Color Customized, you can choose from our color chart, or we adjust the special color as the samples you offer.
Coating PE coating, PVDF coating, Back coating
Coating thickness: 10mic for PE coating, 20mic for PVDF coating

2. Characteristic
High gloss, High flexibility , Impact resistance, Excellent weather-proof durability , Anti-ultraviolet , High erosion resistance,. Stable color and gloss , Good mechanical processing performance, Abrasion resistance

3. Technical information

Item Test Item

National standard

Test Result
1 Color Difference ΔE≤2.0 ΔE≤1.5
2 Gloss Difference ≤10 ≤5
3 Coating Thickness Two layers Min 23μm ≥25μm
4 Pencil Hardness ≥HB ≥HB
5 T-bend ≤2T ≤2T
6 Adhesion Grade 0 Grade 0
7 Impact ≥50kg.cm ≥50kg.cm
8 Boiling water Resistance 2h No change 4h No change
9 Solvent Resistance 200 times paints remaining 500 times paints remaining
10 Acidity Resistance 5%HCL 24hrs No change No Change
11 Alkali Resistance

5%NaOH 24hrs No

change color ΔE≤2.0

 No Change
12 Nitric acid Resistance ΔE≤5.0 ΔE≤5.0
13 Oil Resistance 20Φ oil 24hrs No change No Change
14 Salt Spray Resistance 4000hrs ≤Grade 1 No Change
15 Abrasion resistance ≥5L/μm ≥5L/μm
16 Dirt Resistance ≤5% ≤5%
17 Color retaining 4000 hrs ΔE≤4.0 4000 hrs ΔE≤3.0
18 Gloss weaken Level 4000 hrs ≤ Grade 2 4000 hrs ≤ Grade 2
19 MEK 4000 hrs No change 4000 hrs No change

Applications

1. Raw materials of aluminum ceiling, aluminum composite panel, aluminum sheet.

2. Mterials of aluminum signs, advertisement board

3. Roofs,gutter, wall cladding.

4. Package materials, flip off seals
