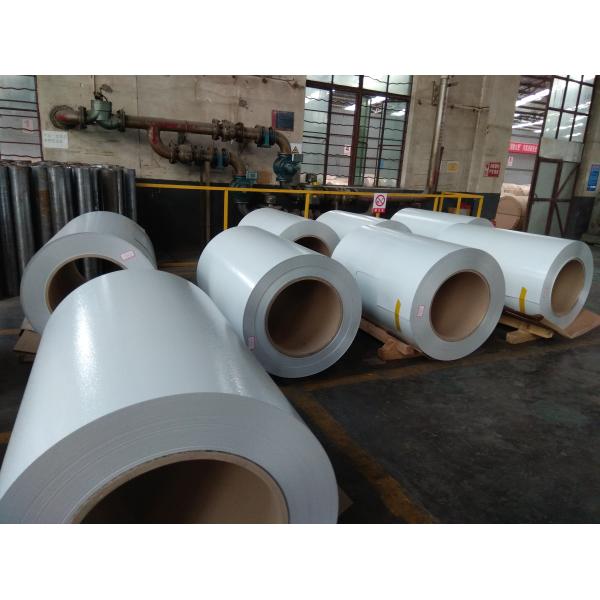

Painted Aluminium Coil For Underwater System,gutters,etc
Painted Aluminium Coil For Underwater System,gutters,etc
Painted Aluminium Coil For Underwater System,gutters,etc
Painted Aluminium Coil For Underwater System,gutters,etc
Painted Aluminium Coil For Underwater System,gutters,etc
Painted Aluminium Coil For Underwater System,gutters,etc
Painted Aluminium Coil For Underwater System,gutters,etc
Painted Aluminium Coil For Underwater System,gutters,etc
Specifications
Brand Name :
GBS
Model Number :
GBS-CLJT
Certification :
ISO
Place of Origin :
CHINA
MOQ :
6mts
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
800mts per month
Delivery Time :
4-5weeks
Packaging Details :
standard exporting wooden pallets
material :
AA3003/3105
temper :
H22/14/24/34/36/38
Surface :
color coated
packing :
wooden pallets
Thickness :
0.45mm--1.2mm
Application :
Underwater systems
Description

Aluminium prepainted coils for underwater syatems

GBS have 1 heavy-gauge aluminium color coating lines for underwater system, gutters, rain-precetction wall.elbows,water pipes,etc

Coating color aluminum coil

1. Specification

Alloy: A3003, A3105, etc.
Temper H14, H16, H18, H24 etc.
Alu Thickness From 0.45mm to 1.2mm
Alu.Width From 110mm to 1700mm
Color Customized, you can choose from our color chart, or we adjust the special color as the samples you offer.
Coating PE coating, PVDF coating, Back coating
Coating thickness: 19mic--32mic

2. Characteristic
High gloss, High flexibility , Impact resistance, Excellent weather-proof durability , Anti-ultraviolet , High erosion

resistance,.

Stable color and gloss , Good mechanical processing performance, Abrasion resistance

3. Technical information

Item Test Item

National standard

Test Result
1 Color Difference ΔE≤2.0 ΔE≤1.5
2 Gloss Difference ≤10 ≤5
3 Coating Thickness Two layers Min 23μm ≥25μm
4 Pencil Hardness ≥HB ≥HB
5 T-bend ≤2T ≤2T
6 Adhesion Grade 0 Grade 0
7 Impact ≥50kg.cm ≥50kg.cm
8 Boiling water Resistance 2h No change 4h No change
9 Solvent Resistance 200 times paints remaining 500 times paints remaining
10 Acidity Resistance 5%HCL 24hrs No change No Change
11 Alkali Resistance

5%NaOH 24hrs No

change color ΔE≤2.0

 No Change
12 Nitric acid Resistance ΔE≤5.0 ΔE≤5.0
13 Oil Resistance 20Φ oil 24hrs No change No Change
14 Salt Spray Resistance 4000hrs ≤Grade 1 No Change
15 Abrasion resistance ≥5L/μm ≥5L/μm
16 Dirt Resistance ≤5% ≤5%
17 Color retaining 4000 hrs ΔE≤4.0 4000 hrs ΔE≤3.0
18 Gloss weaken Level 4000 hrs ≤ Grade 2 4000 hrs ≤ Grade 2
19 MEK 4000 hrs No change 4000 hrs No change

4. Applications

Raw materials of aluminum ceiling,

Mterials of aluminum signs, advertisement board

underwater system, gutter, Roofs, wall cladding.

Package materials, flip off seals

Painted Aluminium Coil For Underwater System,gutters,etc
