colour coated Aluminum Roof Coil Sheets thickness 0.20mm-1.5mm
colour coated Aluminum Roof Coil Sheets thickness 0.20mm-1.5mm
colour coated Aluminum Roof Coil Sheets thickness 0.20mm-1.5mm
colour coated Aluminum Roof Coil Sheets thickness 0.20mm-1.5mm
colour coated Aluminum Roof Coil Sheets thickness 0.20mm-1.5mm
colour coated Aluminum Roof Coil Sheets thickness 0.20mm-1.5mm
colour coated Aluminum Roof Coil Sheets thickness 0.20mm-1.5mm
colour coated Aluminum Roof Coil Sheets thickness 0.20mm-1.5mm
Specifications
Brand Name :
GBS
Model Number :
GBS-CLJT
Certification :
ISO
Place of Origin :
CHINA
MOQ :
6mts
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
800mts per month
Delivery Time :
4-5weeks
Packaging Details :
standard exporting wooden pallets
material :
non-alloy
temper :
H22/14/24/34/36/38
Surface :
color coated
packing :
wooden pallets
Thickness :
0.2mm--2.0mm
Description

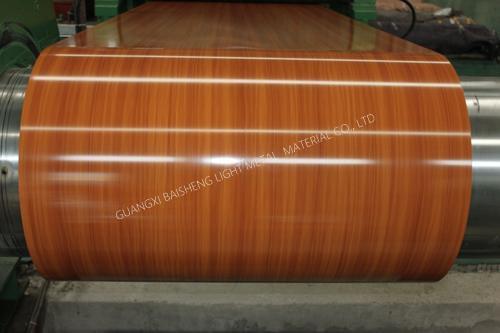

Aluminium color coated coils

GBS have 4 thin-gauge aluminium color coating lines and 2 aluminium think gauge color coating lines, for

thin gauge lines,

base material gauge ranging from 0.018mm up to 0.2mm, for think gauge lines, base material thickness ranging

from 0.20mm--1.5mm

Coating color aluminum coil

1. Specification

Alloy: A1100, A3003, A3004, A5005, A8011 etc.
Temper H14, H16, H18, H24 etc.
Alu Thickness From 0.2mm to 1.5mm
Alu.Width From 50mm to 1520mm
Color Customized, you can choose from our color chart, or we adjust the special color as the samples you offer.
Coating PE coating, PVDF coating, Back coating
Coating thickness: 0.018mm for PE coating, 0.025mm for PVDF coating

2. Characteristic
High gloss, High flexibility , Impact resistance, Excellent weather-proof durability , Anti-ultraviolet , High erosion

resistance,.

Stable color and gloss , Good mechanical processing performance, Abrasion resistance

3. Technical information

Item Test Item

National standard

Test Result
1 Color Difference ΔE≤2.0 ΔE≤1.5
2 Gloss Difference ≤10 ≤5
3 Coating Thickness Two layers Min 23μm ≥25μm
4 Pencil Hardness ≥HB ≥HB
5 T-bend ≤2T ≤2T
6 Adhesion Grade 0 Grade 0
7 Impact ≥50kg.cm ≥50kg.cm
8 Boiling water Resistance 2h No change 4h No change
9 Solvent Resistance 200 times paints remaining 500 times paints remaining
10 Acidity Resistance 5%HCL 24hrs No change No Change
11 Alkali Resistance

5%NaOH 24hrs No

change color ΔE≤2.0

 No Change
12 Nitric acid Resistance ΔE≤5.0 ΔE≤5.0
13 Oil Resistance 20Φ oil 24hrs No change No Change
14 Salt Spray Resistance 4000hrs ≤Grade 1 No Change
15 Abrasion resistance ≥5L/μm ≥5L/μm
16 Dirt Resistance ≤5% ≤5%
17 Color retaining 4000 hrs ΔE≤4.0 4000 hrs ΔE≤3.0
18 Gloss weaken Level 4000 hrs ≤ Grade 2 4000 hrs ≤ Grade 2
19 MEK 4000 hrs No change 4000 hrs No change

4. Applications

1. Raw materials of aluminum ceiling, aluminum composite panel, aluminum sheet.

2. Mterials of aluminum signs, advertisement board

3. Roofs, wall cladding.

4. Package materials, flip off seals
