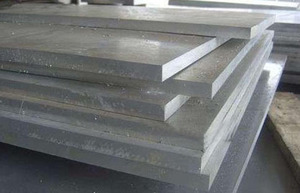

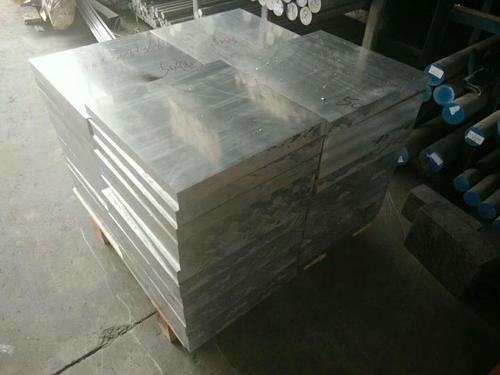

aluminium small cutting plate ,aluminium saw plate, AA5052/5083
aluminium small cutting plate ,aluminium saw plate, AA5052/5083
aluminium small cutting plate ,aluminium saw plate, AA5052/5083
aluminium small cutting plate ,aluminium saw plate, AA5052/5083
aluminium small cutting plate ,aluminium saw plate, AA5052/5083
aluminium small cutting plate ,aluminium saw plate, AA5052/5083
aluminium small cutting plate ,aluminium saw plate, AA5052/5083
aluminium small cutting plate ,aluminium saw plate, AA5052/5083
Specifications
Brand Name :
GBS
Model Number :
GBS-AQPT
Certification :
ISO
Place of Origin :
CHINA
MOQ :
15
Payment Terms :
L/C, D/P, T/T
Delivery Time :
7-8 weeks
Packaging Details :
standard export packing
ALLOY :
AA5052,AA5083
finish :
mill finish
application :
Low pressure and rapid tooling Vacuum chamber, ,Manufacturing device of semi-conductor ♦ Industrial robot ♦ Vacuum chamber Mechanical equipment and accessories etc.
thickness :
6-1000mm
Length :
2670
type :
saw plate
Description

AA5052 ALUMINIUM PRECISION SAW PLATE

aluminium small cutting plate ,aluminium saw plate, AA5052/5083 aluminium small cutting plate ,aluminium saw plate, AA5052/5083

standard: GB/T3190 or EN573-3

Material Attributes

Evaluation

Dimensional Stability

Good

Machinability

Very Good

Erodability

Very Good

Weldability (TIG/MIG/ERW/EBW)

Good/Good/Good/Very Good

Corrosion Resistance ( Stress cracking/Seawater/Weather)

Normal/Good/Very good

Highest Use Temperature ( Long term/Occasional)

100/180X；

Oxidability (Technical/Decorative I

Good/Not application

Polishing

Very good

Food contact

Good

’Evaluation rate from very good to not application (very good / good / normal / poor / not application).

Typical Mechanical Properties

Ultimate Tensile Strength MPa (N/mm2) 160-220
Yield Strength MPa (N/mm2) 60-90
Elongation As% 20-30
Brinell Hardness HB 45-60

Typical physical Properties

Density g/cm3 2.68
Thermal Conductivity W/(mk) 130-150
Electrical Conductivity m/Qmm2 19-21
Modulus of Elasticity GPa 70
Coefficient of Thermal Expansion 10 23.8

Category Torelance

Thickness 6mm-450mm Tickness Torelance 0/+1 mm (Tw 250mm)
0/+3 mm (T>250mm)
Sawn Plate Max.Width 2670mm Width Tolerance 0/+10 mm
Max. Length 6000mm Lenghth Tolerance 0/+10 mm
Roughness w30pm
Sawed Block (TxWxL)

450 x 2670 x 6000mm

( Max.Width )

450x 1750 x 6000mm

( Max.Tickness )

 Running Stock (WxL)

1470 x 3000mm

2500 x 3000mm

*Other size on request.

Typical Applications

♦ Low pressure and rapid tooling

♦ Manufacturing device of semi-conductor

♦ Industrial robot

♦ Vacuum chamber

Mechanical equipment and accessories etc.

AA5083 ALUMINIUM PRECISION SAW PLATE

ASP 5083 - ALUMINIUM PRECISION SAWN PLATE

Alloy: 5083 (Meet the standard: GB/T3190 or EN573-3)

aluminium small cutting plate ,aluminium saw plate, AA5052/5083 aluminium small cutting plate ,aluminium saw plate, AA5052/5083

Material Attributes Evaluation

Dimensional Stability

Machinability

Erodability

Weldability (TIG/MIG/ERW/EBW)

Corrosion Resistance ( Stress cracking/Seawater/Weather)

Highest Use Temperature ( Long ternrVOccasional)

Oxidability (Technical/Decorative )

Polishing

Food Contact

Good

Very Good

Very Good

Good/Good/Good/Very Good

Normal/Good/Very good 100/180^

Good/Not application

Very good

Good

^Evaluation rate from very good to not application (very good / good I normal / poor/ not application).

Typical Mechanical Properties

Ultimate Tensile Strength MPa (N/mm2) 220-300
Yield Strength MPa (N/mm2) 110-140
Elongation A5% 10-20
Brinell Hardness HB 70-85

Typical physical Properties

Density g/cm3 2.66
Thermal Conductivity W/(mk) 110-140
Electrical Conductivity nV Q mm2 16-19
Modulus of Elasticity GPa 70
Coefficient of Thermal Expansion M0-6/K 24.2

Category Torelance

Tickness 6mm-450mm Tickness Torelance 0/+1 mm (Tw 250mm)
0/+3 mm (T>250mm)
Sawn Plate Max.Width 2670mm Tickness Torelance 0/+10 mm
Max. Length 6000mm Lenghth Tolerance 0/+10 mm
Roughness W30" m
Sawn Block (TxWxL)

450 x 2670 x 6000mm

( Max.Width )

450x 1750 x 6000mm

( Max.Tickness )

 Running Stock (WxL)

1470 x 3000mm

2500 x 3000mm

Other size on request.

Typical Applications

♦ Low pressure and rapid tooling

♦ Manufacturing device of semi-conductor

♦ Industrial robot

♦ Vacuum chamber

Mechanical equipment and accessories etc.
