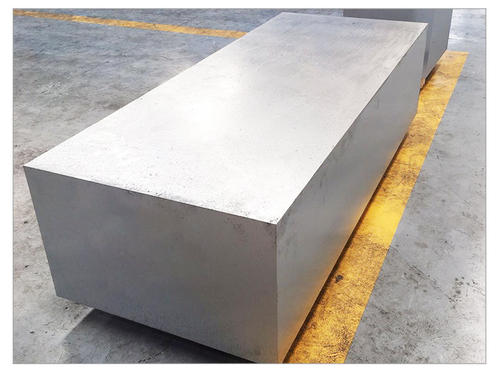

AA5052 ALUMINIUM PRECISION MILLED PLATE . Width 2500 Max Length 6000 Mm
AA5052 ALUMINIUM PRECISION MILLED PLATE . Width 2500 Max Length 6000 Mm
AA5052 ALUMINIUM PRECISION MILLED PLATE . Width 2500 Max Length 6000 Mm
AA5052 ALUMINIUM PRECISION MILLED PLATE . Width 2500 Max Length 6000 Mm
AA5052 ALUMINIUM PRECISION MILLED PLATE . Width 2500 Max Length 6000 Mm
AA5052 ALUMINIUM PRECISION MILLED PLATE . Width 2500 Max Length 6000 Mm
AA5052 ALUMINIUM PRECISION MILLED PLATE . Width 2500 Max Length 6000 Mm
AA5052 ALUMINIUM PRECISION MILLED PLATE . Width 2500 Max Length 6000 Mm
Specifications
Brand Name :
GBS
Model Number :
GBS-AQPM
Certification :
ISO
Place of Origin :
CHINA
MOQ :
15
Payment Terms :
L/C, D/P, T/T
Delivery Time :
7-8 weeks
Packaging Details :
standard export packing
ALLOY :
AA5083
finish :
miled
application :
Tooling and fixtur,Various moulds,Manufacturing device of solar panel.
thickness :
6-250mm
width :
2500
type :
plate
Description

AA5052 ALUMINIUM PRECISION MILLED PLATE

AA5052 ALUMINIUM PRECISION MILLED PLATE . Width 2500 Max Length 6000 Mm AA5052 ALUMINIUM PRECISION MILLED PLATE . Width 2500 Max Length 6000 Mm

Alloy: 5053

Standard:Meet the standard: GB/T3190 or EN573-3

Surface: Milled plate

Material Attributes

Material Attributes Evaluation
Dimensional Stability Very Good
Machinability Very Good
Erodability Very Good
Weldability (TIG/MIG/ERW/EBW) Good/Good/Good/Very Good
Corrosion Resistance ( Stress cracking/Seawater/Weather} Normal/Good/Very good
Highest Use Temperature ( Long term/Occasional) 100/180T；
Oxidability (Technical/Decorative) Good/Not application
Polishing Very good
Food Contact Good

Evaluation rate from very good to not application (very good / good / normal / poor/ not application).

Typical Mechanical Properties

Ultimate Tensile Strength MPa (N/mm2) 220-300
Yield Strength MPa (N/mm2) 110-140
Elongation As% 10-20
Brinell Hardness HB 70-85

Typical physical Properties

Density g/cm3 2.66
Thermal Conductivity W/(mk) 110-140
Electrical Conductivity m/Qmm2 16-19
Modulus of Elasticity GPa 70
Coefficient of Thermal Expansion *10-6/K 24.2

Tolerance

Category Torelance
Tickness 6 mm - 250 mm Tickness Torelance ±0.12mm
Max.Width 2500mm Width Tolerance 0/+6 mm
Milled Plate Max.Length 6000 mm Lenghth Tolerance 0/+10 mm
Running Stock (WxL)

1470 x 3000mm

2500 x 3000mm

 Flatness w 0.35 mm/m (T w 15mm) W0.13 mm/m (T>15mm)
Roughness w0,4u m
*Other size on request

Typical Applications

♦ Manufacturing device of semi-conductor

♦ Manufacturing device of liquid crystal

♦ Manufacturing device of solar panel

♦ Automation equipment panel

♦ Various moulds

♦ Tooling and fixture
