Aluminum precision milled plate (AA5083,5052)
Aluminum precision milled plate (AA5083,5052)
Aluminum precision milled plate (AA5083,5052)
Aluminum precision milled plate (AA5083,5052)
Aluminum precision milled plate (AA5083,5052)
Aluminum precision milled plate (AA5083,5052)
Specifications
Brand Name :
GBS
Model Number :
GBS-ZHX
Certification :
ISO
Place of Origin :
CHINA
MOQ :
15
Payment Terms :
L/C, D/P, T/T
Delivery Time :
5-7 weeks
Packaging Details :
standard export packing
Alloy :
AA5052/5083
finish :
Miled
application :
Machine components
thickness :
6MM-250MM
width :
max.2500mm
Description

Aluminum precision milled plate (5083,5052)


1.alloy: 5052/5083

2,Surface: miled

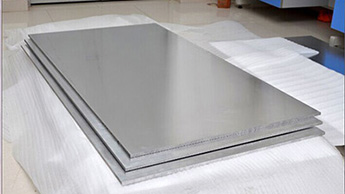

Aluminum precision milled plate (AA5083,5052) Aluminum precision milled plate (AA5083,5052)


Detal specification

1, AA5083-Aluminum Precision Milled Plate

(1)Product Description

Specific Notes:

* two surfaces precision milled

* excellent flatness

* stress relieved

* elevated strength

* very homogeneous

* very good corrosion resistance

(2)Typical Fields of Applications

* components requiring a lot of machining

* all kinds of side and back boards

* all kinds of base and table plates

* transfer- and indexing plates

* components requiring high strength values combined with very low residual stresses

* all kind of gauges

* displays for screens

(3)Technical data sheet

Alloy´s Characteristics
Alloy AMP5083
Type of Alloy non heat treatable
Temper homogenized and stress relieved
Surface two surfaces precision milled, roughness ≤Ra 0.4 µm, foiled on both sides
Mechanical Properties Typical values
Yield strength Rp0,2 [MPa] 110 – 140
Ultimate tensile strength Rm [MPa] 220 – 300
Elongation A5 [%] 10 – 20
Hardness HBW [HB] 70 – 85
Physical Properties Typical values
Density [g/cm³] 2.66
Module of elasticity [GPa] 70
Electrical conductivity [m/Ω · mm²] 16 – 19
Coefficient of thermal expansion [K-1 · 10-6] 24.2
Thermal conductivity [W/m · K] 110 – 140
Processing Characteristics
Dimensional stability Very Good
Machinability Very Good
Erodability Very Good
Weldability (/ TIG / MIG / ERW/EBW) Good/ Good/ Good/Very Good
Corrosion resistance ( stress cracking/seawater / weather) Normal/ Good/Very Good
Highest Use temperatures ( long term/Occasional) 100/180℃
Polishability Very Good
Oxidability(Technical/Decorative) Good/Not application
Contact with food (according to EN 602) Good
Tolerances
Thickness [mm] Flatness [mm] Roughness Width & Length [mm]
+/-0.12mm ≤ 0.35mm/m(T≤15mm)
≤ 0.13mm/m(T>15mm)		 ≤ 0.4 µm 0/+6mm & 0/+10mm
Standard Stock Sizes
Plate Dimension [mm] 1,470 × 3,000 in thickness of 6mm – 250 mm
Max Width:2500mm 2,500 × 3,000 Max Length:6000mm

2,AA5052-Aluminum Precision Milled Plate

1)Product Description

Specific Notes:

* two surfaces precision milled

* excellent flatness

* stress relieved

* elevated strength

* very homogeneous

* very good corrosion resistance

(2)Typical Fields of Application

* Manufacturing device of semi-conductor

* Manufacturing device of liquid crystal

* Manufacturing device of solar panel

* Industrial robot

* Office automation equipment

* Optical instrument

* Tooling and fixture

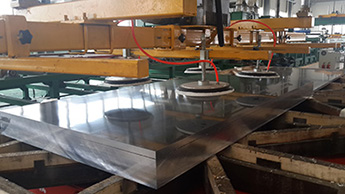

Aluminum precision milled plate (AA5083,5052) Aluminum precision milled plate (AA5083,5052)

(3)Technical data sheet

Alloy´s Characteristics
Alloy AMP5052
Type of Alloy non heat treatable
Temper homogenized and stress relieved
Surface two surfaces precision milled, roughness ≤ 0.4 µm, foiled on both sides
Mechanical Properties Typical values
Yield strength Rp0,2 [MPa] 60 – 90
Ultimate tensile strength Rm [MPa] 160--220
Elongation A5 [%] 20 – 30
Hardness HBW [HB] 45 – 60
Physical Properties Typical values
Density [g/cm³] 2.68
Module of elasticity [GPa] 70
Electrical conductivity [m/Ω · mm²] 19 – 21
Coefficient of thermal expansion [K-1 · 10-6] 23.8
Thermal conductivity [W/m · K] 130 – 150
Processing Characteristics
Dimensional stability Very Good
Machinability Good
Erodability Very Good
Weldability (/ TIG / MIG / ERW/EBW) Good/ Good/ Good/Very Good
Corrosion resistance ( stress cracking/seawater / weather) Normal/ Good/Very Good
Highest Use temperatures ( long term/Occasional) 100/180℃
Polishability Very Good
Oxidability(Technical/Decorative) Good/Not application
Contact with food (according to EN 602) Good
Tolerances
Thickness [mm] Flatness [mm] Roughness Width & Length [mm]
+/-0.12mm ≤ 0.35mm/m(T≤15mm)
≤ 0.13mm/m(T>15mm)		 ≤ 0.4 µm 0/+6mm & 0/+10mm
Standard Stock Sizes
Plate Dimension [mm] 1,470 × 3,000 in thickness of 6mm – 250 mm
Max Width:2500mm 2,500 × 3,000 Max Length:6000mm
