Specifications
Brand Name :
GBS
Model Number :
GBS-QSBT
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5mts
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
1800mts per month
Delivery Time :
25-35 works day
Packaging Details :
wooden box
surface :
golden, blue,white
appliaction :
radiating fins of air conditioners
packing :
wooden box
alloy :
AA8011/1100/3102
Thickness :
0.089--0.25mm
Description

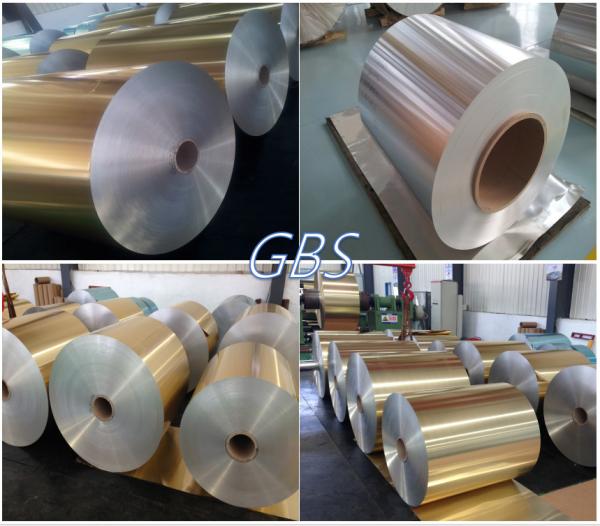

HYDROPHLIC ALUMINIUM COATING FOIL FOR RADIATORTING FINS

Product Description

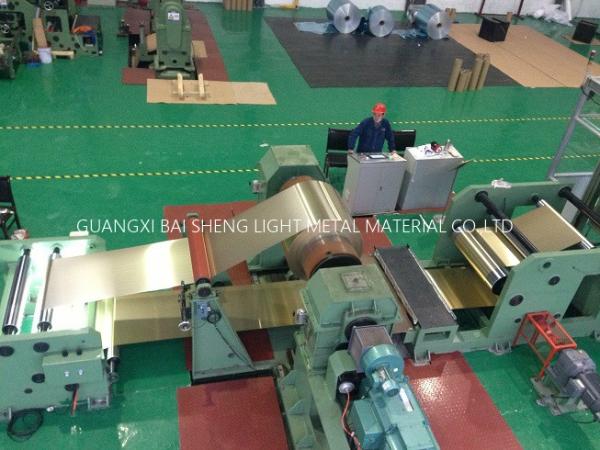

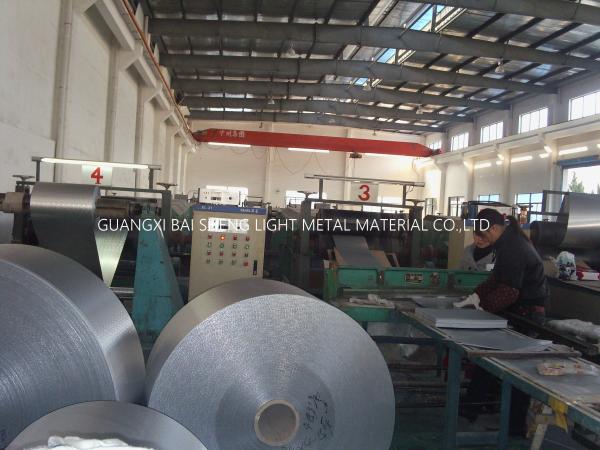

GBS have 4 aluminium hydrophlic finstock production lines which are able to produce annual 28000mts different color of aluminium

finstock which is widely used in airconditoners, heat exchangers, colling machines.ALuminium coated finstock(hydrophlic finstock)

Technical data

Alloy No. Temper (mm)Thickness T.S(MPa) Elogation50mm

Cup burst value

I.E.mm
1100 H22 0.09-0.20 95-135 ≥15 ≥5.5
H24 0.09-0.20 125-145 ≥13 ≥5.0
1200 H26 0.09-0.20 125-160 ≥10 ≥4.5
8011 H22 0.09-0.20 120-140 ≥20 ≥6.0
H24 0.09-0.20 125-150 ≥15 ≥5.5
H26 0.09-0.20 130-155 ≥10 ≥5.0
1030B H26 0.09-0.20 130-155 >9.5 >4.5

category Alloy Temper Specification(mm)
Organic hydrophlic aluminium foil

Blue,
golden
Advanced corrosion resistance

AA1100
AA8011
AA3102

O
H22
H24
H26
H18

Thickness:0.08-0.30
Width:150-1100mm
Inorganic hydriphlic aluminium foil LG white and green



Thickness tolerance(mm)

Thickness(mm) Tolerance(mm)
0.080 ±0.005
> 0.115-0.130 ±0.008
> 0.130-0.32 ±0.010


Width tolerance(mm)

Width(mm) tolerance
≤500 +1.0,-0.5
> 500 ±1.0

Inspection items

Item

NO

 Features & requirements Test items Test methods Requirements
1 Coating thickness Thickness Chambre captivity (Single side)(0.001mm-0.002mm)
2 Adgesiive power Adhesion test Blade grid maker Coat not fall off
Cupping test Cupping machine Coat not fall off
bend test Vise Coat not fall off
3 hydrophilic(initial stage) Contact angle Drip contact

≤10°or ≥2.5mm

≤10°or≥2.5mm
After washing Drip contact

≤15°or≥2.5mm

≤15°or≥2.5mm
Water drop test 　

≥3.0mm

≥3.0mm
4 (continuance)hydrophilic Dead water dipping test Dry and met cycle tank

≤30°or≥2.5mm

≤30°or≥2.5mm
Dry and wet cycle test

≤35°or≥2.5mm

≤35°or≥2.5mm
5 Corrosion Salt.spray test (72h)Salt.spray tester

≥tNo9.8

≥tNo9.8no hole
6 Heat-resisting Property 200℃ Heat 5℃ min in the oven at 200℃

No color change

No terrible smell
7 Solvent Resistance

Heat and dissolve trethylene

　

 ≤1%
8 Alkaline Resistance The change of hydrophilicity after alkali eroding　 ≥2.5mm
9 Anti-volatility Naphtha's effect on coat's hydrophilicity ≥2.5mm
10 Trethylene-resistant trethylene's on coat's hydrophilicity ≥2.5mm
11 Shapability During manufacturing, check the abrasion of high died mould by hydro-coat. No abrasion to high died mould

Hydrophilic Aluminium Foil Corrosion Resistance For Radiating Fins Hydrophilic Aluminium Foil Corrosion Resistance For Radiating Fins
