Specifications
Brand Name :
GBS
Model Number :
GBS-QSB
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5mts
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
1800mts per month
Delivery Time :
25-35 works day
Packaging Details :
wooden box
surface :
golden, blue,white
appliaction :
cooling exchanger,air conditioners,etc
packing :
wooden box
alloy :
AA8011/1100/3102
Thickness :
0.089--0.25mm
Temperor :
O,H22
Description

HYDROPHLIC ALUMINIUM FINSTOCK

Hydrophlic aluminium foill, golden, blue, white,for airconditioners,AA8011/3102



Product Description

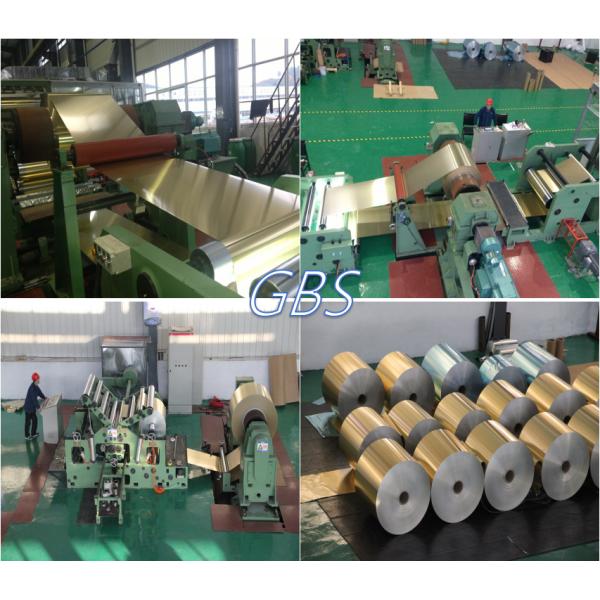

GBS have 4 aluminium hydrophlic finstock production lines which are able to produce annual 28000mts different color of aluminium
finstock which is widely used in airconditoners, heat exchangers, colling machines.ALuminium coated finstock(hydrophlic finstock)

Golden / Blue / White Hydrophilic Aluminium Foil Excellent Coating Performance

Technical data

Alloy No.Temper(mm)ThicknessT.S(MPa)Elogation50mm

Cup burst value
I.E.mm

1100H220.09-0.2095-135≥15≥5.5
H240.09-0.20125-145≥13≥5.0
1200H260.09-0.20125-160≥10≥4.5
8011H220.09-0.20120-140≥20≥6.0
H240.09-0.20125-150≥15≥5.5
H260.09-0.20130-155≥10≥5.0
1030BH260.09-0.20130-155>9.5>4.5



categoryAlloyTemperSpecification(mm)
Organic hydrophlic aluminium foil

Blue,
golden
Advanced corrosion resistance

AA1100
AA8011
AA3102

O
H22
H24
H26
H18

Thickness:0.08-0.30
Width:150-1100mm

Inorganic hydriphlic aluminium foilLG white and green


Thickness tolerance(mm)

Thickness(mm)Tolerance(mm)
0.080±0.005
> 0.115-0.130±0.008
> 0.130-0.32±0.010


Width tolerance(mm)

Width(mm)tolerance
≤500+1.0,-0.5
> 500±1.0


Inspection items

Item
NO

Features & requirementsTest itemsTest methodsRequirements
1Coating thicknessThicknessChambre captivity(Single side)(0.001mm-0.002mm)
2Adgesiive powerAdhesion testBlade grid makerCoat not fall off
Cupping testCupping machineCoat not fall off
bend testViseCoat not fall off
3hydrophilic(initial stage)Contact angleDrip contact

≤10°or ≥2.5mm
≤10°or≥2.5mm

After washingDrip contact

≤15°or≥2.5mm
≤15°or≥2.5mm

Water drop test　

≥3.0mm
≥3.0mm

4(continuance)hydrophilicDead water dipping testDry and met cycle tank

≤30°or≥2.5mm
≤30°or≥2.5mm

Dry and wet cycle test

≤35°or≥2.5mm
≤35°or≥2.5mm

5CorrosionSalt.spray test(72h)Salt.spray tester

≥tNo9.8
≥tNo9.8no hole

6Heat-resisting Property200℃Heat 5℃ min in the oven at 200℃


No color change
No terrible smell

7Solvent Resistance

Heat and dissolve trethylene
　

≤1%
8Alkaline ResistanceThe change of hydrophilicity after alkali eroding　≥2.5mm
9Anti-volatilityNaphtha's effect on coat's hydrophilicity≥2.5mm
10Trethylene-resistanttrethylene's on coat's hydrophilicity≥2.5mm
11ShapabilityDuring manufacturing, check the abrasion of high died mould by hydro-coat.No abrasion to high died mould



Features: excellent coating performance,uniform mechnical performance,processing adaptability,excellent hydrophlic envirements
chararestics

advantage: widely used in all over the world, LG, geree,etc world famous company are our long term customers for years
