Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm
Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm
Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm
Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm
Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm
Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm
Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm
Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm
Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm
Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm
Specifications
Brand Name :
GBS
Model Number :
GBS-YHBC
Certification :
ISO
Place of Origin :
CHINA
MOQ :
6mts
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
800mts per month
Delivery Time :
4-5 weeks
Packaging Details :
standard export packing
Alloy :
AA1100/1060/8011/3003
finish :
embossed,coated
application :
roofing, construction
packing :
standard export packing
thickness :
0.16mm--0.60mm
Description

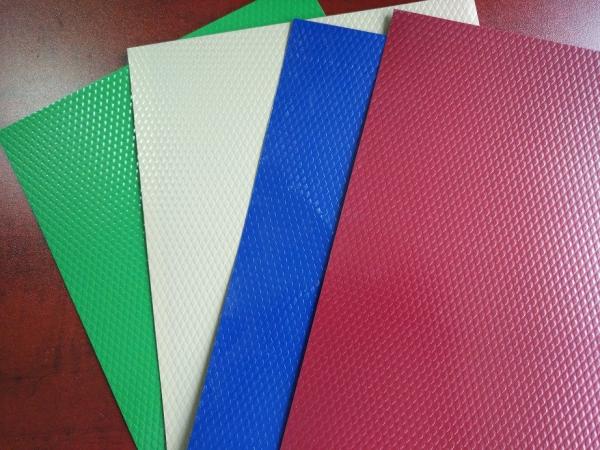

Aluminium embossed and precoated coils

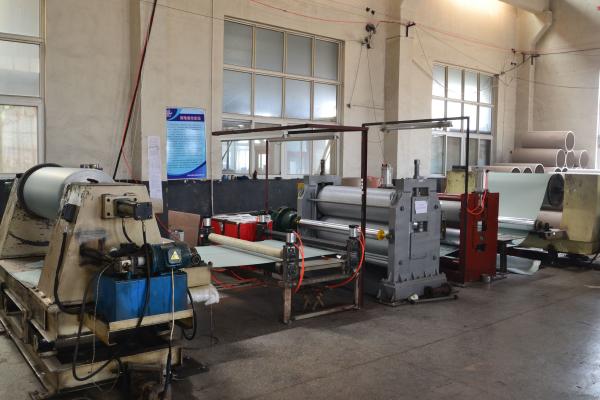

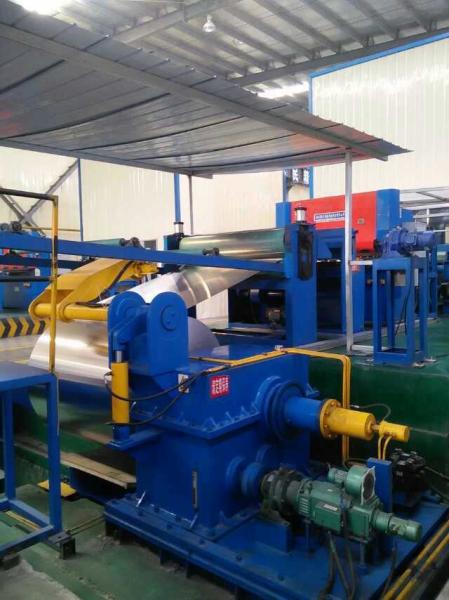

GBS are equipped with 5 aluminium coil embossed lines which can embossed different pattern of aluminium coils

Alloy A1100,A1235,A1200,A3003,A3005,A3105,A5052,A8011
Temper H14-H48
Thickness From 0.06mm to 1.6mm
Width Standard width:1240mm
Max width:1650mm
Diameter Standard dia:1200mm
Interior dia:75mm,150mm,405mm,505mm
Weight 2.5 T/coil,3.0 T/coil
Coating PE,PVDF

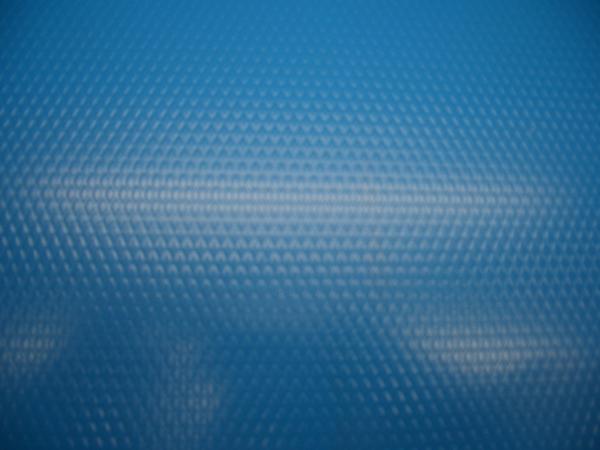

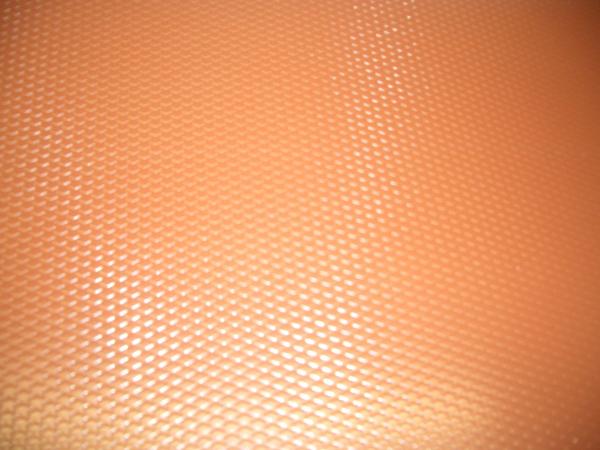

Surface Pattern Diamond ,stucco,orange,rhombic,five-bar tendon
Color various
Gloss 10-90%
Coating Thickness PE: 15-20 micron
PVDF: 25 micron
Application Cans cover ring, ACP, wall cladding, facades, roofs and canopies, ceilings, signboards, blind window, display platforms, electrical panels, etc

Main application: constrcution, roofing, decoration of wall, lighting material,etc

Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm Embossed Pre Painted Aluminium coils, AA1100/8011/3003,0.16mm-0.60mm
