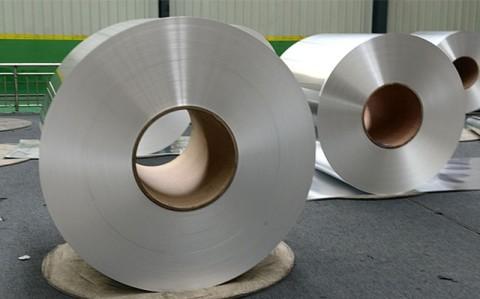

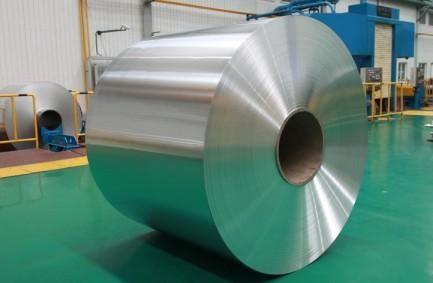

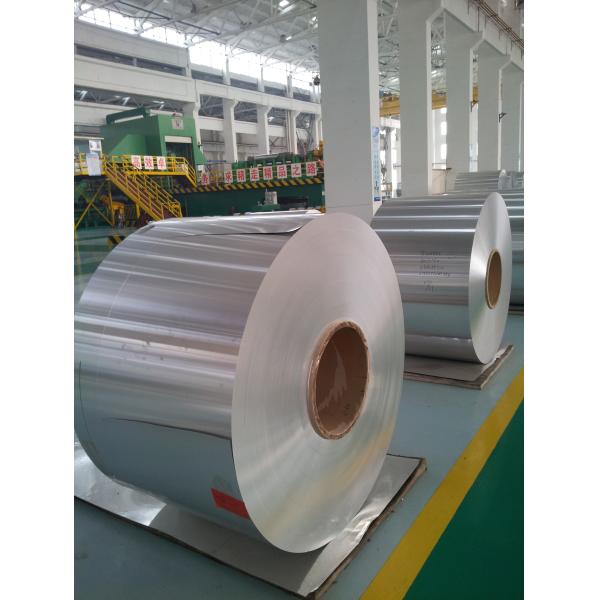

Gauge 0.2—0.38mm Aluminum Sheet Coil For Aluminium Finstock Aa1100/8011/3102
Gauge 0.2—0.38mm Aluminum Sheet Coil For Aluminium Finstock Aa1100/8011/3102
Gauge 0.2—0.38mm Aluminum Sheet Coil For Aluminium Finstock Aa1100/8011/3102
Gauge 0.2—0.38mm Aluminum Sheet Coil For Aluminium Finstock Aa1100/8011/3102
Gauge 0.2—0.38mm Aluminum Sheet Coil For Aluminium Finstock Aa1100/8011/3102
Gauge 0.2—0.38mm Aluminum Sheet Coil For Aluminium Finstock Aa1100/8011/3102
Specifications
Brand Name :
GBS
Model Number :
GBS-QSBW
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5mts
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
2800mts per month
Delivery Time :
25-35 works day
Packaging Details :
wooden pakkets
surface :
Mill finish
appliaction :
rolling into aluminium coil for fins
packing :
wooden pallets
alloy :
AA8011/1100/3102
Thickness :
0.20--0.38mm
Description

PLAIN ALUMINIUM COILS FOR REROLLING INTO 0.008-0.3MM FINSTOCK

1. APPLICATION: PRESENT FOILSTOCK IS SUITABLE FOR REROLLING INTO FOILS USED FOR

COATING AND SLTTING, FINAL APPLICATION IS FINS IN AIR CONDITIONERS

2. ALLOY,TEMPER,GAUGE AND WIDTH

ALLOY

TEMPER

 SIZE(MM)
GAUGE WIDTH

1100,1200,8011,3102

8006

 H18,H16 0.2—0.38MM ≤1900
OTHER REQUIREMENTS OTHERWISE SHALL BE AGREED BETWEEN SELLER AND BUYER
  • INNER DIAMETER: 400/500MM.
  • SIZE TOLERANCE.

3, THICKNESS AND THICKNESS TOLERANCE

THICKNESS(MM) THICKNESS TOLERANCE
> 0.20-0.38 ±0.010

4. WIDTH AND TOLERANCE

WIDTH(MM) WIDTHTOLERANCE
≤500 +1.0,-0.5
> 500 ±1.0

5. REEL

WIDTH(MM) WIDTHTOLERANCE
≤1900 +2.0,0

6. TELESCOPICY ANDLAYER.

TELESCOPICY: 5MM

LAYER: 0.5MM

  • PHYSICAL PROPERTY:
ALLOY TEMPER GAUGE(MM) TENSILE STRENGTH(MPA)

ELOGATION

AT 50MM INTERVAL(%)

CUP

I.E,MM

8011

3102
H18/H16 0.2-0.38 ≥160 ≥10 ≥6.5

7. SURFACE QUALITY.

SURFACE SHALL BE CLAEN, FLAT, MILL FINISH, WITHOUT SCRAPES, HOLES, CORRPSION, OILSTAINS,

ETC DEFECTS WHICH EFFECTS APPLICATION

JOINTS FOE EACH COILS SHALL NOT BE MORE THAN 1 AND APPERANT MARKING SHALL BE INDICATED

ON JOINTS.

8. PACKING: WOODEN PALLETS
