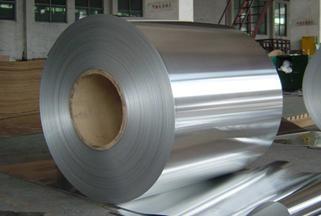

Cold Rolled Mill Finish Aluminum foilstock .AA8011/1235 Temper H14/H16, 0.25-0.75mm
Cold Rolled Mill Finish Aluminum foilstock .AA8011/1235 Temper H14/H16, 0.25-0.75mm
Cold Rolled Mill Finish Aluminum foilstock .AA8011/1235 Temper H14/H16, 0.25-0.75mm
Cold Rolled Mill Finish Aluminum foilstock .AA8011/1235 Temper H14/H16, 0.25-0.75mm
Cold Rolled Mill Finish Aluminum foilstock .AA8011/1235 Temper H14/H16, 0.25-0.75mm
Cold Rolled Mill Finish Aluminum foilstock .AA8011/1235 Temper H14/H16, 0.25-0.75mm
Specifications
Brand Name :
GBS
Model Number :
GBS-QSBW
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5mts
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
2000mts per month
Delivery Time :
25-35 works day
Packaging Details :
wooden pakkets
surface :
Mill finish
appliaction :
rolling into aluminium foils
packing :
wooden pallets
alloy :
AA8011/1235
Thickness :
0.25--0.75mm
temper :
H14.H16.H18
Description

Aluminium coil sheets for foil(thickness less than 0.01mm)

1. Application: aluminium coils here is used for rerolling into aluminium foils whose thinkess is less than 0.01mm

2. Alloy and size(mm)

Alloy Temper size
thinkness width
1145,1235,1100,1200.8011,8011A.8079 FI14,H16,H18 0. 25-0. 70 400mm-2000mm

3. Chemical composition

Alloy Chemical composition(pct)
Si Ee Cu Mn Mg Cr Ni Zn Ti other Al
single total
8011A 0. 40-0. 8 0. 50-1. 0 o. 10 o. 10 o. 10 0.1 <0. 1G m os O. 05 O. 15
8079 0..5〜0. 30 0. 7-1. 3 <0. 05 WO. 10 <0. 05 <0.15

4. Tolerance

Thinkness 'mm Width mm crown flatness Coil edge tolerance
4%(noninate thinkness) 1.5 0-1% Less than 201

Layer:3 mm,

telescopicity:10 mm min.

5. Physical properties

Alloy Temper UTS Rm /( N/mm) ELOGATION (50 mm)
1145,1235 H18 >140 >1
H16 120-160 >1
H14 105-145 >2
1100,1200 H18 >150 >1
H16 130-170 >1
H14 115 — 155 >2
8011,80HA,8079 H18 >160 >1
H16 145-185 >1
H14 125-165 >2

6. HYDROGEN

Less than 0U4 mL/100 g

7. Surface quality
The surface of cold-rolled strip for double zero aluminum foil shall not be subject to any defects such as corrosion, oil spots, peeling, metal or non-metal pressing materials, serious scratches, etc. affecting further processing.
The surface of cold-rolled strip for double zero aluminum foil allows for slight uneven color, stripes, etc. that do not affect further processing defects.
The rolled material shall be tightly rolled and rolled, with no cracked edges, burrs, scratches and scratches on the end surface.
No bird's nest or collapse is allowed in the roll.
No connectors are allowed for rolls.
8. grain size
Grain grain degree of casting rolling(casting)
The grain size of casting rolling(casting) shall not be lower than the second grade.
9. Annealed grain degree
Annealing grain size should not be less than one level.
10. Other requirements
If the Demand Party has other special requirements, the Supply Party and the Supply Party shall negotiate and specify in the contract.
