Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger
Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger
Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger
Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger
Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger
Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger
Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger
Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger
Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger
Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger
Specifications
Brand Name :
GBS
Model Number :
GBS-QSBB
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5mts
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
1200mts per month
Delivery Time :
25-35 works day
Packaging Details :
wooden box
surface :
light blue, dark blue, golden, special white
appliaction :
cooling exchanger,air conditioners
packing :
wooden box or wooden pallets
alloy :
AA8011/1100/3102
Thickness :
0.089--0.35mm
Width :
150-1650mm
Description

HYDROPHLIC ALUMINIUM FOILS FOR FINS OF RADIATORS


Commodity: Aluminium hydrophlic foils
Specification

category Alloy Temper Specification(mm)
Organic hydrophlic aluminium foil

Blue,
golden
Advanced corrosion resistance

AA1100
AA8011
AA3102

O
H22
H24
H26
H18

Thickness:0.08-0.30
Width:90-1200mm
Inorganic hydriphlic aluminium foil LG white and green


Thickness tolerance(mm)

Thickness(mm) Tolerance(mm)
0.080 ±0.005
> 0.115-0.130 ±0.008
> 0.130-0.32 ±0.010


Width tolerance(mm)

Width(mm) tolerance
≤500 +1.0,-0.5
> 500 ±1.0


Inspection items

Item
NO

 Features & requirements Test items Test methods Requirements
1 Coating thickness Thickness Chambre captivity (Single side)(0.001mm-0.002mm)
2 Adgesiive power Adhesion test Blade grid maker Coat not fall off
Cupping test Cupping machine Coat not fall off
bend test Vise Coat not fall off
3 hydrophilic(initial stage) Contact angle Drip contact

≤10°or ≥2.5mm
≤10°or≥2.5mm
After washing Drip contact

≤15°or≥2.5mm
≤15°or≥2.5mm
Water drop test 　

≥3.0mm
≥3.0mm
4 (continuance)hydrophilic Dead water dipping test Dry and met cycle tank

≤30°or≥2.5mm
≤30°or≥2.5mm
Dry and wet cycle test

≤35°or≥2.5mm
≤35°or≥2.5mm
5 Corrosion Salt.spray test (72h)Salt.spray tester

≥tNo9.8
≥tNo9.8no hole
6 Heat-resisting Property 200℃ Heat 5℃ min in the oven at 200℃


No color change
No terrible smell
7 Solvent Resistance

Heat and dissolve trethylene
　

 ≤1%
8 Alkaline Resistance The change of hydrophilicity after alkali eroding　 ≥2.5mm
9 Anti-volatility Naphtha's effect on coat's hydrophilicity ≥2.5mm
10 Trethylene-resistant trethylene's on coat's hydrophilicity ≥2.5mm
11 Shapability During manufacturing, check the abrasion of high died mould by hydro-coat. No abrasion to high died mould


Application

for air conditioners radirators fins, refregerators radiator fins,other radiators fins

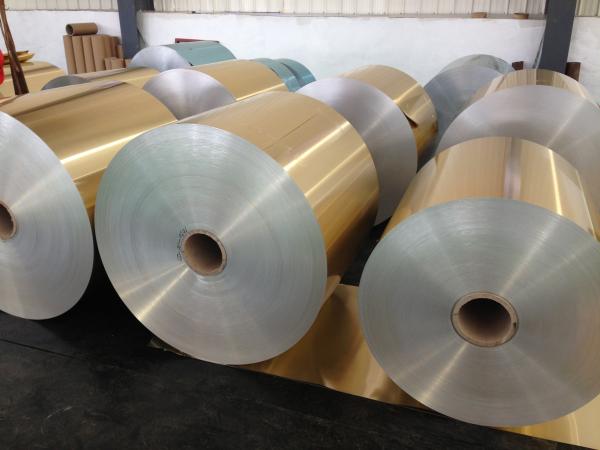

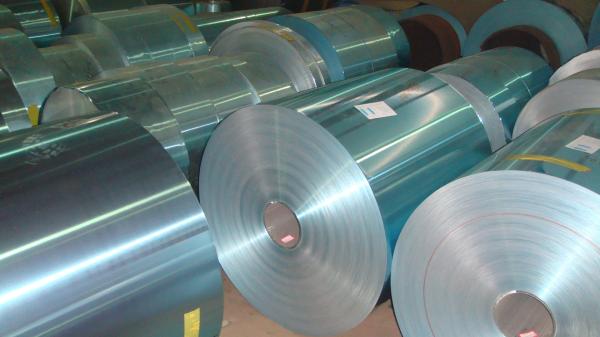

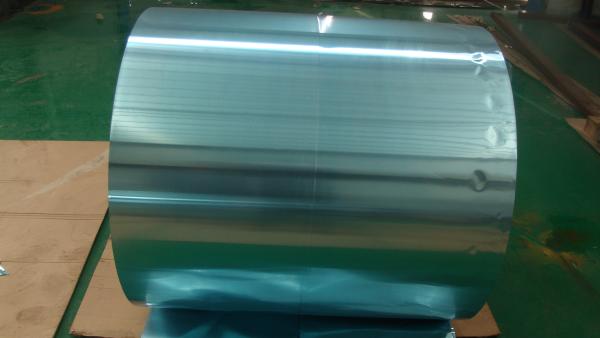

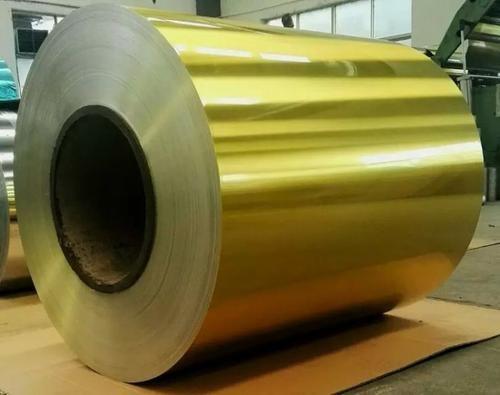

Actual application pictures:


Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger Coloured Rolled Aluminium Sheet , Painted Aluminum Coil For Cooling Exchanger
