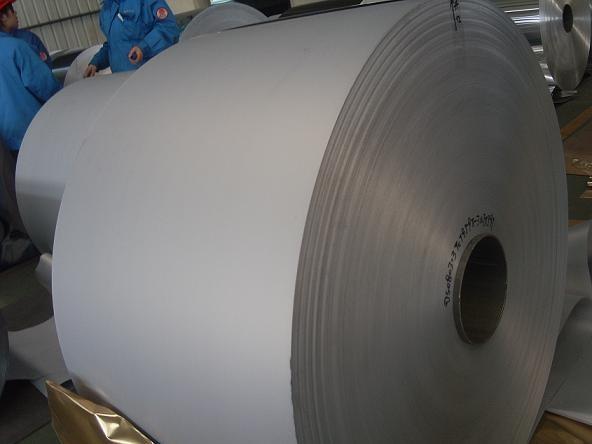

Golden Hydrophilic Aluminium Finstock,l Application Air Conditioners Heaters AA8011/3102
Golden Hydrophilic Aluminium Finstock,l Application Air Conditioners Heaters AA8011/3102
Golden Hydrophilic Aluminium Finstock,l Application Air Conditioners Heaters AA8011/3102
Golden Hydrophilic Aluminium Finstock,l Application Air Conditioners Heaters AA8011/3102
Golden Hydrophilic Aluminium Finstock,l Application Air Conditioners Heaters AA8011/3102
Golden Hydrophilic Aluminium Finstock,l Application Air Conditioners Heaters AA8011/3102
Golden Hydrophilic Aluminium Finstock,l Application Air Conditioners Heaters AA8011/3102
Golden Hydrophilic Aluminium Finstock,l Application Air Conditioners Heaters AA8011/3102
Golden Hydrophilic Aluminium Finstock,l Application Air Conditioners Heaters AA8011/3102
Golden Hydrophilic Aluminium Finstock,l Application Air Conditioners Heaters AA8011/3102
Specifications
Brand Name :
GBS
Model Number :
GBS-QSBB
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5mts
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
1200mts per month
Delivery Time :
25-35 works day
Packaging Details :
wooden box
surface :
light blue, dark blue, golden, special white
appliaction :
cooling exchanger,air conditioners
packing :
wooden box or wooden pallets
alloy :
AA8011/1100/3102
Thickness :
0.089--0.35mm
Width :
150-1650mm
Description

HYDROPHLIC ALUMINIUM FOILS FOR FINS OF RADIATORS


Commodity: Aluminium hydrophlic foils( aluminium color coated foil)
Specification

Thickness tolerance(mm)

Thickness(mm) Tolerance(mm)
0.080 ±0.005
> 0.115-0.130 ±0.008
> 0.130-0.32 ±0.010


Width tolerance(mm)

Width(mm) tolerance
≤500 +1.0,-0.5
> 500 ±1.0

Detail explanation:

The effect of hydrophilicity

Aluminum foil surface with hydrophilic layer has a strong affinity for water, condensate on the fins spread quickly, not easy to form a "water bridge", so the ventilation effect of air conditioning operation works well. A measure of hydrophilicity is called a hydrophilic angle. Please find the comparison between ordinary aluminum foil and hydrophilic aluminum foil in the following table.

Golden Hydrophilic Aluminium Finstock,l Application Air Conditioners Heaters AA8011/3102

Coating types:

(1)Film with corrosive resistance inorganic resin

(2)Hydrophilic film: organic resin

Characteristic of hydrophilic aluminium foil

  • excellent hydrophilicity and corrosion resistance
  • good formability and no wear on the mold
  • a strong resistance to stamping oily, soluble, heat resistance
  • air flow resistance, heat exchange rate can generally increase 10% -15%.

Coating performance

SERIAL NO ITEMS TESTING METHODS RESULTS
1 superficies and appearance by eyes golden, blue, black
2 film thickness calculated from weight of film 2-3μm
3 original hydrophilicity test hydrophilicity directly ≥8mm
4 initial hydrophilicity dip in vaporing oil 3min (20±15℃) →vertical situation 7min at normal temperature → 210±10℃ dry 2mic → dip in pure water 10min → dry 10min/cycle at normal temperature, 10 circle → test hedrophilicity ≥6.0mm
5 salt-spray resistance JIS-Z-2371 (5%x35℃x72hours continuious slat spray ≥R.NO9.5
6 heat resistance A:200℃x10mins
B:400℃x10mins		 A:no changes B:turns light brown
7 oil resistance dip in press oil 24hours → wash in flowing water → peel test no delamenation
8 adhensive force A,bending 180°
B,peel test
C,erichsen value = 5mm		 100% no delamination
9 odor by nose after dipping in water, and drying naturally no odor
