Specifications
Brand Name :
GBS
Model Number :
GBS-LYP
Certification :
ISO
Place of Origin :
chian
MOQ :
3mts per size
Price :
cif
Payment Terms :
L/C, T/T, D/P
Supply Ability :
1600mts per month
Delivery Time :
3-5 weeks
Packaging Details :
export wodden box
Alloy :
AA1050,1060,3003,8011
shape :
circles
diameter :
100-450mm
Application :
non-stick pots,cooking utensiles
thickness :
0.8-4.0mm
Description

AA1050/1060/3003 ALUMINIUM CIRCLES

  • ALUMINIUM CIRCLES SPECIFICATION
THICKNESS(MM) 1.0-2.0mm 2.0-3.0mm 3.0-4.0mm
DIAMETER(MM) 100-600MM 100-600MM 100-450MM
  • CIRCLES DIAMETER AND CORRESPONDING FRAMWORK,DIE(mm)
ITEM FRWORK SPECI CIRCLES’S DIAMETER
1 100-200 100/105/220/225/120/125/130/135/140/145/150/155/160/165/170/175/180/185/190/195
2 200-300 200/205/210/215/220/225/230/235/240/245/250/255/260/265/270/275/280/285/290/295
3 300-380 300/305/310/315/320/325/330/335/340/345/350/355/360/365/370/375
4 380-460 380/385/390/395/400/405/410/415/420/425/430/435/440/445/450/455
5 460-540 460/465/470/475/480/485/490/495/500/505/510/515/520/525/530/535
6 540-600 540/545/550/555/560/565/570/575/580/585/590/595/600
Total 6 sets Total 101 common circles diameter

  • physical properties

ALLOY MATERIAL TEMPER THICKNESS MPA ELOGATION HARDNESS
1050 DC 0 1.0-1.5 0-100 30
1.5-5.0 32
3003 DC 0


1.0-1.5

 100-120 30 50-55

1.5-3.0

 35 50-55
3.0-5.0 35 50-55
8011 CC 0 1.0-4.0 100-120 35 50-55
  • CIRCLES TOLERANCE(MM)
normal High grade diameter tolerance
thickness Thicness tolerance thickness tolerance
1.0-1.83 +/-0.05 1.0-1.5 +/-0.05

100-600
A specification every 5mm

 +/-0.5
1.84-2.64 +/-0.08 1.5-2.0 +/-0.05
2.65-3.25 +/-0.11 2.0-2.5 +/-0.06
3.26-4.00 +/-0.14 2.5-3.0 +/-0.07
3.0-3.5 +/-0.10
3.5-4.0 +/-0.11

  • surface quality

surface is free of defects such as cracks,blisters,impurity,corrosion,dent,kiknk and rolled in metals.
The edge of circles shall be flat,smoth,and free of burr
Circles shall be flat without any distortion,transfiguration,flatness shall be less than 1.5mm

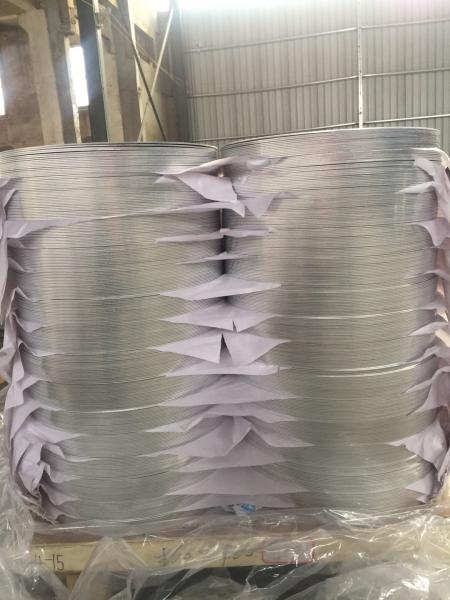

  • pacing
  • manually adjust the height of each stack,swing to the pallet,inner packaging,outer packaging,cover board,landscape orientation packing by tapes,uniform compaction by packing machines,toghting external vertical and horizental packing tapes

the height of each stack doesn’t excess 800mm, usually, within one pallet, there are 4 stacks for diameter 370mm over,9 stacks for diameter 260-350mm and 16 stacks for diameter 210-255mm

packing material: plastic packing tapes, plastic film,corrugating paper,epe,stretch film,hollow plates,wooden pallets.

Details can be agreeded between purchaser and seller

  • application:

aluminium circles are widely used in non-stick pots,cooking utensiles

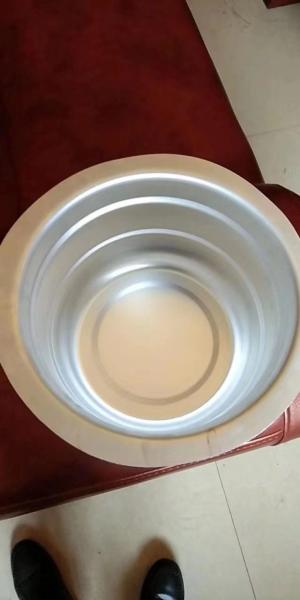

Examples picture of finished producrs:

Aluminium circles, thickness 1.0-4.0mm, diameter 100-450mm, AA1050/1060/3003,Aluminium circles, thickness 1.0-4.0mm, diameter 100-450mm, AA1050/1060/3003,
