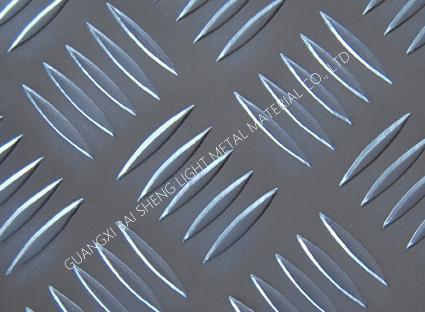

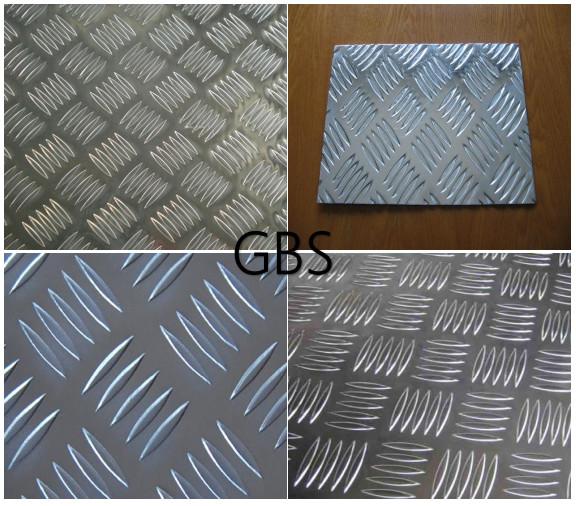

5 Bar Aluminum Tread Plate ,small pattern, AA1100/3003/3105,thickness 0.8-15mm
5 Bar Aluminum Tread Plate ,small pattern, AA1100/3003/3105,thickness 0.8-15mm
5 Bar Aluminum Tread Plate ,small pattern, AA1100/3003/3105,thickness 0.8-15mm
5 Bar Aluminum Tread Plate ,small pattern, AA1100/3003/3105,thickness 0.8-15mm
5 Bar Aluminum Tread Plate ,small pattern, AA1100/3003/3105,thickness 0.8-15mm
5 Bar Aluminum Tread Plate ,small pattern, AA1100/3003/3105,thickness 0.8-15mm
5 Bar Aluminum Tread Plate ,small pattern, AA1100/3003/3105,thickness 0.8-15mm
5 Bar Aluminum Tread Plate ,small pattern, AA1100/3003/3105,thickness 0.8-15mm
5 Bar Aluminum Tread Plate ,small pattern, AA1100/3003/3105,thickness 0.8-15mm
5 Bar Aluminum Tread Plate ,small pattern, AA1100/3003/3105,thickness 0.8-15mm
Specifications
Brand Name :
GBS
Model Number :
GBS-YHBL
Certification :
ISO
Place of Origin :
CHINA
MOQ :
4mts
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1200mts per month
Delivery Time :
3-4 weeks
Packaging Details :
standard export packing
Alloy :
AA1100/3003/3105/5052
application :
Trailer Flooring, Stairs, Boxes, Caravan’s Building or Decoration
finish :
,5-BAR
packing :
standard export packing
thickness :
0.8mm - 15 mm
width :
1000mm
Description

Small 5 Bar Tread Plate Available Size Range

We can customize the sizes of embossed aluminum sheet, according to our clients requirements.

DimensionThicknessWidthLength
1xxx0.8 -12.0mm900-1220mm900-8000mm
3xxx0.8-15.0mm900-12200mm900-8000mm
5xxx1.5-15.0mm900-12200mm900-8000mm

- Surface Finish: Mill finish
- Pattern Height: 1.0mm, +/-0.4mm
- Pattern Length: 35mm, +/-3.0mm

Small 5 Bar Tread Plate Product Specification and Size :

- Standard Specification of embossed aluminum sheets: GB/T 3618, Base material conforms to GB/T 3880. These products are with the most reasonable aluminium checker plate price.

Alloy and Temper
AlloyTemperRemarks
1xxxx: 1050, 1060, 1100O, H114, H194Temper H12, H14, H22, H24, H32 and H34, which are applied to base material are provided as per client’s request and mutually agreement.
3xxx: 3003, 3004, 3005, 3104, 3105
5xxx: 5005, 5052, 5754O, H114

Small 5 Bar Tread Plate Temper designation (For Reference)

TemperDefinition
OAnnealed
H114H114 fabricated from Temper O
H194H194 fabricated from Temper H18

Small 5 Bar Tread Plate Alloy designation (For Reference)

Comparison of alloy designations for aluminum flat products. The aluminium chequered plate price will be related to different alloys.

Alloy SeriesChinese StandardAmerican StandardEuropean Standard
1xxx Series1050--
10601060-
11001100-
3xxx Series30033003EN AW-3003
31053105EN AW-3105
5xxx Series50525052EN AW-5052
-5754EN AW-5754

Small 5 Bar Tread Plate Chemical Compositing

Chemical Composition conforms to Chinese, American and European standard specification (For Reference) of aluminium chequer plate sheets.

AlloySiFeCuMnMgCrZnTiOthers:EachOthers:TotalAl:Min.
10500.250.400.050.050.05-0.050.050.03-99.5
10600.250.350.050.030.03-0.050.030.03-99.6
11000.95 Si + Fe0.05-0.200.05--0.10-0.050.1599.0
30030.600.700.05-0.201.0-1.5--0.250.150.050.15remainder
31050.600.700.030.3-0.80.2-0.80.200.400.100.050.15remainder
50520.250.400.100.102.2-2.80.15-0.350.10-0.050.15remainder
57540.400.400.100.502.6-3.60.300.200.150.050.15remainder

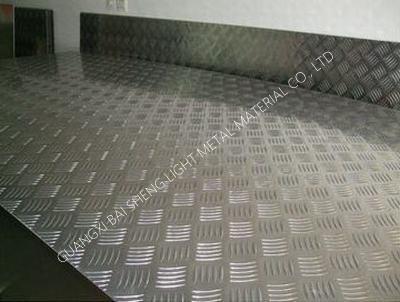

Small 5 Bar Tread Plate Application

Embossed aluminium sheet is a highly cost modern material, it can be widely applied in flooring, wall panel, tool box, transportation and other architecture. As professional aluminium checker plate suppliers, we can provide you with the best aluminium checker plate sheet price.

TypeApplication
ConstructionCurtain walls, cladding, ceiling, heat insulation and venetian blind block, etc.
TransportationAutomobile parts, bus bodies, aviation, ship-building and air-cargo containers, etc.
Electronic ApplianceElectrical appliances, telecommunication equipment, PC board drilling guide sheets, lighting and heat radiating materials, etc.
Consumer GoodsParasols and umbrellas, cooking utensils, and sports equipment
OtherMilitary, color coated aluminum sheet
