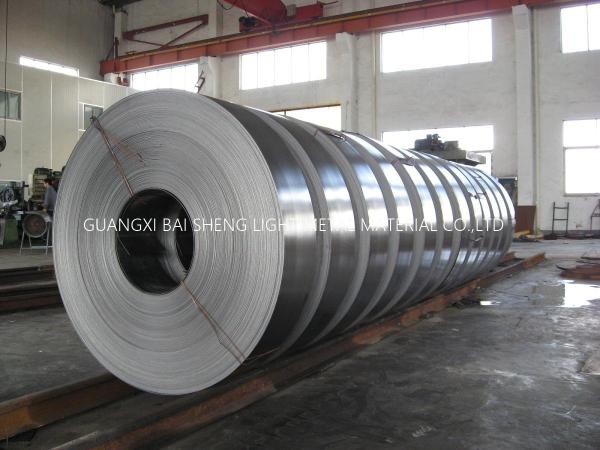

Aluminium Coil Thickness 0.15-3.0mm Min Width 20mm,Transformer Application
Aluminium Coil Thickness 0.15-3.0mm Min Width 20mm,Transformer Application
Aluminium Coil Thickness 0.15-3.0mm Min Width 20mm,Transformer Application
Aluminium Coil Thickness 0.15-3.0mm Min Width 20mm,Transformer Application
Aluminium Coil Thickness 0.15-3.0mm Min Width 20mm,Transformer Application
Aluminium Coil Thickness 0.15-3.0mm Min Width 20mm,Transformer Application
Aluminium Coil Thickness 0.15-3.0mm Min Width 20mm,Transformer Application
Aluminium Coil Thickness 0.15-3.0mm Min Width 20mm,Transformer Application
Specifications
Brand Name :
GBS
Model Number :
GBS-JYBD
Certification :
ISO
Place of Origin :
CHINA
MOQ :
12mts
Payment Terms :
L/C, D/P, T/T
Supply Ability :
1200mts
Delivery Time :
4-5 weeks
Packaging Details :
export wooden box or pallets
Alloy :
AA1050/1060/1070
Temper :
o
max. width :
2000mm
Packing :
wooden pallets
thickness :
0.15mm--3.0mm
min. width :
20mm
Application: :
Power and electrical engineering Industrial systems
Description

AA1050 Aluminium strip for transformer

Aluminium Coil Thickness 0.15-3.0mm Min Width 20mm,Transformer Application

Aluminium strip for transformer winding 1050-O


(1)Chemical Composition

Si Fe Cu Mn Mg Cr Zn Ti Others Al.
Individual Total
Max. 0.25 Max.
0.40		 Max.
0.05		 Max.
0.05		 Max.
0.05		 — Max.
0.05		 Max.
0.03		 Max.
0.03		 — Min. 99.50


(2)Mechanical properties and electric conductivity

Thickness(mm) Tensile Strength(Mpa) Elongation
%		 Bending 180 buckling inside radius Electric conductivity at 20
Over 0.3 to 0.5 Min. 60 Max. 90 20 min. Close contact 62.5 min.
Over 0.5 to 0.8 25 min.
Over 0.8 to 1.3 30 min.
Over 1.3 to 2.0 35 min.
Over 2.0 to 2.5 35 min


(3)Application :transformer strip for transformer winding 1050 can be used for variable transformer like low or high voltage transformer winding,etc.
transfer strip for electrical coil application ranges from 0.3mm to 2.5mm, the alloy 1050(99.50% aluminum) can be used to meet the minimum industry requirements for strip conductor, is closely controlled to assure smooth, substantially burr-free edges and strip-size availabilities are in capacities exactly equivalent to those of standard copper wire sizes.
