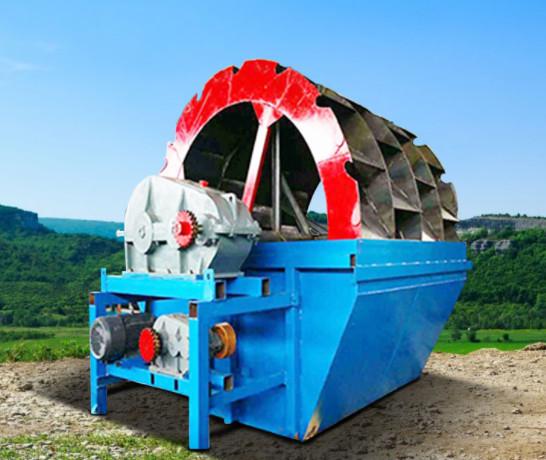

ISO 0.8-1.2rpm XS2600 Sand Washing Machine for mining Long Service Life
ISO 0.8-1.2rpm XS2600 Sand Washing Machine for mining Long Service Life
ISO 0.8-1.2rpm XS2600 Sand Washing Machine for mining Long Service Life
ISO 0.8-1.2rpm XS2600 Sand Washing Machine for mining Long Service Life
Specifications
Brand Name :
ZTIC
Model Number :
Ore Dressing Equipment
Certification :
ISO /CE
Place of Origin :
Henan, China
MOQ :
1 Set/Sets
Price :
negotiable
Supply Ability :
1000 Set/Sets per Year
Packaging Details :
Simple packaging
Model :
Sand Washing Machine
Name :
XS2600 Sand Washer
Wheel bucket diameter :
2600 mm
Application :
For washing and dehydration of construction sand and stone materials
Speed(rpm) :
0.8-1.2 rpm
Processing capacity(t/h) :
≤10mm
Classification :
Ore Dressing Equipment
Warranty :
12 months
Description

Ore Dressing Equipment Sand Washer Mainly Used In Sand And Stone Field, Mining

1. Product description of ore dressing equipment sand washing machine

Sand washing machine is mainly used in sand and stone field, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries to wash materials. Generally used as the supporting equipment of sand and stone production line.

2. Working principle of ore dressing equipment sand washing machine

In the production operation, the motor drives the impeller to rotate slowly after decelerating through the triangle belt, reducer and gear. The sand and stone enter the washing tank from the feeding tank, roll under the drive of the impeller, and grind each other to remove the impurities covering the surface of the sand and stone, and destroy the water vapor layer covering the sand, so as to facilitate dehydration; At the same time, add water to form a strong water flow, timely take away impurities and foreign bodies with small proportion, and discharge from the overflow outlet washing tank to complete the cleaning effect. Clean sand is taken away by the blade, and then the sand is poured into the discharge trough from the rotating impeller to complete the cleaning function of the sand and stone.

3.Product parameters of ore dressing equipment sand washing machine

(1)XS series sand and stone washing machine ore dressing equipment

SPEC XS2600 XS2600Ⅱ XS2800 XS3200 XS3600
Wheel bucket diameter(mm) 2600 2600 2800 3200 3600
Speed(rpm) 0.8-1.2 0.8-1.2 0.8-1.2 0.8-1.2 0.8-1.2
Processing capacity(t/h) 20-50 30-70 50-100 80-120 120-180
Motor power(kw) 5.5 5.5 7.5 11 15
(2)WCD series sand and stone washing machine ore dressing equipment
Model WCD-1500 WCD-1118 WCD-914 WCD-762 WCD-610 WCD-508
Screw diameter (mm) 1500 1118 914 762 610 508
Tank length (mm) 10512 9554 7815 7620 7225 6705
Washing size (mm) ≤10 ≤10 ≤10 ≤10 ≤10 ≤10
Production capacity (t/h) 130～220 100～175 75～100 50～75 40～50 20
Screw speed (RPM) 13 18 20 26 32 38
Motor power (KW) 18.5 15 11 11 7.5 5.5
Water consumption (t/h) 14～190 20～168 10～80 9～63 6～63 6～60
Machine weight (t) 16.5 8.6 6.5 5.2 3.8 2.6
Model 2WCD-1118 2WCD-914 2WCD-762
Screw diameter (mm) 1118 914 762
Tank length (mm) 9325 6886 6886
Washing size (mm) ≤10 ≤10 ≤10
Production capacity (t/h) 200～300 150～200 100～145
Screw speed (RMP) 17 21 26
Motor power (KW) 2*15 2*11 2*11
Water consumption (t/h) 200～250 120～150 136～182
Machine weight (t) 19.8 13.5 8.1

ISO 0.8-1.2rpm XS2600 Sand Washing Machine for mining Long Service Life

ISO 0.8-1.2rpm XS2600 Sand Washing Machine for mining Long Service Life
