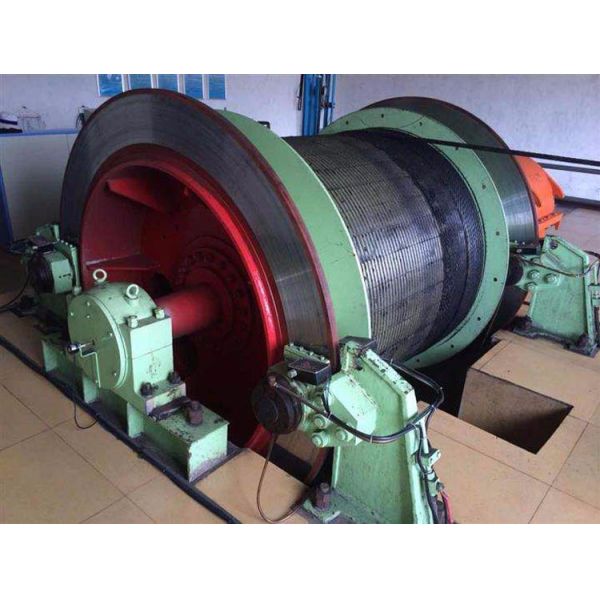

Explosion Proof Large Lifting Load Mine Shaft Sinking Winch
Explosion Proof Large Lifting Load Mine Shaft Sinking Winch
Explosion Proof Large Lifting Load Mine Shaft Sinking Winch
Explosion Proof Large Lifting Load Mine Shaft Sinking Winch
Explosion Proof Large Lifting Load Mine Shaft Sinking Winch
Explosion Proof Large Lifting Load Mine Shaft Sinking Winch
Specifications
Place of Origin :
Henan, China
Brand Name :
ZTIC
Model Number :
JKZ
Certification :
ISO9001:2008
Supply Ability :
500.0 Set/Sets per Year
Packaging Details :
Standard packing or according to customer's requirement
MOQ :
>=1 Sets
Price :
$10,000.00
Power Source :
Electric
Application :
Auto
Capacity :
Depands
ITEM :
JKZ series sinking winch
Keyword :
Storage Winch
Condition :
New
Structure :
Conveyor System
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
Follow Customers' Requirements
Brand :
CITIC
Motor :
AC motor
MOQ :
1 SET
Port :
QingDao,ShangHai,TianJin
Description
Product Description

Electric Control Sinking Hoist High Quality JZ-5/400 Mine Shaft Sinking Winch

Hoist Product Introduction

JKZ series winch products include diameter 2.8m-5.5mJKZ single cylinder and double drum winch winch 2JKZ various specifications, winch for coal, metal and non-metal mines during the drilling, lifting of material and personnel, is a special equipment for mine shaft sinking. 2JKZ, JKZ type winch is a special lifting equipment of large ordinary sinking.

Basic information :

a. Load capacity: 0.5t-30t.

b. Working Speed: 2.5-30m/min or Customized.

c. Hydraulic pump station brand: Self-made or Chinese famous brand.

d. Wire rope capacity: 10-8000m or Customized.

e. Color: Blue,Yellow,White,Black or According to your demands.

f. Paintings: 3 layers anti-corrosion paintings

g. Usage: construction, boat, mine, bridge, building, road, crane, port, building, etc.

The main purpose of sinking winch:

1. Lifting the rock in the pit

2. Lifting personnel and All kinds of machinery and equipment for shaft sinking

3. Transportation of Concrete for walls

4. The characteristics of sinking winch:

5. Large difference of static tension

6. Large Lifting load

7. high lifting speed during shaft sinking

8. Complex velocity diagram (at least nine stages speed chart)

9. Higher control precision and Better speed performance

Features of Shaft Sinking Winch

This series winches mainly used for materials lifting, weight drops pulling and drawing in construction.

It also used as main hoisting equipment in crane.

It is the special electric winch of crane and gantry frame and lifting trolley.

It is suitable for lifting material and equipments installation of construction, mine site and factory.

Technical Parameter of Shaft Sinking Winch

Items Rated load (kn) Rated speed (m/min) Rope capacity(m) Rope diameter (mm) Motor Type Power (kw)
JK0.5 5 22 190 Φ7.7 Y100L2-4 3
JK1 10 22 100 Φ9.3 Y112M-4 4
JK1.6 16 24 150 Φ12.5 Y132S-4 5.5
JK2 20 24 150 Φ13 Y132M-4 7.5
JK3.2 32 25 290 Φ15.5 YZR180L-6 15
JK3.2B 32 30 250 Φ15.5 YZR200L-8 22
JK5 50 30 300 Φ21.5 YZR225M-6 30
JK5B 50 25 210 Φ21.5 YZR225M-8 22
JK8 80 25 160 Φ26 YZR280S-8 45
JK10 100 30 300 Φ30 YZR315S-8 50

Explosion Proof Large Lifting Load Mine Shaft Sinking WinchExplosion Proof Large Lifting Load Mine Shaft Sinking Winch

Our Services

Aftersales service

LUOYANG ZHONGTAI INDUSTRIES able to provide:

1. ENGINEERED SPARES - DESIGN AND MANUFACTURING

2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES

5. PREVENTATIVE MAINTENANCE PROGRAMS

6. PREVETATIVE MAINTENANCE SERVICES

7. COMPREHENSIVE MAINTENANCE PROGRAMS

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.

Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.

LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:

A: parts lead time 1-2months, machines 2-3months.

Q:Payment terms:

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
