Specifications
Place of Origin :
Henan, China
Model Number :
Fire brick
Brand Name :
ZTIC
Supply Ability :
10.0 Ton/Tons per Month
Packaging Details :
Simple package for fire brick
MOQ :
>=1 Tons
Price :
$200.00
Certification :
ISO/CE
Shape :
Brick
Material :
clay
SiO2 Content (%) :
10%
Al2O3 Content (%) :
10%
MgO Content (%) :
10%
CaO Content (%) :
10%
Refractoriness (Degree) :
Common (1580°< Refractoriness< 1770°)
CrO Content (%) :
10%
SiC Content (%) :
10%
Product name :
clay bricks Fire clay brick for rotary kiln clay bricks
Raw material :
Clay
Size :
Customized Size
Usage :
Furnace Liner
Type :
Raw Refractory
Sample :
Provide
Density :
1.85~2.0g/cm3
MOQ :
1 TON
Brand :
ZTIC
Certificate :
ISO9001
Port :
Qingdao/Tianjin/Shnaghai
Description
Product Description
Fire brick

SK series
SK30
SK32
SK34
SK35
Al2O3
30%-35%
35%-38%
38%-42%
42%-50%
Item
33% Al2O3
fire clay brick
38% Al2O3
fire clay brick
42% Al2O3
fire clay brick
48% Al2O3
fire clay brick
Al2O3
33%
38%
42%
48%
Fe2O3/%
≤3
≤3
≤3
≤2.5
Refractoriness
≥1690 °C
≥1730 °C
≥1750 °C
≥1750 °C

Bulk density/g/cm3
1.9-2.0
2.0-2.1
2.1-2.18
2.15-2.3
Unit weight (230*114*65mm)
≥3.35KGS
≥3.55KGS
3.65KGS
≥3.75KGS
Apparent porosity/%
≤26
≤24
≤24
≤22
Cold crushing strength
≥20Mpa
≥25Mpa
≥30Mpa
≥35Mpa
Refractoriness under load
≥1250 °C
≥1300 °C
≥1350 °C
≥1420 °C
Reheating Linear Change/%
0~ -0.5
(1350°C,2h)
0~ -0.3
(1350°C,2h)
0~ -0.4
(1450°C,2h)
+0.1~ -0.4
(1450°C,2h)


High alumina refractory brick has the following features:
1. High refractoriness under load.
2. Good thermal shock resistance.
3. Good corrosion resistance.
4. Good spalling resistance and wear resistance.
5. High mechanical strength.
6. Low creep rate at High temperature.

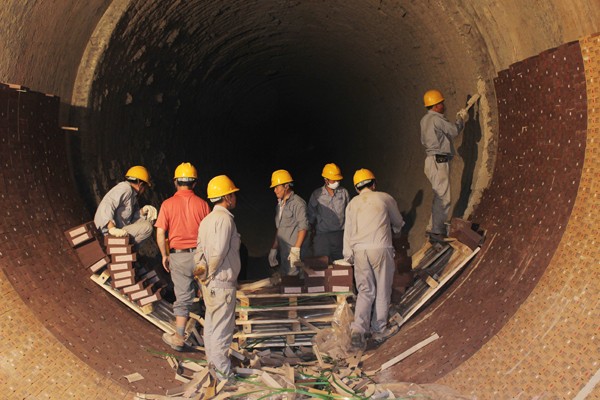

Rotarykiln fire brick can be used ring masonry or staggered masonry masonry. The commonly used method of masonry is the ring-puzzle method.
The advantage of the ring-laying method is that each individual brick ring is tightly pinched and can be independently secured. Which is conducive to the construction and inspection, but also conducive to the demolition and maintenance. Especially for brick masonry is often used for brick site.
Staggered masonry method has the advantage of brick and brick intertwined with each other, in the kiln body is not regular small kiln can effectively reduce the trouble often out of brick. However, the method of masonry and maintenance are not convenient, the current form of domestic refractory firebrick regularity is not good enough, the use of the brick masonry lining quality is difficult to guarantee, so only a very small number of kiln staggered masonry.
SK36 refractory brick is produced with good quality bauxite with high alumina content, it is widely used in high temperature parts of furnace and kiln lining such as glass furnace, blast furnace, hot-air furnace, cement kiln, lime kiln, boilers, chemical furnace and other heating engineering equipment.

High Alumina Raw Refractory Rotary Kiln Fire Clay Brick CITIC HIC Machine Parts

High Alumina Raw Refractory Rotary Kiln Fire Clay Brick CITIC HIC Machine Parts

Our Services

Aftersales service

LUOYANG ZHONGTAI INDUSTRIES able to provide:

1. ENGINEERED SPARES - DESIGN AND MANUFACTURING

2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES

5. PREVENTATIVE MAINTENANCE PROGRAMS

6. PREVETATIVE MAINTENANCE SERVICES

7. COMPREHENSIVE MAINTENANCE PROGRAMS

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.

Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.

LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:

A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?

A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: We can supply technical guide for machines running test and parts maintenance if end user needs.
