Specifications
Place of Origin :
Henan, China
Brand Name :
CITICIC
Certification :
AISI
Supply Ability :
10000 Set/Sets per Year wear-resistant ball mill lining
Packaging Details :
Simple packaging for liner
MOQ :
1 Piece/Pieces
Price :
$100.00 - $2,000.00 / Piece
Type :
Ball Mill Liners
Machine Type :
Ball Mill ,Rod Mill,AG/sag mill
Material :
High Manganese Steel
Processing Type :
Casting
Use :
Ore Mining
Mill Liner :
wear-resistant ball mill lining
Ball Mill Liners1 :
Single wave liners
Ball Mill Liners2 :
Modified single wave liners
Ball Mill Liners3 :
Double wave liners
Ball Mill Liners4 :
Shell liners
Ball Mill Liners5 :
Feed head liners
Ball Mill Liners6 :
Discharge end liners
SAG/AG Mill Liners :
Grates ,Pulp lifters,Filler rings
Ball Mill Liners :
Single wave liners ,Modified single wave liners,Double wave liners
Advantage :
Wear Resistant
Port :
QingDao,ShangHai,TianJin
Description
High wear-resistant ball mill lining
Product Description

CITICIC high Wear resistance Liners/lining plate for Ball Mill

Product name Mill liner plate
Material Alloy steel,Carbon steel,Carburizing steel,Quenched and tempered steel
Heat treatment Normalizing,Annealing,Quenching&Tempering, Surface Quenching,Case hardening
Machining CNC Turning,CNC Milling,CNC Boring,CNC Grinding,CNC Drilling
Gear Machining Gear Hobbing,Gear Milling,CNC Gear Milling,Gear Cutting,Spiral gear cutting,Gear Cutting
Inspection Chemical Composition Test,Ultrasonic Test,Penetration Test,Radiographic Test,Magnetic Test,Tensile Strength Test,Impact Test,Hardness Test,Dimension Test
Apply to SAG/AG mill, ball mill, rod mill,etc.

CITIICIC specialized in producing wear-resist castings used in grinding equipments and main spindle bush, brake shoe for the mill of various specifications. It has strong casting, heat treatment and machining ability, strict quality and process controlled methods as well as the perfect examination and experimental means, so that can wear-resisting products enjoy high reputation in China and sells well all over the world.

Wearing-resisting Ball Mill Liners for cement Ball Mills

Grinding wear parts are subjected to different combinations of impact and abrasion, as they are used in SAG/AG, ball or rod mills. Our wear parts are manufactured to the highest standards of quality, traceability and delivery, ensuring high levels of reliability for our customers. Also, our wear parts add value to customers’ processes through customized designs The use of internationally recognized advanced specialized software simulation mill liners for lining structure, size to optimize the design.

♦ Barrel and cap are made of wear-resistant liner material chrome molybdenum alloy steel, the use of convex liner, improve service life and grinding effect.
♦ Liner with a flat head bolts, supporting self-locking nut and ferrule. Coupling bolts with special seals to prevent leakage of plasma.
♦ Quantity bolted liner wealthy amount of 5%.
♦ Cover and cylinder liner wear-resistant rubber padding junction strip, which is fixed by the close of the liner.
♦ Rubber gasket between the cylinder liner and a thickness of 6mm, noise can be reduced.

SAG/AG Mill Liners:
• Integrated and/or plate and lifter designs for head and shell liners

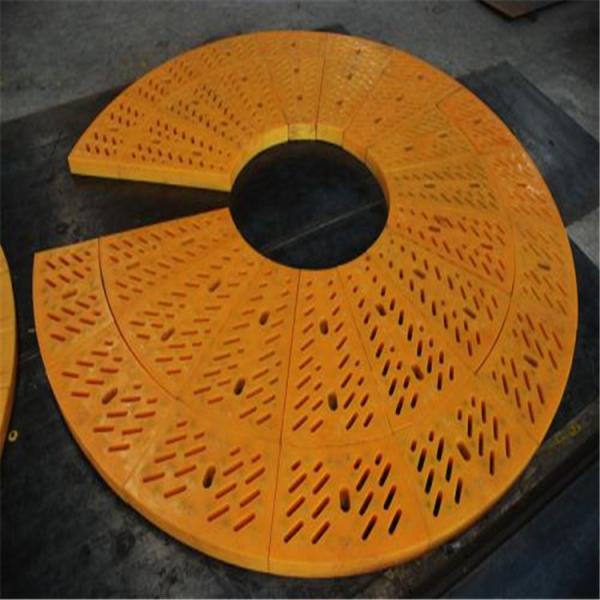

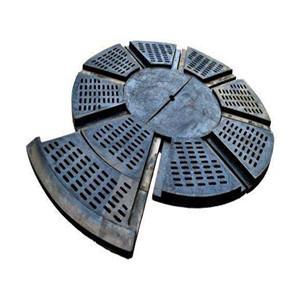

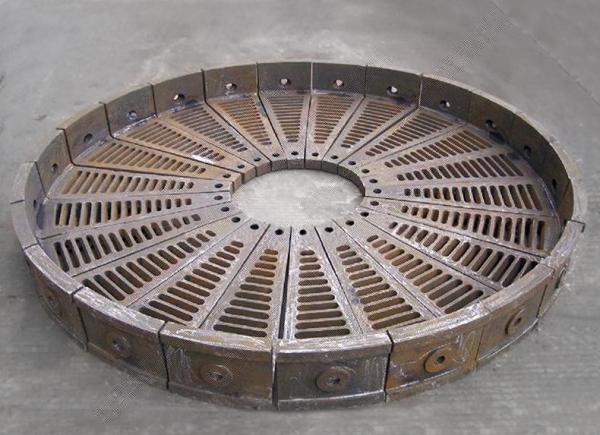

• Grates
• Pulp lifters
• Filler rings

Ball Mill Liners:

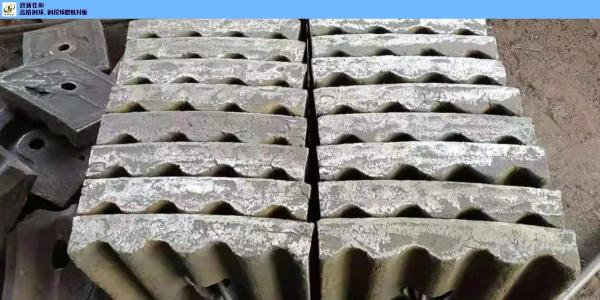

• Single wave liners
• Modified single wave liners
• Double wave liners
• Shell liners
• Feed head liners
• Discharge end liners

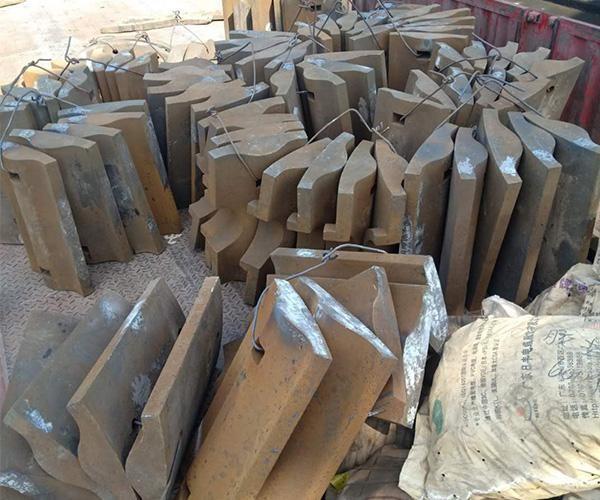

Rod Mill Liners:
• Shell liners
• Head liners
• “Wedge” shell liners

In the field of grinding mill components, We supply mill heads,feed inlet,grinding roller,cement kiln riding ring, casting gears, shaft block .Also we supply mill shell of welding structures and fabrications.

Quality assurance documents

The following reports are to be submitted to Quality Assurance:
a. Chemistry report
b. Physical report
c. Heat treatment documents
CITIC HMC Q/HM 973.2-2007
Specification for Steel Castings for Grinding Mills
1 5
d. Ultrasonic inspection report (before and after repairs)
e. Magnetic particle inspection report (before and after repairs)
f. Dimensional report
g. Weld repair maps
h. Weld procedures and Procedure qualification record
i. Welder qualification
j. Nondestructive testing inspector qualification
