Specifications
Place of Origin :
Henan, China
Brand Name :
ZTIC
Model Number :
3-16m
Supply Ability :
2000 Set/Sets per Year
Packaging Details :
Simple packaging for ring gear
MOQ :
1 Set/Sets
Price :
negotiable / Set
Certification :
ISO, CE, ROHS
Delivery Time :
1-2month
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Girth Gear :
Rotary kiln Girth Gear and ball mill Girth Gear
Diameter :
Min 100 mm to16000 mm Girth Gear
Weight :
Max 120 MT single piece
module range :
10 Module to 70 Module
Standards/Certificates :
UNI EN ISO, AWS , ASTM ,ASME , DIN
Maximum module :
45 by hob
Applications :
Our girth gears are applied in the cement and minerals industries
Kiln Girth Gears :
We are leading supplier the Kiln Girth Gears for the various plants
ball mill Girth Gear :
applied in the cement and minerals industries
Gear Cutting Machines :
16m CNC Hobbing Machine
Material :
Steel 42CRMO/17crnimo6
Application :
Rotary kiln and ball mill and construction machines
Dimensions :
Girth Gear
Port :
QingDao,ShangHai,TianJian
Description

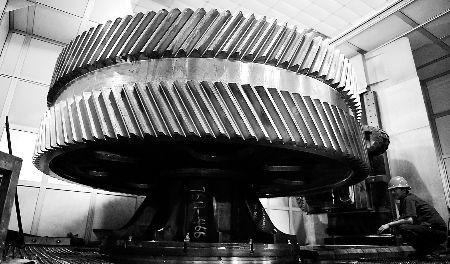

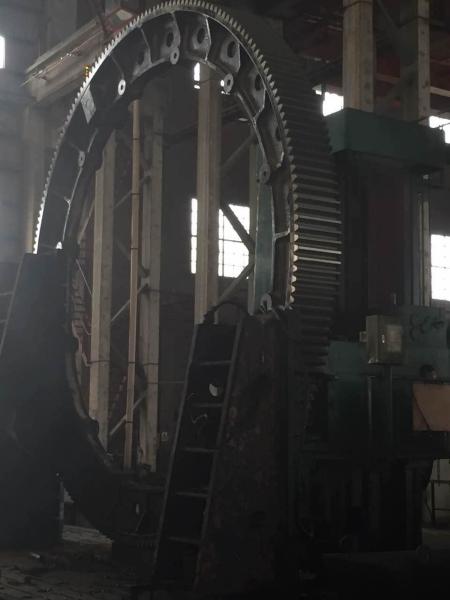

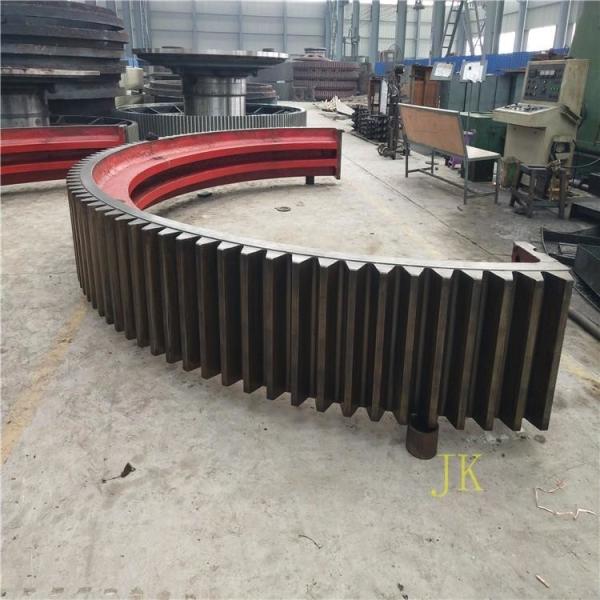

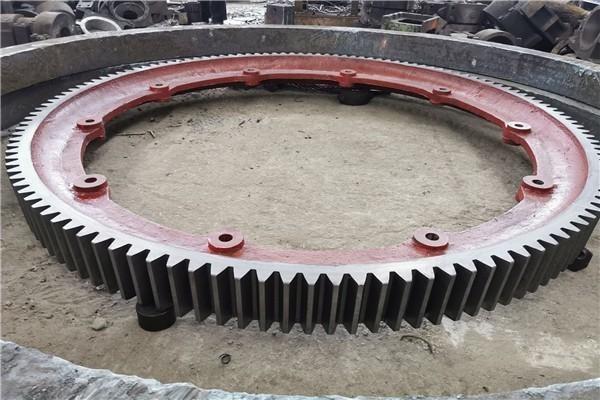

Ball mill cast steel large ring gear separation ring gear
Product Description

Product Name

Steel girth spur gear

Weight

Max 120 MT single piece

Applications

industries

Module Range

10 Module to 70 Module.

Diameter

Min 100 mm to16000 mm.

Weight

Max 120 MT single piece.

Gear Cutting Capacity

100mm diameter to 16000mm diameter,10Module to 70Module

External teeth
Maximum diameter 16000 mm
Toothed face width 1700 mm
Maximum module 45 by hob
Maximum module 65 gear finishing cutter
Internal teeth
Maximum Diameter 6500 mm
Maximum module 25.4
Toothed face width 400 mm

Girth Gears offered find extensive application in different industry sectors including in sponge iron plants, steel & cement industry, mining industry, wind mills as well as in other industry sectors. These are made available in module range of 10 Module to 70 Module and in minimum diameters of 100 mm to 15000 mm. Further, these comprise maximum weight of 70 MT single pieces. Here the range of hardened & ground gear boxes/gears comprise Worm gear boxes, Helical / Double helical gears/gearboxes, Helical-Bevel gearboxes, Planetary Gearboxes and others.

CITIC IC Gear Cutting Machines include:

  • Ø16m CNC Hobbing Machine
  • Ø12m Gear Cutting Machine (Switzerland)
  • Ø10m Hobbing Machine (Germany)
  • Ø4m CNC High Speed Hobbing Machine (Germany)
  • Ø1.6m Horizontal CHC Hobbing Machine (Germany)
  • Ø5m CNC Profile Gear Grinding Machine (Germany)
  • Ø2.8m CNC Profile Gear Grinding Machine (Germany)
  • Ø1.25m CNC Profile Gear Grinding Machine (Germany)
  • Ø1m CNC Profile Gear Grinding Machine (Germany)
  • Ø0.8m CNC Profile Gear Grinding Machine (Germany)
  • Automatic positioner

Module Range: 10 Module to 70 Module.

Diameter : Min 100 mm to16000 mm.

Weight : Max 120 MT single piece.

Hardened & Ground Gear Boxes/Gears:

  • Worm gear boxes
  • Helical / Double helical gears/gearboxes
  • Helical-Bevel gearboxes
  • Planetary Gearboxes
  • Hardened & Ground Helical- bevel gears & Spiral-bevels gears/gearboxes.
  • Rack & Pinions
ball mill Girth Gear and rotary kiln girth gear with 42crmo steel
FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.

Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
