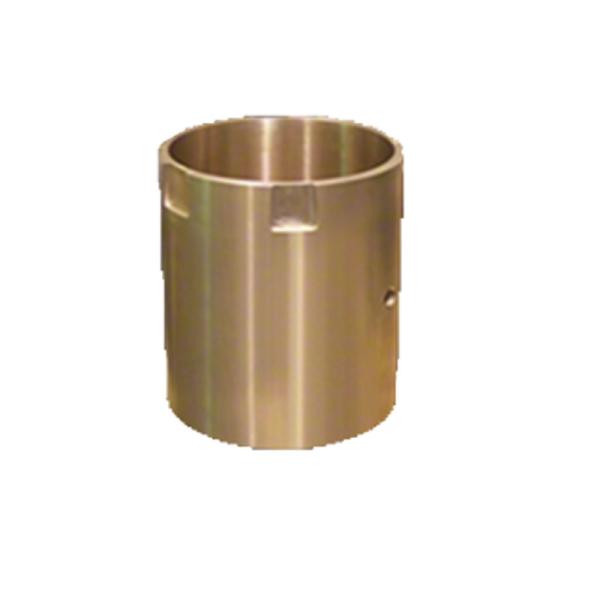

2FT And 3FT Copper Main Shaft Bushing Mining Machine Spare Parts
2FT And 3FT Copper Main Shaft Bushing Mining Machine Spare Parts
2FT And 3FT Copper Main Shaft Bushing Mining Machine Spare Parts
2FT And 3FT Copper Main Shaft Bushing Mining Machine Spare Parts
Specifications
Place of Origin :
Henan, China
Brand Name :
ztic
Model Number :
Custom Made bushing
Supply Ability :
1000 Set/Sets per Day
Packaging Details :
simple packing for Cone Crusher Bushing
MOQ :
1 Set/Sets
Price :
$100.00 - $200.00 / Set
Certification :
ISO/CE
Type :
Sleeve
Material :
Copper
Bush types :
Tube
Name :
Cone Crusher Bushing
Product Material :
Stainless Steel+Bronze Powder+PTFE
Lubricating :
Carbon
Features :
Long Life
Standard :
ISO9001:2008
Application :
Used for cone crusher main shaft
Finishing :
Lead
Color :
White
Certificate :
ISO 9001:2008
Port :
qingdao tianjin shanghai
Description
Hydraulic cone crusher parts high manganese steel main shaft bushing

Cone Crusher Bushing Description:

Except the mantle and concave, we can also supply most others spare parts for the crusher, such as : Main frame assembly , main shaft assembly, adjustment ring assembly, head assembly, bowl assembly, movable jaw assembly, wear plate assembly, eccentric bushing,main frame bushing, protection bushing, upper bushing, all kinds of seal ring, wedges, we get these original parts from the same OEM factory, that’s why we can promise the 100% original quality.

Cone Crusher Bushing Feature:

1. Precise dimension

2. Excellent surface finish and detail handling

3. High wear resistance and long working life

4. Low friction

5. Low moisture absorption

6. OEM available

Cone Crusher Bushing Features

1, High wear-resistant

2. Corrosion resistant

3. Excellent compression capaility

Cone Crusher Bushing Material grades:

1. Tin bronze series: 6-6-3 5-5-5 10-2 10-5 8-4

2. Phosphor bronze series: 10-1 6.5-0.1 7-0.2 8-0.3

3. Lead bronze series: 10-10 12-8 17-4-4 20-5 25-5 ZCuPb30

4. Silicon bronze series: ZCuSi3Mn1 ZCuSi1Mn3

5. Brass series: H62.H65.H68 59-1 58-2 16-4 40-2 58-2-2 66-6-3-2

Product name Inner eccentric bush

Material

Tin bronze (C83600/C93200/CuSn12/CuSn7Zn4Pb7);

Copper Alloy; Lead Bronze;

Aluminum Bronze (C62900/C95400/C95500/CuAl10Fe5Ni5)
Model

2ft,3ft,4 1/4 ft,5 1/2 ft,7ft,Φ1300,Φ1600,Cs240 etc.

Cone crusher complete cast copper parts
ID 20-1000mm
OD 25-1500mm
Standard ASTM/ JIS/ ASME/ AISI/ EN/ BS
Production process Sand casting,metal mold casing,centrifugal casting
Other accessories Eccentric bush,socket liner,main shaft sleeve,frame bushing,thrust bearing plate,driving shaft sleeve


2FT And 3FT Copper Main Shaft Bushing Mining Machine Spare Parts2FT And 3FT Copper Main Shaft Bushing Mining Machine Spare Parts

FQA

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time :

A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms :

A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?

A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.

After-sales service

LUOYANG ZHONGTAI INDUSTRIES able to provide:

1. ENGINEERED SPARES - DESIGN AND MANUFACTURING

2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES

5. PREVENTATIVE MAINTENANCE PROGRAMS

6. PREVETATIVE MAINTENANCE SERVICES

7. COMPREHENSIVE MAINTENANCE PROGRAMS
