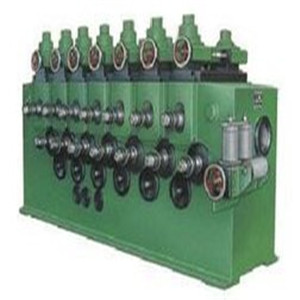

Tube Straightening Metallurgy Machine
Tube Straightening Metallurgy Machine
Tube Straightening Metallurgy Machine
Tube Straightening Metallurgy Machine
Tube Straightening Metallurgy Machine
Tube Straightening Metallurgy Machine
Tube Straightening Metallurgy Machine
Tube Straightening Metallurgy Machine
Specifications
Place of Origin :
Henan, China
Brand Name :
CITIC LK
Certification :
ISO/CE
Supply Ability :
1000 Set/Sets per Year
Packaging Details :
Simple packaging for tube straightening machine
MOQ :
1 Set/Sets
Price :
$20,000.00 - $300,000.00 / Set
Condition :
New
Type :
Straightener & Cutter
Use :
Bar
Voltage :
straightening machine
Power(W) :
straightening machine default
Dimension(L*W*H) :
tube straightening machine
Weight :
bar straightener machine
Warranty :
1 YEAR
After-sales Service Provided :
Field maintenance and repair service, Online support
straightening machine :
bar straightening machine and tube straightening machine
Model :
JBL/JGL straightening machine
JBL bar straightener machine :
JBL-70~JBL150 straightening machine
JGL tube straightening machine :
JGL-32~JGL-680 straightening machine
Min Tube Diameter mm :
20-200
Max Tube Diameter mm :
70-680
Max Tube Thickness mm :
10-100
Yield strength Mpa :
650-1380
straightening speed m/min :
≤160
Straightness m/mm :
0.8/1000
Port :
QingDao,ShangHai,TianJin
Description
Product Description

Tube straightening machine and Bar straightening machine

Citic company after many years of development practice, formed the straightening machine series product, straightening machine technology in the China advanced level, can satisfy the φ20 ~ φ680 mm metal pipe, bar straightening , straightening accuracy: 0.5/1000 mm.

CITIC straightening machine series products including JBL bar straightener and JGL tube straightening machine.

Tube Straightening Metallurgy MachineTube Straightening Metallurgy Machine

Tube straightening machine | bar straightener technical features :

Bring about straightening of tubes, bar yield limit range, up to 1300 mpa

Bring a wide range of straightening the diameter of the rod for of Φ 20 ~ Φ 150 mm, tube for Φ 8 ~ Φ 680 mm

Bring about straightening accuracy is high, up to 0.4 per thousand

Bring about straightening speed is high, up to 3 m/s

Bring about the use of special roll shape curve of the design

Bring used to stress frame, good rigidity, light weight

Bring the main drive system driven by dc motor, thyristor power supply, stepless speed regulation

Bring all the main auxiliary work for industrial control and PCLS PLC control, can according to user requirements configuration closed loop and open loop control, and is equipped with the adjustment, manual and automatic control

Bring quick roll gap adjustment, and have the function of data memory and network transmission

Tube Straightening Machines

CITICIC offers several choices of machinery for straightening metal tube. Specifically the range of machines covers machines with 6 -11 rolls. All of our machines feature pairs of vertically opposed, driven rolls.

  • 6 - roll machines can straighten to at least 1 in 1000
  • 10 - roll precision machines straighten to at least 1 in 2500

Our history in the production of 6 roll rotary straightening machines goes back to the dawn of tube straightening. For many applications, 6 roll machines will continue to be the standard machine in use around the world.

Bar Straightening Machines

Precision round bar straightening & burnishing machines manufactured by Turner are of the two roll, adjustable angle type. This range of machinery is generically from Wyko, we continue to use the WVBR model references. These machines are recognized for the potential to precisely straighten ferrous and non-ferrous round bars. All machines are supplied with our over-load hydraulically operated system which prevents damage to the rolls or machine structure. This feature allows the operator to pre-set the load that is applied to the bar is it passes through the machine. The mechanical design of each model is extremely robust and the machines are suitable for heavy duty mill applications.

The machines feature all the latest Turner refinements and when married to our CASAM computer setting system are state of the art round bar straighteners.

The machines are complimented by a wide range of bar handling equipment that can be customized to suit customers needs.

With their extensive knowledge of metal straightening, our engineers are able to solve the majority of round bar straightening problems.

We are the straightening experts ... It's all we do!

Tube straightening machine and Bar straightening machineTechnical Data:

Model NO Model Straight range correction straightening speed m/min Straightness m/mm
Min Tube Diameter
mm		 Max Tube Diameter mm Max Tube Thickness mm Yield strength
Mpa

Bar

straightening

machine

 1 JBL-70 20 70 ≤850 ≤60 0.8/1000
2 JBL-100 55 100 ≤850 ≤60 0.8/1000
3 JBL-130 50 130 ≤930 ≤60 0.8/1000
4 JBL-150 70 150 ≤850 ≤60 0.8/1000

Tube

stretching

machine

 1 JGL-32 8 32 10 650 ≤80 0.8/1000
2 JGL-70 20 70 15 650 ≤80 0.8/1000
3 JGL-130 22 130 25 650 ≤80 0.8/1000
4 JGL-180 47 180 25 1380 ≤180 0.5/1000
5 JGL-250 60 250 20 1380 ≤80 0.8/1000
6 JGL-273 70 273 30 650 ≤160 0.4/1000
7 JGL-325 80 325 60 850 ≤80 0.8/1000
8 JGL-346 100 346 20 1130 ≤80 0.8/1000
9 JGL-680 200 680 100 650 ≤80 0.8/1000
