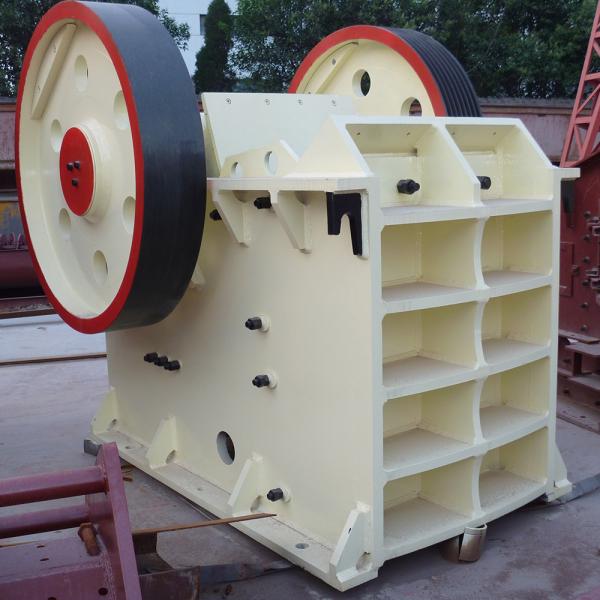

5-21 T/H Mini Small Stone Rock Jaw Crusher Energy Saving
5-21 T/H Mini Small Stone Rock Jaw Crusher Energy Saving
5-21 T/H Mini Small Stone Rock Jaw Crusher Energy Saving
5-21 T/H Mini Small Stone Rock Jaw Crusher Energy Saving
5-21 T/H Mini Small Stone Rock Jaw Crusher Energy Saving
5-21 T/H Mini Small Stone Rock Jaw Crusher Energy Saving
Specifications
Brand Name :
CITIC LK
Certification :
ISO/CE
Place of Origin :
Henan, China
MOQ :
>=1 Sets
Price :
$3,000.00
Supply Ability :
1000 Set/Sets per Year
Delivery Time :
1-2months
Packaging Details :
Standard packing or according to customer's requirement
Name :
Jaw Crusher
Application :
Rock Crusher and stone crusher
Motor Type :
AC Motor
Model :
PE400*250
Capacity(t/h) :
5-21T/h
Weight :
2.6T
Feeding size :
250*400mm
Maximum feed size :
210mm
Adjusting range of dischaiging opening :
20-80mm
Rotation speed of eccentric shaft :
300r/min
Power :
150kw
Dimension :
1450*1315*1296mm
Description

Energy Saving Factory Price Mini Small Stone Rock Jaw Crusher For Sale

Product Description

PE series jaw crushing machine as the preferred device for crushing all kinds of rock crushing operations less compressive strength 320 Mpa, ore and other materials are widely used in mining, metallurgy, building materials, transportation, ceramics, chemicals, electricity, infrastructure and other fields. It is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing.

5-21 T/H Mini Small Stone Rock Jaw Crusher Energy Saving

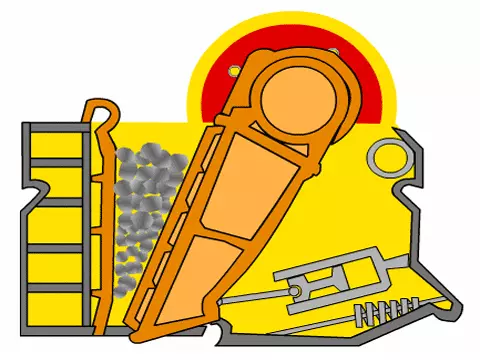

Working principle
Jaw crusher electric motor drives the belts and the belt wheel make the movable jaw up and down through the eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the angle becomes bigger, the crushed materials are discharged from the crushing cavity.
5-21 T/H Mini Small Stone Rock Jaw Crusher Energy Saving
5-21 T/H Mini Small Stone Rock Jaw Crusher Energy Saving

Main features

1. Model for the latest products, a wide range of applications, with a compact structure, long service life, and high work efficiency.
2. Adjustable for easy wear parts, Easy replacement of wear and spare parts.
3. High capacity, less costly and Easy to install.
4. The machine has a large crushing ratio, uniform product size, simple structure, convenient maintenance, can crush the compressive strength of a variety of materials is not more than 320 MPa, is the first choice for primary crushing equipment.
5. First-class technology, reliable pre-sale customer service quality.

Product tags

portable stone crusher

,

small stone crusher

,

mini stone crusher
