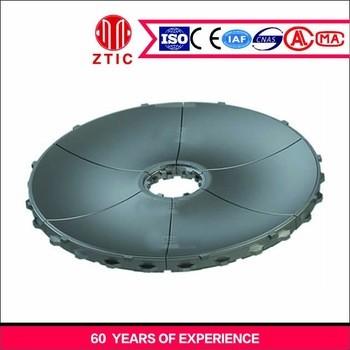

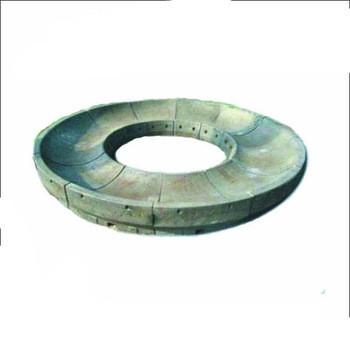

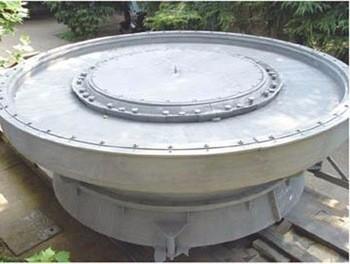

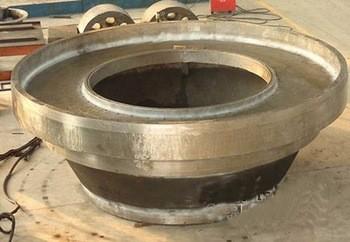

Casting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant
Casting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant
Casting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant
Casting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant
Casting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant
Casting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant
Casting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant
Casting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant
Casting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant
Casting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant
Specifications
Brand Name :
ZTIC
Model Number :
Customized
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 sets per month
Delivery Time :
1-2 months
Packaging Details :
regular packing
Material :
ZG45
Overlay material :
chromium carbide overlay
thickness :
customize
Chemical composition :
C: 3.0-5.0 % Cr: 25-40 %
Technology :
Hardfacing, open arc welding, submerged arc welding
Application :
Mining, Steel, Cement, Power, Port, Glass, Coal, etc.
Description

Wear parts such as tires, grinding ring segments, armor rings and spindle shields are made from our wear resistant welding material ,and treated for optimum mechanical properties. Tires and grinding ring segments are also accurately machined to tight tolerances for precise fit.
Parts requiring drilled or tapped holes such as roller bosses, clamping rings and dam ring segments are made of carbon steel or high strength steel. They are treated to provide the best combination of hardness and toughness for long, trouble-free service.

Casting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant
Composite wear-resistant steel plate radiating range is very wide, it can used in any equipment where the most serious wearing place in cement, glass, power, steel, chemical and other industries.Hard plate wear –resistance division manufactured composite wear-resistant steel plate, surfacing on a deposited layer of certain thickness wear-resistant alloy, hardness reaches to HRC58-62 which makes the plate wear-resistant and service life over 16Mn steel plate more than 14.6 times, at the same time with a good impact-resistance, heat-resistance, high abrasion resistance and other advantages.

Casting Steel Mining Machine Spare Parts Grinding Table High Wear ResistantCasting Steel Mining Machine Spare Parts Grinding Table High Wear Resistant

Product Name
Chromium carbide overlay hardfacing grinding table for vertical mill
Base Material
ZG45
Overlay material
chromium carbide overlay
Standard
ISO9000
thickness
base +
layer=3+3,5+5,6+4,6+5,,8+4,,8+8,10+10,16+10,20+20,40+10,or
customize
Chemical composition
C: 3.0-5.0 % Cr: 25-40 %
Technology
Hardfacing, open arc welding, submerged arc welding
Application
Mining, Steel, Cement, Power, Port, Glass, Coal, etc.

Main production equipment list

NO. Equipment list Spec Unit Quantity(set)
Total Own Lease New purchase
1 CNC vertical lathe Φ8000mm Set 1 1
2 CNC vertical lathe Φ5000mm Set 1 1
3 CNC vertical lathe Φ2500mm Set 3 1 2
4 CNC forming mill YK73125 Set 1 1
5 Gear hobbing machine 3.2m Set 2 2
6 Gear hobbing machine 8m Set 1 1
7 Gear hobbing machine 14m Set 1 1
8 C650 lathe CW6160B Set 3 3
9 C630 lathe C630 Set 4 4
10 Heavy sleeper Φ6*20m Set 2 2
11 Heavy sleeper Φ2*100m Set 3 2 1
12 Digital display boring and milling machine TX611/4 Set 2 2
13 220Boring and milling machine B665 Set 1 1
14 Universal milling machine X63W Set 1 1
15 80Radial drilling machine Z3080X26 Set 6 3 3
16 Hard bearing balancing machine YYW-3000S Set 1
17 AC electric welding machine B×3-630-2 Set 9 5 4
18 DC electric welding machine SS400 Set 8 3 5
19 100 ton gantry crane MG100/10 Set 1 1
20 Double beam bridge crane QDA5.32/5 Set 3 2 1
21 Double beam bridge crane QDA5.150/10 Set 1 1
22 CNC blanking Set 1 1
23 Rolling machine δ=100 Set 1 1
