Specifications
Brand Name :
ZTIC
Model Number :
2PGC Roller Crusher
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Standard shipping packaging
Model :
S800
Roller diameter mm :
800
Capacity t/h :
2-5
Broken materials :
PLASTIC, METAL
feeding size mm :
800
Discharging size mm :
0-50
feature :
large processing capacity
advantage :
lower maintenance cost
Description

Shredder Application and Features

It is mainly used for crushing packing belt, tire, film, woven bag, fishing nets and other plastic waste utilization.The biaxial independent drive ,Unique knife shaft structure and a four angle rotary knife ,In the production process of high torque in low speed,No shaft winding ,clamping device phenomenon ,Improve production efficiency .

shredder Main technical parameters

Shredder Model SX-B 600 SX-B 800 SX-B 1000 SX-B 1200 SX-B 1600
Diameter Rotary 255mm 255mm 300mm 300mm 300mm
Rotate the number of knives 60pcs 78pcs 96pcs 114pcs 1501pcs
Rotate the cutter shaft speed 90rpm 90rpm 90rpm 90rpm 90rpm
Number of fixed knives 4pcs 4pcs 4pcs 8pcs 8pcs
Maximum yield 650kg/h 900kg/h 1000kg/h 1200kg/h 1500kg/h
Feeding caliber 700mm*800mm 880mm*1100mm 1070mm*1150mm 1280mm*1300mm 1650mm*2000mm
Power of main motor 18.5KW*2 22KW*2 30KW*2 37KW*2 45KW*2
Host weight 4000kg 5400kg 6200kg 8000kg 9500kg


plastic shredder for plastic recycling plant and shredder machine with 2-3tph

plastic shredder for plastic recycling plant and shredder machine with 2-3tph

plastic shredder for plastic recycling plant and shredder machine with 2-3tph

The common structure of shredding machine mainly has two axis (or four axis) shear type, single axis roller cut coarse crushing with tear type and so on three kinds.

1) shear shredder

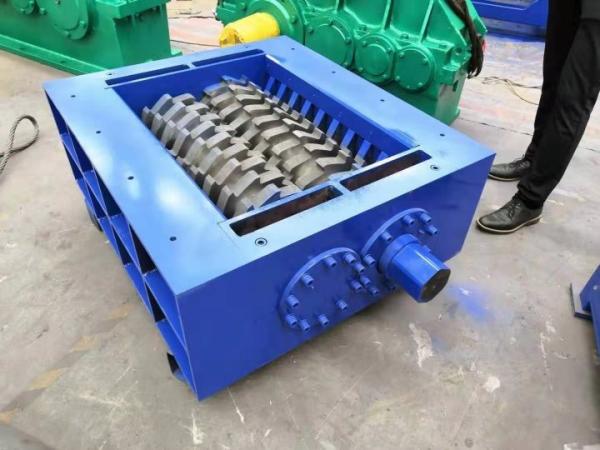

The most common is the shear crusher, he has two to four knife shaft, mainly rely on the principle of "cut and cut" to complete the crushing process, the knife structure is shown in the following figure.The principle of the shredder is to shatter objects like scissors.

2) Roller cutting mill

The following figure is the structure of a roll cutting mill.The machine is mounted on a rotating knife roller with a plurality of blades, and the fixed blade to form a pair cutting, to complete the effect of material crushing.

3) Tear coarse crusher

The principle of tear type coarse crusher is to shake the hook to tear garbage material.This type is mainly used for coarse crushing

item description
type one shaft, two shaft
materials plastic, metal recycling
