High Mn Imbedding Cemented Tungsten Carbide Hammer Inlaid Alloy Hammer
High Mn Imbedding Cemented Tungsten Carbide Hammer Inlaid Alloy Hammer
High Mn Imbedding Cemented Tungsten Carbide Hammer Inlaid Alloy Hammer
High Mn Imbedding Cemented Tungsten Carbide Hammer Inlaid Alloy Hammer
High Mn Imbedding Cemented Tungsten Carbide Hammer Inlaid Alloy Hammer
High Mn Imbedding Cemented Tungsten Carbide Hammer Inlaid Alloy Hammer
High Mn Imbedding Cemented Tungsten Carbide Hammer Inlaid Alloy Hammer
High Mn Imbedding Cemented Tungsten Carbide Hammer Inlaid Alloy Hammer
High Mn Imbedding Cemented Tungsten Carbide Hammer Inlaid Alloy Hammer
High Mn Imbedding Cemented Tungsten Carbide Hammer Inlaid Alloy Hammer
Specifications
Brand Name :
ZTIC
Model Number :
According to customer demand
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 sets per month
Delivery Time :
30 days
Packaging Details :
Standard shipping packaging
Product name :
Hammer crusher Hammer
Item :
High Chrome Crusher Hammer
Material :
High Chrome
Quality Guarantee :
One year
Molding Process :
Water-glass sand casting or lost form casting
Control :
Spectrometer chemical analysis and control while producing
Melting facility :
Medium frequency electric furnace
Heat Treatment :
Anneal, quenching, tempering
Testing :
Hardness, flaw detector test
Certificate :
ISO/CE
Description

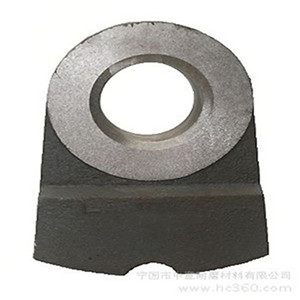

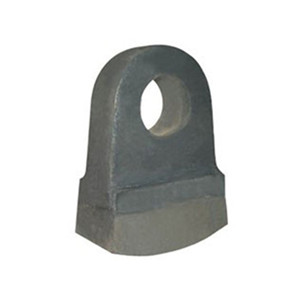

High Mn imbedding cemented carbide hammer Inlaid Alloy Hammer

alloy steel hammer

The alloy steel material that be crushed by hammer crusher is a tremendous difference. The crusher has different forms and hammers. In the condition of crush hard and tough material such as iron raw, Our high Cr bimetal hammer could bear the cutting from the material but easy be come off or break for the hammer’s toughness property is not good. Though the toughness of supper Mn steel is higher but the wear resistant property is not enough. So hammer and blow bar made from high Mn imbedding cemented carbide is the best choice.

The High Mn imbedding cemented carbide hammer(Inlaid Alloy Hammer / alloy hammer/hammer mill) product made by our company use the wear resistant bar made from higher content nano-sized tungsten carbide and titanium carbide. The Rockwell hardness of wear resistant bar is 80HRA~90HRA. We will make the hammer’s matrix with high Mn or super high Mn according to the complexity of hammer mill. We make sure of the 100% metallurgical bonding of the alloy steel material bar surface and matrix by the method of blowing argon at bottom of furnace, diversified qualitative change, diversified inoculation, and appropriate casting, smelting, heat treating.These processing measure increase the combination property of the High Mn imbedding cemented carbide products made by our company. This kind of alloy steel material hammer is widely used in hammer mill. We meet with great favor from our customers at home and abroad.

Specifications:

Standard Chemical component %
C Mn Si Cr S P
ZG120Mn13Cr2 1.05~1.35 11~14 0.3~0.9 1.5~2.5 ≤0.04 ≤0.04
ZG120Mn17Cr2 1.05~1.35 16~19 0.3~0.9 1.5~2.5
Notes:Allowed to join trace V,Ti,Ba and RE and so on.

The mechanical properties of the matrix:

Standard Lower yield strength Rel
MPa		 Tensile strength Rm
Mpa		 The section elongation A% Shock absorption KU2
J		 Hardness HBW
ZG120Mn13Cr2 ≥390 ≥735 ≥20 — ≤300
