Specifications
Brand Name :
ZTIC
Model Number :
According to customer demand
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Standard shipping packaging
Product name :
Mine Hoist Disc brake
Rated load(kg) :
20000
Wire rope average speed(m/min) :
10
Wire rope(mm) :
39
Reduction box Transmission ratio :
31.5
Drum(mm)Diameter :
750
Length :
1830
Capacity(m) :
600
Power(kW) :
45
Weight(kg) :
8500
Description

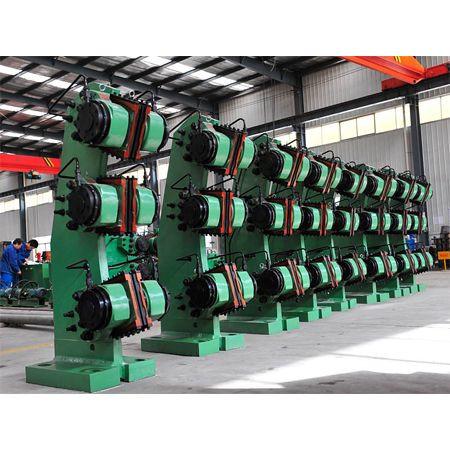

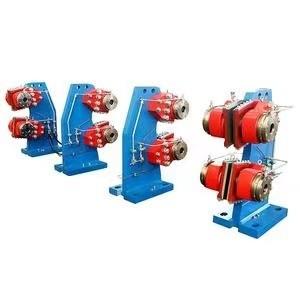

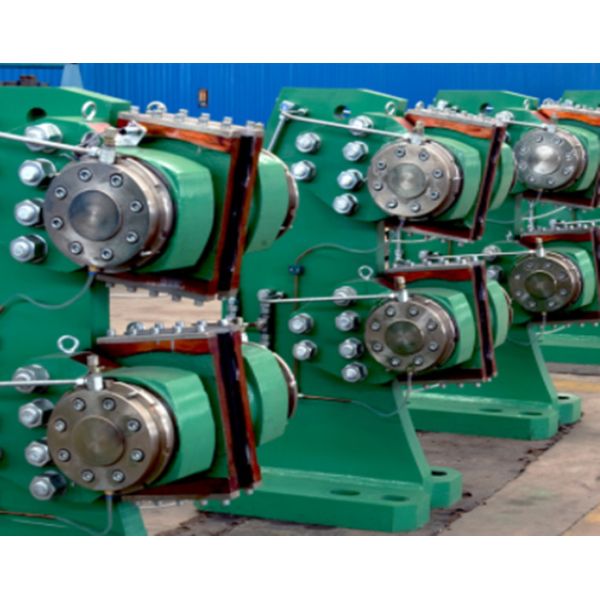

Mine Hoist Disc brake lifting equipment for mining with flexible action

This series mine winches for mining are mainly used for mine shaft and inclined shaft to life coal, ore, waste rock as well as lifting personal, materials, tools and equipment. The principle axis unit used split or integral type flexible struction drum and the drum suffers force uniformly with big strength. Disc brakes of mine winches are rear mounted fuel tank with flexible action. The hydraulic can delay secondary brake, and it can be automatically released in wellhead. Double-drum hoisting machine has rope-adjusting cluth with radial teeth. Transmission parts can be equipped with planetary reducer or parallel axis hardened reducer. Electrical parts of mine winches has necessary protection and interlock device, and user can choose PLC electrical controller and frequency speed-changing electrical controller. Dynamic braking of mine winches is also available on request.

mining Mine Hoist Disc Brake pads Lifting Equipment With Flexible Action

mining Mine Hoist Disc Brake pads Lifting Equipment With Flexible Action

Technical data

Model JM12 JM15 JM20 JM25 JM30
Rated load(kg) 12000 16000 20000 25000 30000
Wire rope average speed(m/min) 10 10 10 10 10
Wire rope(mm) 32 36.5 39 42 48
Reduction box Type JZQ650 JZQ750 JZQ750 JZQ750 JZQ850
Transmission ratio 40.17 31.5 31.5 31.5 23.34
Drum(mm) Diameter 650 750 750 850 960
Length 1000 1300 1830 1925 1960
Capacity(m) 500 600 600 700 650
Motor Type YZR250M2-8 YZR280S-8 YZR250M2-6 YZR280S-6 YZR280M-6
Power(kW) 37 45 45 55 75
Rotate speed(r/min) 725 717 965 969 969
Electric-hydraulic Brake Type YWZ-300 YWZ-400 YWZ-400 YWZ-400 YWZ-400
Dimension(cm) 250*190*120 390*300*245 400*300*170 412*300*200 450*300*250
Weight(kg) 5500 7500 8500 9500 11000
