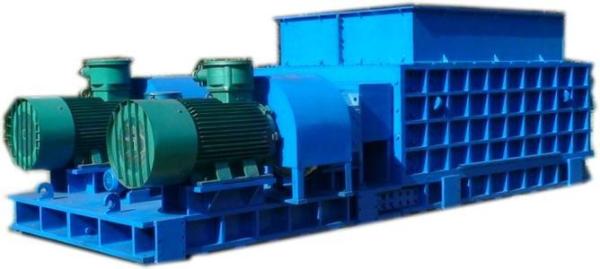

1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
Specifications
Brand Name :
CITIC LK
Model Number :
PGC Tooth Roller Crusher
Certification :
ISO CE
Place of Origin :
Henan, China
MOQ :
>=1 Sets
Price :
$15,000.00
Payment Terms :
T/T, L/C
Supply Ability :
2000 Set/Sets per Year Double Roller Crusher
Packaging Details :
Simple Package for duble roller crusher
Name :
Tooth Roller Crusher
Condition :
New
Application :
Shale crusher and Coal Crusher
Motor Type :
AC Motor
Warranty :
12 Months
Broken materials :
Raw coal,limestone
Power :
2-315kv
feeding size :
0-1800
output size :
0-50
Port :
QingDao,ShangHai,TianJin
Description
High quality fine sand making double roller crushing machinery roll crusher
Product Description
This roll crusher is a crushing equipment developed by our company for coarse and fine crushing. The roller crusher is widely used in metallurgy, building materials, refractory materials and other industrial sectors to crush medium and high hardness materials. It has the characteristics of low noise, less dust, reliable performance and convenient maintenance.

The main structure of the wheel gearing is composed of fixed roll, movable roll, drive shaft, machine box, chassis, cover piece, and long gear cover. The motive power of the machine comes from the V-belt pulley of the electro motor, and a pair of middle reduction gear will make the fixed roll rotate, and then a pair of long gear drive on the other side of the fixed roll will drive the movable roll, and the two rolls perform relative movement to squeeze the materials.

The big size material drops evenly into the clearance between two rollers. At the impact of two rollers'contrary rotation, the materials are extruded and crushed to the desirable size.

Model Roller diameter mm Capacity t/h Broken materials feeding size mm Discharging size mm
2PGC-1630 Φ1630 2350 Raw coal 0-1800 0-300
2PGC-1370A Φ1370 2000 stone,coal 0-1500 0-300
2PGC-1370B Φ1370 2000 limestone 0-1500 0-300
2PGC-1270 Φ1270 1200 Raw coal 0-1200 0-300
2PGC-980 Φ980 500 coal 0-1000 0-200
2PGC-600 Φ600 100 limestone 0-300 0-100
2PGC-550 Φ550 80 coal 0-300 0-50
2PGCF-820 Φ820 2000 Raw coal 0-330 0-50

1630mm 2350TPH Double Roller Crusher and coal mine tooth roller crusher factory
Our Services
Aftersales service

LUOYANG ZHONGTAI able to provide:

1. ENGINEERED SPARES - DESIGN AND MANUFACTURING

2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES

5. PREVENTATIVE MAINTENANCE PROGRAMS

6. PREVETATIVE MAINTENANCE SERVICES

7. COMPREHENSIVE MAINTENANCE PROGRAMS

LUOYANG ZHONGTAI’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI brand group products but are capable of undertaking the servicing of other OEM brands.

Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.

LUOYANG ZHONGTAI also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.

Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
