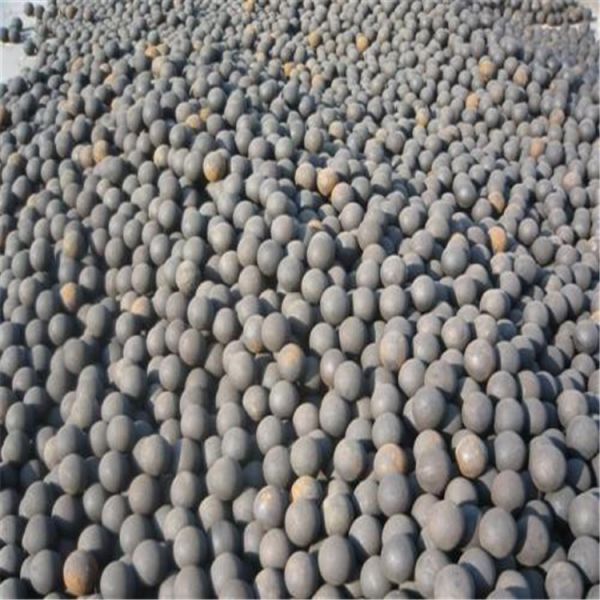

Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
Specifications
Place of Origin :
Henan, China
Brand Name :
CITIC IC
Model Number :
Grinding Media
Certification :
ISO9001:2008/CE
Supply Ability :
100000 Ton/Tons per Year
Packaging Details :
Simple packaging for cast grinding ball
MOQ :
10 Piece/Pieces
Price :
$750.00 - $1,250.00 / Piece
Product name :
grinding ball
Name :
ball mill grinding ball
Service :
OEM Service
Keyword :
grinding media ball
Size :
22 mm to 165 mm
Type :
High chromium steel ball;High chromium steel forging;
Surface :
HRC55~64
Hardness :
HRC55-65
CORE :
52~63
Material :
Steel
Application :
Ball mill,grinding mill
Dimensions :
Ball mill grinding balls
Port :
QingDao,ShangHai,TianJin
Description

company information

Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball

Product Description

Cement ball mill High Chrome Iron Casting grinding media and grinding steel ball

CITICIC has the capacity to deliver premium quality forged grinding balls of all sizes ranging from 22 mm to 165 mm (7/8” to 6½” aprox.) and in two grinding balls product lines: LK SAG, for SAG mills, and LK Grind, for ball mills.


Why choose Ball mill grinding balls :

Quality Management System certified ISO 9001:2008.
We use the highest quality bar stock available, made with "clean steel" technology.

Rigidly managed forging process ensuring spherical ball shape.
High end heat treatment technology, based on CITICIC Elecmetal’s years of metallurgical experience guaranteeing long wear life
Logistics is a key part of CITICIC Elecmetal grinding media offer: We currently have 8 distribution centers close to our customer base and are in process of adding more.

1 SAG Mill grinding balls GENERAL DESCRIPTION

CITICIC provides grinding balls 100 - 165 mm (4" - 6.5" aprox.), specially designed for SAG mills.

CHEMISTRY

Limits C Mn P
(max.)		 S
(max.)		 Si Ni
(resid.)		 Cr Mo Cu
(resid.)		 Al
Upper Limit 0.90 1.02 0.022 0.022 0.40 0.10 1.05 0.15 0.15 0.05
Lower Limit 0.70 0.80 - - 0.20 0.70 0.03 - 0.02

HARDNESS (HRC)

Series Surface
(min. - max.)		 Volumetric
(min. - max.)		 Center
(min.)		 Applications
HH Series 61 64 58 62 50 Mills with minimal ball to liner impact
S Series 58 62 56 60 50 Normal milling operation
T Series 56 60 55 60 50 Mills with higher chance of ball to liner impact

HRC: Hardness Rockwell

HH: High Hardness

S: Standard

T: Tough

2 CITIC IC Ball mill grinding balls GENERAL DESCRIPTION

CITICIC provides grinding balls 22 - 100 mm (0.88" - 4" aprox.), specially designed for ball mills.

CHEMISTRY

Limits C Mn P
(max.)		 S
(max.)		 Si Ni
(resid.)		 Cr Mo
(resid.)		 Cu
(resid.)		 Al
Upper Limit 1.00 1.00 0.025 0.025 0.30 0.10 0.50 0.01 0.15 0.05
Lower Limit 0.80 0.80 - - 0.20 - 0.40 - - 0.02

HARDNESS (HRC)

Series Surface
(min. - max.)		 Volumetric
(min. - max.)		 Center
(min.)		 Applications
ME Ultra Grind® 60 64 60 64 60 Ball mills

HRC: Hardness Rockwell

Wear resistant forged steel ball

(SIZES)

(SURFACE)

(CORE)

DIA 40-60 MM

HRC60-64

HRC59-63

DIA 70-80 MM

HRC60-64

HRC58-62

DIA 90-100 MM

HRC60-64

HRC57-61

DIA 110-140 MM

HRC55-60

HRC52-58

chemical composition

C

Si

Mn

P

S

Cr

0.72-0.82

0.17-0.37

0.7-0.8

0.035 MAX

0.035MAX

0.28-0.60

Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel BallCement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel BallCement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball

Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel BallCement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel BallCement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball

Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel BallCement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball

Grinding Ball Apps

GENERAL DESCRIPTION

This media guide is being provided by CITICIC to help you make the most effective use of grinding media in your mills. It includes the following sections.

SAG mills grinding balls
• Determination of your SAG mill’s power draw characteristics.
• SAG Mill Steel Charge Estimation tool provides an estimate of the percent steel in the charge of your SAG mill based on the power draw and the total charge volume.
• Ball impact energy chart to determine the impact energy of balls as a function of mill diameters.
• Glossary of the terminology and symbols used in this section.

Ball mills grinding balls
• Determination of the recommended size of grinding ball to add to your mill.
• Determination of your mill power draw characteristics, which are closely tied to the nature of the ball charge present in the mill.
• Determination of various characteristics of the ball charge in your mill which are important in terms of its grinding and wear performance.
• A glossary of the terminology and symbols used in this section.

Rod mills grinding balls
• Determination of the recommended rod size to add to your mill.
• Determination of your mill power draw characteristics.
• A glossary of the terminology and symbols used in this section.

Our Factory

Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball

Process Capability

Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball

Foreigner Visit

Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball

Packing

Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball

Certifications

Cement Ball Mill High Chrome Iron Casting Grinding Media And Grinding Steel Ball
