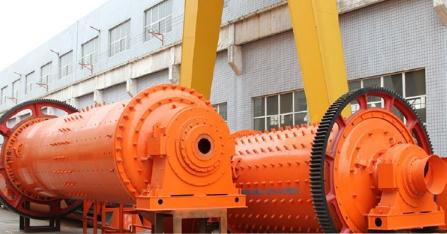

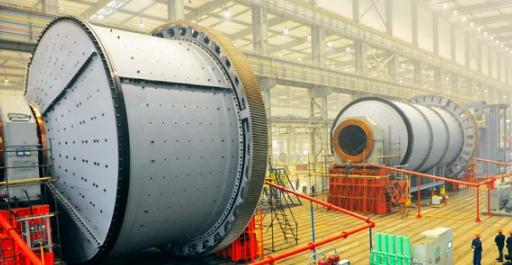

φ2.4x1.0m～φ12x11m Autogenous Mill And SAG Mill Ore Grinding Mill
φ2.4x1.0m～φ12x11m Autogenous Mill And SAG Mill Ore Grinding Mill
φ2.4x1.0m～φ12x11m Autogenous Mill And SAG Mill Ore Grinding Mill
φ2.4x1.0m～φ12x11m Autogenous Mill And SAG Mill Ore Grinding Mill
φ2.4x1.0m～φ12x11m Autogenous Mill And SAG Mill Ore Grinding Mill
φ2.4x1.0m～φ12x11m Autogenous Mill And SAG Mill Ore Grinding Mill
Specifications
Brand Name :
ZTIC
Model Number :
Ore Grinding Mill
Certification :
ISO, CE
Place of Origin :
Henan, China
MOQ :
>=1 Sets
Payment Terms :
T/T, L/C
Supply Ability :
100 Set/Sets per Year
Packaging Details :
Standard packing or according to customer's requirement
Product name :
SAG Mill
Type :
MZ32×12
Rotate speed :
740 r/min
Approx weight :
32.8 t
Motor Power :
160 kw
Drive mode :
Edge
Diameter of cylinder(mm) :
3200mm
Length of cylinder (mm) :
1200mm
Mill speed :
18.2 r/min
Classification :
Ore Grinding Mill
Description

Φ2.4x1.0m～Φ12x11m Autogenous Mill And SAG Mill Ore Grinding Mill

1. Luo mine AG Mill | SAG Mill of ore grinding mill products is introduced

Luo mine AG Mill | semi autogenous grinding machine typical products: complete cooperation with Fuller company to make 1992 Ф 5.5 x 8.5 m the overflow type ball mill; With the diameter of 5.03×6.4m export ball mill completed in 1993; In 2001, the diameter of 4.27×6.1m export large mine mill was developed. In 2004, we cooperated with Metso to manufacture the largest semi-autogenous mill with Φ8.53×3.96. In August 2005, it was contracted by Jinchuan Group with the diameter of 5.5×8.5m overflow ball mill. In May 2006, the company contracted a Φ5.49×8.8m overflow ball mill for Anshan Steel Group. In 2006, it cooperated with Meizuo to manufacture Kunsteel Dahongshan autogenous mill. In July 2006 for Ling Steel Group contracted Φ8.0 ×2.8 m automill.

2. Luo mine AG Mill | semi autogenous grinding machine specifications:(Ore Grinding Mill)

Taken from the mill | semi autogenous grinding machine: specifications from 2.4 x1.0 ~ phi phi 12 x11. 0 m, the effective volume of 5.6 ~ 216 m3 of various configurations of a variety of specifications;

3. Product parameters of ore grinding mil

Technical parameters of Luomine semi-autogenous mill

Model

Diameter of cylinder
(mm)

Length of cylinder
(mm)

 Effective volume
(m3)		 Mill speed
(r/min)

End cover structure form

Drive mode

 Motor spec
(Length × width × height)
(m)		 Approx weight
(t)		 Note
Power
(kW)		 Rotate speed
(r/min)
MZ24×10 2400 1000 4.5 22 weld edge 55 740 7.8×3.5×3.3 18.5
MZ32×12 3200 1200 9.2 18.2 weld 160 740 8×4.1×3.7 32.8
MZ40×14 4000 1400 16.6 17.6 weld 250 735 11.5×5×4.7 63
MZ55×18 5500 1800 34.6 15 cast 800 167 14.1×7×6.3 178
MZ64×33 6400 3300 107 12.8 cast 2000 200 23×10.3×9 306
MZ75×25 7500 2500 107 11.4 cast 2000 200 23×10.5×10 355
MZ85×40 8500 4000 225 102 cast 4850 200 27×14.2×12.9

Diameter of cylinder
(mm)

Length of cylinder
(mm)

 Effective volume
(m3)

Maximum ball load
(t)

 Working speed
(r/min)		 Main motor power
(kw)
4000 1600-3600 19-42 13-29 16.2 310-710
4500 1800-4100 27-61 19-43 15.3 470-110
5000 2000-4500 38-83 27-58 14.5 700-1500
5500 2200-5000 51-112 36-78 13.8 960-2200
6100 2400-5500 69-152 48-106 13.1 1400-3100
6700 2700-6000 93-201 65-140 12.5 2000-4300
7300 2900-6600 120-264 84-184 12 2600-5900
8000 3200-7200 160-347 112-242 11.4 3600-8100
8600 3400-7700 197-429 137-299 11 4600-10000
9200 3700-8300 246-530 172-370 10.7 5900-13000
9800 3900-8800 296-640 206-446 10.3 7300-16000
10400 4200-9400 359-770 250-537 10 9100-20000
11000 4400-9900 422-909 294-634 9.8 11000-25000
11600 4600-10400 492-1064 343-742 9.5 13000-30000
12200 4900-11000 580-1246 405-869 9.2 16000-36000

φ2.4x1.0m～φ12x11m Autogenous Mill And SAG Mill Ore Grinding Mill

φ2.4x1.0m～φ12x11m Autogenous Mill And SAG Mill Ore Grinding Mill
