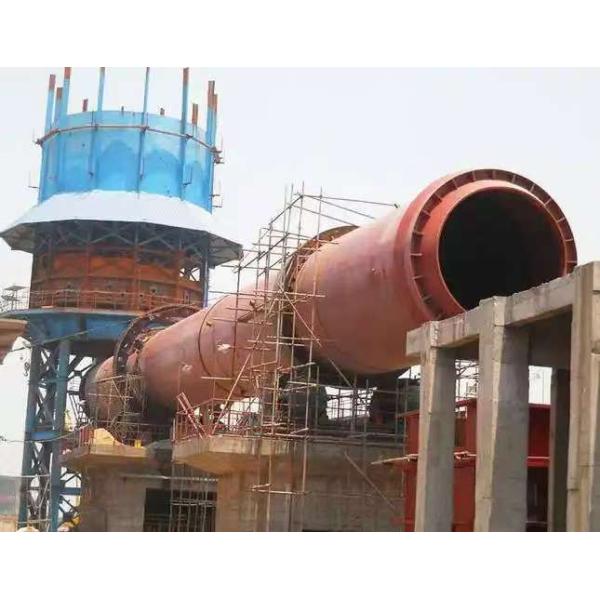

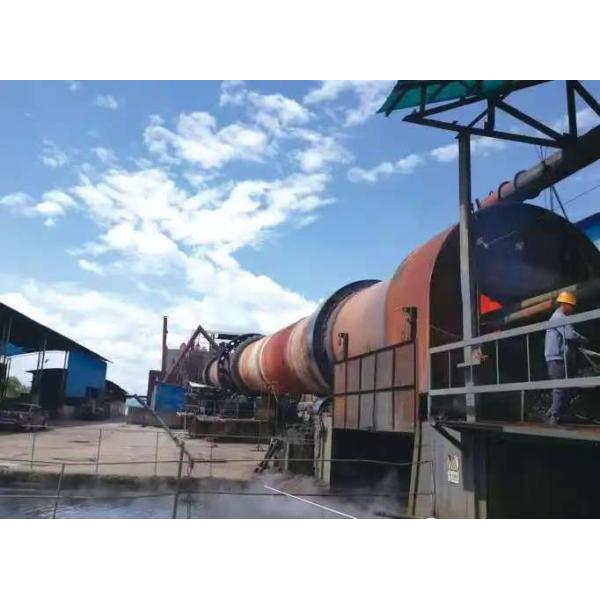

Metallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production Line
Metallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production Line
Metallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production Line
Metallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production Line
Metallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production Line
Metallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production Line
Specifications
Brand Name :
ZTIC
Model Number :
Cement Rotary Kiln
Certification :
ISO/CE
Place of Origin :
Henan，China
MOQ :
1 set/sets
Price :
negotiate
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Year
Packaging Details :
Standard packing or according to customer's requirement
Name :
Φ3.5×54m Zinc oxide rorary kiln
Condition :
New
Motor Type :
YSNP355M2-10
Supporting device :
split sleeve bearing
Production capacity :
600 t/d
Kiln head sealing device :
1450 t
Keyword :
China rotary kiln
Classification :
Cement Rotary Kiln
Port :
Qingdao China
After-sales Service Provided :
Online support, Field installation, commissioning and training, Video technical support
Weight :
341-637
Description

Company introduction

Our company is specializing in mining machinery and equipment manufacturers, ball mill, rotary kiln, elevator accessories, large casting and forging parts, size gear is the company's business strengths.We design and supply cement rotary kilns including dry cement rotary kilns, semi-dry cement rotary kilns and wet cement rotary kilns.

Product presentation

Metallurgical rotary kiln ‌ is a kind of material calcining equipment specially developed for metallurgical field, which has wide application prospect and market value. It is mainly used in various heat treatment and smelting processes in metallurgical industry, such as the heat treatment and smelting of steel, non-ferrous metals, iron alloys and other substances ‌.

Technical feature

The kiln body of the metallurgical rotary kiln is rolled with high-quality sedated carbon steel or alloy steel plate and welded automatically

Alloy cast steel is used for wheel belt, support wheel and open gear of metallurgical rotary kiln

The sliding bearing of metallurgical rotary kiln adopts the bearing with large clearance and no scraping tile

The kiln head and the kiln tail are respectively sealed by flake superposition and cylinder compression

Metallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production LineMetallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production Line

Product Parameter

Specification (m) Figure Basic parameter Main motor Type of stop wheel Pedestal bearing Weight (t)
Speed r/min Slope % Output t/d Power kw
Φ3.45×52 J968 0.35 ～0.8 5 350 75 hydraumatic roll 412.5
Φ4×58 J978 0.35 ～3.5 5 400 250 hydraumatic slide 341
Φ4.15×58.2 J975 0.35 ～0.7 5 756 55 ×2 roll 637
