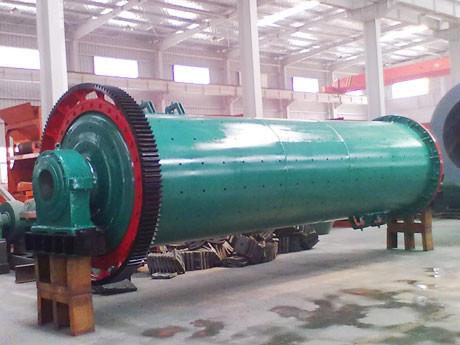

metallurgy Ore Grinding Mill Ball Mill Coal For Ore Smash And Grinding
metallurgy Ore Grinding Mill Ball Mill Coal For Ore Smash And Grinding
metallurgy Ore Grinding Mill Ball Mill Coal For Ore Smash And Grinding
metallurgy Ore Grinding Mill Ball Mill Coal For Ore Smash And Grinding
Specifications
Brand Name :
ZTIC
Model Number :
Steel Ball Coal Mill
Certification :
IOS
Place of Origin :
Henan, China
MOQ :
1 set/sets
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
3000 Set/Sets per Year
Name :
Steel Ball Coal Mill
Usage :
Cement industry, metallurgy industry, chemical industry
Model :
Ore Grinding Mill
Features :
Efficient low consumption
Material :
Various hardness of coal
Warranty :
12 month
Condition :
New
Description

Factory Customizable DTM Series Steel Ball Coal Mill For Ore Smash And Grinding

1. Introduction of steel ball coal mill

Ball mill is the main equipment of coal powder preparation system in thermal power station. At the same time, it is also suitable for cement industry, metallurgy industry, chemical industry, sugar industry and other pulverizing systems, widely used in crushing various hardness of coal. Its function is to dry, break and grind a certain size of coal into pulverized coal for boiler combustion.

The steel ball mill is one of the four auxiliary machines of thermal power station, is the theme equipment of pulverized coal preparation system, the series of ball mill is mainly used for pulverized coal grinding various hardness of coal.

2. Use of steel ball coal mill

Coal mill/mill is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizers, black and non-ferrous metal dressing and glass and ceramics and other production industries, dry or wet grinding of all kinds of ores and other grindable materials.

4. Product parameters

Mine steel ball coal mill technical parameters:

Model Cylinder size(mm) Cylinder speed(r/min) Ball load
(t)		 Feed size
(mm)		 Production capacity
(t/h)		 Power
(kw)		 Dimensions
(mm)		 Weight (kg )
Diameter length
DTM1722 1700 2200 24.5 5 ≤25 2-3 75 6685×3500×3000 23000
DTM1725 1700 2500 24.5 7.5 ≤25 3-5 90 7026×3745×3295 24600
DTM2126 2100 2600 22.81 10 ≤25 4-6 160 7891×4930×3800 35000
DTM2133 2100 3300 22.81 13 ≤25 4.5-6.5 210 8691×4930×3800 38000
DTM2137 2100 3700 22.81 17 ≤25 5.2-7.1 210 9110×4930×3800 40000
DTM2226 2200 2600 22 10 ≤25 4.4-6.6 160-180 7070×4980×3400 37400
DTM2230 2200 3000 22 12 ≤25 4.7-7.0 180 8450×4980×3400 38800
DTM2233 2200 3300 22 14 ≤25 5-7.4 210 8850×4980×3400 41000
DTM2238 2200 3800 22 16 ≤25 6-8 210-250 9450×4980×3400 43600
DTM2244 2200 4400 22 18 ≤25 8-9 250-280 10500×5340×4300 45143
DTM2247 2200 4700 22 22 ≤25 10-13.8 -280 11000×5340×4300 48800
DTM2532 2500 3200 20.3 18 ≤25 6.5-7.5 250-280 9810×5450×4194 50780
DTM2536 2500 3600 20.3 20 ≤25 7.5-8.5 310 10210×5450×4194 54900
DTM2539 2500 3900 20.3 22 ≤25 8.6-10 320 11000×5450×4194 59000
DTM2935 2900 3500 19.1 22 ≤25 11-12 380 10715×6355×4846 71000
DTM2941 2900 4100 19.1 30 ≤25 11.8-14 475 11522×6355×4846 75000
DTM2947 2900 4700 19.1 35 ≤25 13-16.4 570 12195×6355×4846 81000
DTM3247 3200 4700 18.4 44 ≤25 20 630 12600×7201×5435 120000
DTM3258 3200 5800 18.4 55 ≤25 25 800 14143×7201×5435 135000
DTM3560 3500 6000 17.57 64 ≤25 30 1000 14460×8451×5435 175000
DTM3570 3500 7000 17.57 75 ≤25 35 1200 15460×8451×5435 182000
DTM3872 3800 7200 16.54 90 ≤25 42 1700 16730×9249×5900 240000
DTM3883 3800 8300 16.54 95 ≤25 50 2000 17820×10169×5900 252000

metallurgy Ore Grinding Mill Ball Mill Coal For Ore Smash And Grindingmetallurgy Ore Grinding Mill Ball Mill Coal For Ore Smash And Grinding
