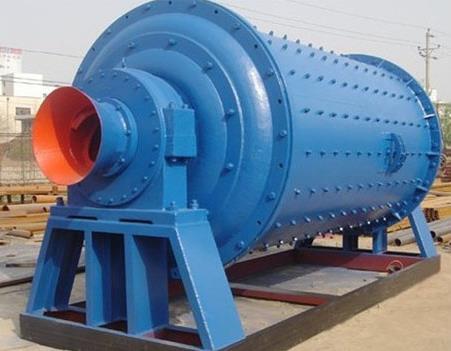

40×13.5 wet Lattice Ball Mill For Mineral Processing Ball Mill
40×13.5 wet Lattice Ball Mill For Mineral Processing Ball Mill
40×13.5 wet Lattice Ball Mill For Mineral Processing Ball Mill
40×13.5 wet Lattice Ball Mill For Mineral Processing Ball Mill
Specifications
Brand Name :
ZTIC
Model Number :
Ore Grinding Mill
Certification :
IOS/CE
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
3000 Set/Sets per Year
Product Name :
Mineral Processing Ball Mill
Model :
Lattice Ball Mill
Drive model :
Edge
Type :
MQS40×13.5
Condition :
New
Motor power :
3300 kw
Classification :
Ore Grinding Mill
Motor REV :
980 R/MIN
Warranty :
12 months
Description

Ore Grinding Mill Lattice Ball Mill For Mineral Processing Ball Mill

1. The technical characteristics of ball mill developed and designed by Luoyang Mining Machinery Factory are:

(1) Cylinder mill adopts the transmission form of edge flyers, center transmission, multi-point meshing edge transmission and other transmission types; The driving form is asynchronous motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;

(2) The general use of two static and dynamic pressure bearing support mode, the use of fully enclosed self-alcolating 1200 line contact 'rocker type' bearings, can also use single sliding track, double sliding track static and dynamic pressure support or full static pressure support;

(3) Large open gear adopts American AGMA standard design, equipped with a reliable sealing gear housing, with automatic spray lubrication device glycerin;

(4) Cylinder is the key part of the mill. Finite element analysis is carried out by computer to ensure the reliability of its use.

(5) Large and medium-sized mill equipped with slow driving device;

(6) Large and medium-sized mill equipped with high and low pressure lubrication station;

(7) Control and protection system adopts PLC control.

2. Product parameters of ball mill of Ore Grinding Mill

(1) Technical performance table of luo Mine wet grid ball mill

Model Cylinder diameter Cylinder length Effective volume Rotate speed Load of grinding media Drive mode Motor Dimension (L×W×H)

Approx

weight

 Note
power Rev
Unit mm mm m3 r/min t kw r/min m t
MQS12×24 1500 3000 5 26.6 9 Edge 95 742 6.4×2.9×2.6 18 Drum feeder
MQS15×15 1500 1500 2.3 29.2 4.8 ‥ 60 725 5.7×3.2×2.8 13.7
MQS15×24 1500 2400 3.7 29.2 7.6 ‥ 90 730 6.9×3.3×2.8 16.5
MQS15×30 1500 3000 4.6 26.6 10 Edge 90 742 7.6×3.4×2.8 19.5 Rubber lining
MQS21×30 2100 3000 9.4 22.1 20 ‥ 220 740 8.5×4.65×3 45
MQS24×30 2400 3000 12.2 21 25 ‥ 250 980 8.8×4.7×4.4 55
MQS24×70 2400 7000 26.66 21 54 ‥ 475 740 14.3×5.8×4.4 67 Rubber lining
MQS27×21 2700 2100 10.6 19.7 22 ‥ 280 733 9.7×6.5×4.8 69
MQS27×36 2700 3600 18.5 20.5 39 ‥ 400 187.5 12×5.8×4 74
MQS27×40 2700 4000 20.5 20.24 38 ‥ 400 187.5 12.4×5.8×4.7 77
MQS27×60 2700 6000 34.34 19.5 53 ‥ 630 589 12×5.7×4.5 84
MQS29×41 2900 4100 26 19.34 42 ‥ 450 740 9.9×6.1×5.1 76.1
MQS31×64 3100 6400 43.7 18.3 56 ‥ 1000 167 15.2×6.98×5.8 141
MQS32×31 3200 3100 22.65 18.3 46.9 ‥ 500 167 13.9×7.3×6.0 109
MQS32×36 3200 3600 26.3 18.3 54 ‥ 630 167 14.3×7.3×6.0 116.94
MQS32×40 3200 4000 29.2 18.2 60 ‥ 710 980 14.7×7.3×6.0 121.4
MQS32×45 3200 4500 32.9 18.3 68.5 ‥ 800 167 15.2×7.3×5.9 126.23
MQS32×54 3200 5400 39.4 18.3 81.6 ‥ 1000 167 16.6×7.3×6.1 135.4
MQS36×45 3600 4500 41.4 17.25 86 ‥ 1000 167 13.5×7.3×6.3 153.1
MQS36×60 3600 6000 54 17.3 112 Edge 1400 167 15.5×8.3×6.3 190.6
MQS36×85 3600 8500 79 17.4 144 ‥ 1800 743 20×8.2×7.1 260.89
MQS40×60 4000 6000 69.8 16.0 126 ‥ 1500 200 17.4×9.34×7.5 215.5
MQS40×67 4000 6700 76 16.0 155 ‥ 1600 980 16×8.43×7.5 235.2
MQS40×13.5 4000 13500 157 16.5 280 ‥ 3300 980 24.2×9.9×7.8

284

/375

 Rubber lining

(2) Technical performance table of Luo Mine overflow ball mill

Model Cylinder diameter Cylinder length Effective volume Rotate speed Load of grinding media Drive mode Motor

Dimension

(L×W×H)

 Approx weight Note
Power Rev
mm mm m3 r/min t kw r/min m t
MQY15×30 1500 3000 5 26.6 9 Edge 95 742 7.4×3.4×2.8 18.5

Drum

feeder
MQY15×36 1500 3600 5.7 26.6 10.6 95 742 8.0×3.4×2.8 17.22 Rubber lining
MQY18×61 1830 6100 13.4 24.5 24.6 ‥ 220 736 10.2×5.1×4.0 37.3
MQY21×30 2100 3000 9.4 22.1 15 ‥ 200 740 8.5×4.65×3 45
MQY24×30 2400 3000 12.2 21 22.5 ‥ 250 980 8.8×4.7×4.4 55
