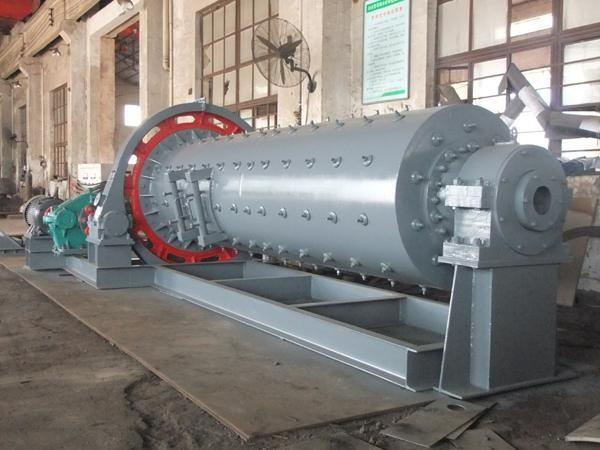

Φ2.2×6.5m Cement Milling Machine For Mining Industry
Φ2.2×6.5m Cement Milling Machine For Mining Industry
Φ2.2×6.5m Cement Milling Machine For Mining Industry
Φ2.2×6.5m Cement Milling Machine For Mining Industry
Specifications
Brand Name :
ZTIC
Model Number :
Ore Grinding Mill
Certification :
IOS
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
3000 Set/Sets per Year
Model :
Φ2.2×6.5 Cement Ball Mill
Drive mode :
Edge,center
Device weight :
53 t
Material :
cement, silicate products, new building materials
Main motor power :
380 KW
Voltage :
6000V
Classification :
Ore Grinding Mill
Warranty :
12 months
Description

Φ2.2×6.5m Cement Ball Mill Of Ore Grinding Mill For Mining Industry


1. Working principle of Cement Ball Mill Ore Grinding Mill
This machine is cylindrical rotary device, external along the gear transmission, two bin, lattice ball mill. The material from the feeding device through the feeding hollow shaft spiral evenly into the first bin of the mill, the bin has stepped lining plate or corrugated lining plate, loaded with different specifications of steel balls, cylinder rotation produces centrifugal force will bring the steel ball to a certain height after falling, the material has a heavy blow and grinding effect.
After the material is roughed in the first warehouse, it enters the second warehouse through the single layer partition board. The warehouse is inlaid with flat lining board and steel ball, and the material is further grinded. The powder is discharged through the unloading grate to complete the grinding operation.


2. Product parameters of Cement Ball Mill Ore Grinding Mill
Cement mill | cement ball mill get technical indicator:

No.Spec (m)Production (t/h)Mill RPM (r/min)feed size into mill mmLoad of grinding media (t)Effective volumeDriving ModeMain motorOverall dimensionDevice weight (T)Note
Power (kw)Voltage (V)LWH
1Φ2.2×6.513-1422＜253121.4Edge3806000123855390421053
2Φ2.2×1115-1621＜255036Center63060002155945403520109
3Φ2.2×1316-1821.5＜25604363060002607945403520114.2
4Φ2.4×81520.8＜254530Edge5606000172155564454082.53
5Φ2.4×1320-2319＜256551.7Center80060002758045403620138
6Φ2.6×1330-3219.6＜258060Edge100060002088377405670144.5
7Φ3×928-3217.8＜2570-8055Center100060002356847603670138.7
8Φ3×1136-4018.9＜2510069125060002761057204080181.9
9Φ3×113617.69＜2510069Edge125060002456775105968156.5
10Φ3.2×1140-4517.4＜1590-10078Center125060002800057203672180
11Φ3.5×9.54018＜2011576.4140060002971752505000194.4
12Φ3.5×114517.2＜1511678.5160060002845453505600271.64
13Φ3.6×8.56016.5＜2010286250060001969341415404.5233.3*With roller press output
14Φ3.8×970-8016.5＜2013094200060002852155505600255.2
15Φ3.8×12.55516.4＜25167123.5Edge2500600017419107458204301.4
16Φ3.8×136016.3＜25173128Center2500600019693*4141*5404.5223.3*
17Φ4.2×1112015.75≤3 80% pass182134.52800 1850044006500256**With roller press and O-Sepa
18Φ4.2×11.513015.99≤3 80% pass199138Single side double drive2800100001800289627520219**With roller press
19Φ4.2×11.513016≤3 80% pass199138Center2800 1725949605600220**With roller press
20Φ4.2×12.58516≤25 90%2101513150 1840049608640251**with efficient powder separator
21Φ4.2×12.514516≤3 80%2101513150 1840049608640242**With roller press
22Φ4.2×137515.6≤25 90%209157Edge3150 17445048808000255**with efficient powder separator
23Φ4.2×1315015.6≤3 80%209157Center3150 1744548808000256**With roller press and O-Sepa
24Φ4.2×13.580-8515.8≤25 90%2301643550 1774467006010256**
25Φ4.2×149515.6≤25 90%2521693550 190552049023200220**
26Φ4.2×14.59515.8≤25 80%2501784000 5050670011054278**
27Φ4.6×1495-11015 285185Edge4200600023200110546370310**


Φ2.2×6.5m Cement Milling Machine For Mining Industry
Φ2.2×6.5m Cement Milling Machine For Mining Industry
