Specifications
Place of Origin :
Henan, China
Brand Name :
CITC IC
Model Number :
JKZ
Certification :
ISO9001:2008
Supply Ability :
500 Set/Sets per Year
Packaging Details :
simply packing
MOQ :
1 Set/Sets
Price :
$400,000.00 - $3,000,000.00 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
ITEM :
JKZ series sinking winch
Color :
As required
Warranty :
12 months
Keyword :
JKZ series sinking winch
Condition :
New
Structure :
Conveyor System
After-sales Service Provided :
Engineers available to service machinery overseas
Voltage :
2JKZ &JKZ series sinking winch
Load Capacity :
2JKZ &JKZ series sinking winch
Port :
QingDao,ShangHai,TianJin
Description
Product Information

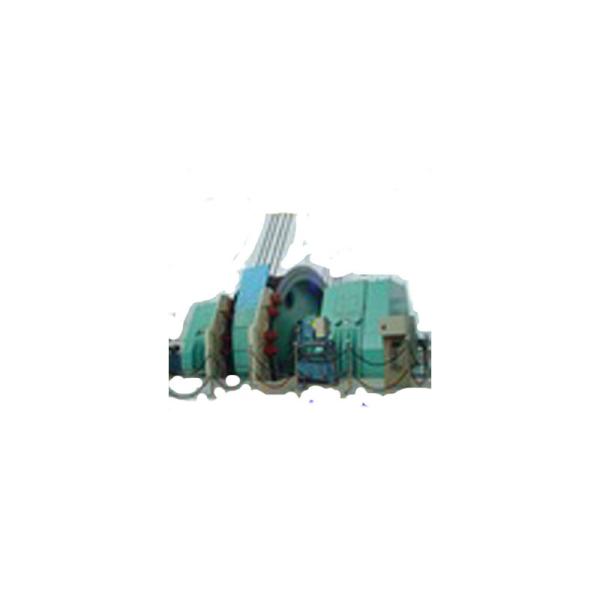

Heavy Load Sinking Winch For Coal Mining Equipment In Conveying Hoisting Machine

Product Introduction

JKZ series winch products include diameter 2.8m-5.5mJKZ single cylinder and double drum winch winch 2JKZ various specifications, winch for coal, metal and non-metal mines during the drilling, lifting of material and personnel, is a special equipment for mine shaft sinking. 2JKZ, JKZ type winch is a special lifting equipment of large ordinary sinking.

Basic information :

a. Load capacity: 0.5t-30t.

b. Working Speed: 2.5-30m/min or Customized.

c. Hydraulic pump station brand: Self-made or Chinese famous brand.

d. Wire rope capacity: 10-8000m or Customized.

e. Color: Blue,Yellow,White,Black or According to your demands.

f. Paintings: 3 layers anti-corrosion paintings

g. Usage: construction, boat, mine, bridge, building, road, crane, port, building, etc.

Heavy Load Sinking Winch For Coal Mining Equipment In Conveying Hoisting MachineHeavy Load Sinking Winch For Coal Mining Equipment In Conveying Hoisting Machine

The main purpose of sinking winch:

1.Lifting the rock in the pit

2.Lifting personnel and All kinds of machinery and equipment for shaft sinking

3.Transportation of Concrete for walls

4.The characteristics of sinking winch:

5.Large difference of static tension

6.Large Lifting load

7.high lifting speed during shaft sinking

8.Complex velocity diagram (at least nine stages speed chart)

9.Higher control precision and Better speed performance

Features of Shaft Sinking Winch

This series winches mainly used for materials lifting, weight drops pulling and drawing in construction.

It also used as main hoisting equipment in crane.

It is the special electric winch of crane and gantry frame and lifting trolley.

It is suitable for lifting material and equipments installation of construction, mine site and factory.

Technical Parameter of Shaft Sinking Winch

Items Rated load (kn) Rated speed (m/min) Rope capacity(m) Rope diameter (mm) Motor Type Power (kw)
JK0.5 5 22 190 Φ7.7 Y100L2-4 3
JK1 10 22 100 Φ9.3 Y112M-4 4
JK1.6 16 24 150 Φ12.5 Y132S-4 5.5
JK2 20 24 150 Φ13 Y132M-4 7.5
JK3.2 32 25 290 Φ15.5 YZR180L-6 15
JK3.2B 32 30 250 Φ15.5 YZR200L-8 22
JK5 50 30 300 Φ21.5 YZR225M-6 30
JK5B 50 25 210 Φ21.5 YZR225M-8 22
JK8 80 25 160 Φ26 YZR280S-8 45
JK10 100 30 300 Φ30 YZR315S-8 55
Company Information

Heavy Load Sinking Winch For Coal Mining Equipment In Conveying Hoisting Machine

Other Information

Heavy Load Sinking Winch For Coal Mining Equipment In Conveying Hoisting MachineHeavy Load Sinking Winch For Coal Mining Equipment In Conveying Hoisting MachineHeavy Load Sinking Winch For Coal Mining Equipment In Conveying Hoisting MachineHeavy Load Sinking Winch For Coal Mining Equipment In Conveying Hoisting MachineHeavy Load Sinking Winch For Coal Mining Equipment In Conveying Hoisting Machine

FQA

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time :

A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms :

A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
