Specifications
Brand Name :
Mindeoil
Model Number :
Plasma Slotted Liner MD-1
Certification :
API Spec 5CT, API Spec 5B, API Q1
Place of Origin :
China
MOQ :
10 PCS
Price :
USD 30-300/EA
Payment Terms :
L/C, T/T
Supply Ability :
10,000 M per month
Delivery Time :
14 Work days
Packaging Details :
In Bundles
OD :
1.9''-8-5/8''
Grade :
API Spec 5CT J55, K55, N80, L80, P110, C95
Wall Thickness :
3.68-12mm
Slot Width :
0.15mm-4mm
Open Area :
1%-30%
Packing :
In Bundle
Condition :
New
Warranty :
12 Months
Description

Plasma Slotted Liner for Horizontal Well Open Hole Well Completion and Sand Control

Plasma slotted liner is a patented sand control slotted liner of Dongying Mingde Petroleum Technology Co., Ltd. It has unique keystone slot by one time slotting, with self-clean function during service period. It has been extensively used in horizontal well completion for SAGD, CSS production.

Plasma slotted liner has been applied for over 1000 wells with stable sand control performance. Some thermal wells have applied steam injection 10 times without sand production.

Plasma slotted liner can be used for gravel pack, HRWP-high rate water pack and frac pack.

Slotted Liner Specifications

Base Pipe API Spec 5CT Tubing and Casing Pipe
Grade API Spec 5CT J55 K55 N80 L80-9Cr, L80-13Cr, P110
OD 1.9''-8-5/8''
Length R1 R2 R3
Slot width 0.15-4mm
Slots around circumference As per the order
Slot Types Keystone Slot, Straight Slot
Slot Patterns Staggered, Multi Staggered
Open Area 1%-30%
Slot Surface Hard-quenched layer on slot surface
Application Sand-control Completion of Horizontal well, Side Track Well Drilling, Branch Well, and Gravel Pack Well Completion

Finished products of Plasma Slotted Liner

Plasma Slotted Liner Sand Control Screens Horizontal Well Open Hole Completion Sand Control Gravel Pack Frac Pack

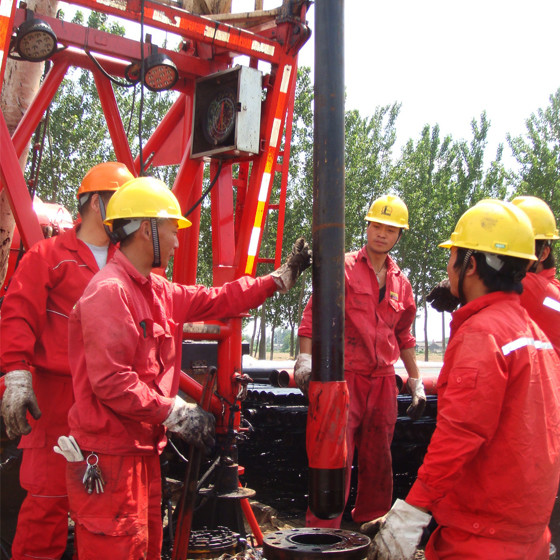

Run in hole of Plasma Slotted Liner

Plasma Slotted Liner Sand Control Screens Horizontal Well Open Hole Completion Sand Control Gravel Pack Frac Pack

Plasma Slotted Liner with 2mm slot width

Plasma Slotted Liner Sand Control Screens Horizontal Well Open Hole Completion Sand Control Gravel Pack Frac Pack

Plasma Slotted Liner Sand Control Screens Horizontal Well Open Hole Completion Sand Control Gravel Pack Frac Pack

Slotted liner is a type of sand control completion technique used in oil and gas wells to prevent sand and other particles from entering the wellbore while allowing hydrocarbons to flow into the wellbore.

Slotted liners are often used in unconsolidated or poorly consolidated reservoirs that are prone to sand production. The slots on the liner are sized to prevent sand particles from entering the wellbore while allowing the oil or gas to flow through the slots and into the liner.

Slotted liners are commonly used in combination with gravel packing, which involves filling the annulus between the liner and the formation with gravel to provide additional sand control. Together, slotted liners and gravel packing can help to prevent sand production and maintain long-term well productivity.

For further inquiry, you are welcome to contact Dongying Mingde Petroleum Technology Co., Ltd.
