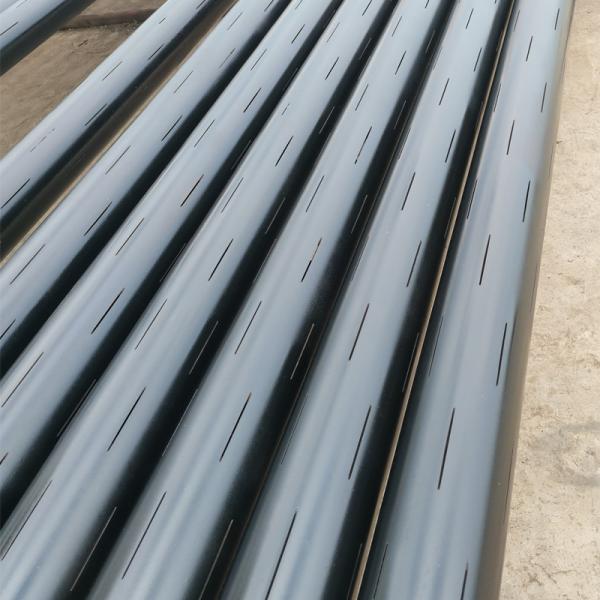

BEST PLASMA SLOTTED LINER LASER CUT SLOTTED LINER FOR OIL AND GAS WELL COMPLETION AND GRAVEL PACKING

A slotted liner is a type of well screen or completion tool used in the oil and gas industry. It is a cylindrical pipe with narrow, rectangular slots cut or keystone slots into the wall to allow fluid (oil, gas, or water) to pass through while blocking the entry of sand and other solids.

The slots can be made using various techniques, such as laser cutting, milling, or chemical etching. The slot size and pattern can also vary depending on the specific application and formation characteristics.

Slotted liners are typically installed inside a wellbore and surrounded by gravel pack or other filter media to prevent sand from entering the well. They can be used in both cased-hole and open-hole completions and are often preferred in wells with high sand production rates or unconsolidated formations.

Slotted liners have several advantages over other types of well screens or completions, including their simplicity, low cost, and ease of installation. They can also be easily replaced if damaged or worn, which reduces downtime and maintenance costs.

Slotted liners have several applications in oil reservoirs, including:

Sand control: In unconsolidated formations or reservoirs with high sand production rates, slotted liners can be installed to provide a barrier that allows oil and gas to flow into the well while preventing sand and other solids from entering. Slotted liners are commonly used in conjunction with gravel packs or other filter media to provide effective sand control.

Horizontal wells: Slotted liners are often used in horizontal wells to improve wellbore stability and prevent sand from entering the well. The slots allow fluid to flow into the well while maintaining structural integrity of the formation around the wellbore.

Selective completions: In some cases, slotted liners may be used to selectively complete certain intervals of a wellbore. This allows for optimized production by targeting specific zones of the reservoir with higher permeability or better productivity.

Completion flexibility: Slotted liners offer flexibility in completion design, as they can be easily adapted to various wellbore configurations and completion scenarios. They can also be easily replaced if damaged or worn, which reduces downtime and maintenance costs.

Use of slotted liners in oil reservoirs is a common technique for sand control and wellbore stability, particularly in unconsolidated formations or wells with high sand production rates.

The use of slotted liners in heavy oil fields provides several advantages, including:

Sand control: Heavy oil reservoirs often have high sand production rates, which can create operational challenges and equipment damage. Slotted liners can be used to prevent sand from entering the wellbore while allowing oil to flow into the well. The slots are typically narrow and rectangular, which provides a larger open area for fluid flow compared to wire-wrapped screens or perforated liners.

Thermal recovery: Many heavy oil fields require thermal recovery processes, such as steam injection or cyclic steam stimulation (CSS), to reduce viscosity and enhance oil recovery. Slotted liners can be used in thermal wells to improve steam distribution and reduce heat loss, which increases the effectiveness of the thermal process.

Production optimization: Slotted liners offer flexibility in completion design, and they can be easily adapted to various well configurations and completion scenarios. They can also be selectively installed in zones with higher permeability or better productivity, which can increase overall well production rates.

Cost-effective solution: Slotted liners are relatively simple and low-cost compared to other types of well screens or completions. They can be easily installed and replaced if damaged or worn, which reduces downtime and maintenance costs.

The advantages of using slotted liners in heavy oil fields include effective sand control, improved thermal recovery, production optimization, and cost-effectiveness.

Open area of a slotted liner can be calculated using the following formula:

Open area (%) = (Number of slots x Slot width x Slot length) / (Pipe circumference x Pipe length) x 100%

Where:

Number of slots: The total number of slots in the liner.

Slot width: The width of each slot in the liner, typically measured in millimeters.

Slot length: The length of each slot in the liner, typically measured in millimeters.

Pipe circumference: The circumference of the pipe, calculated as π x diameter.

Pipe length: The length of the slotted liner, typically measured in meters.

For example, if we have a slotted liner with 1000 slots, each measuring 1 mm wide and 50 mm long. The liner has a diameter of 5 inches (127 mm) and a length of 10 meters. Using the formula above, we can calculate the open area as follows:

Open area (%) = (1000 x 1 x 50) / (3.14 x 127 x 10) x 100%

Open area (%) = 6.17%

Therefore, the open area of the slotted liner in this example is approximately 6.17%.

Slotted liners can be suitable for steam-assisted gravity drainage (SAGD) wells, but the choice of completion technology depends on several factors, including reservoir characteristics, wellbore configuration, and sand control requirements.

In SAGD operations, slotted liners can be used to improve steam distribution and reduce heat loss from the wellbore. The slots allow the steam to enter the formation more uniformly, which helps to maintain a stable steam chamber and increase oil recovery. Slotted liners can also be useful in horizontal wells or long production intervals, where they provide greater flexibility in completion design compared to other types of screen or liner.

However, there may be some limitations to using slotted liners in SAGD wells. For example, if the reservoir has high sand production rates or is prone to channeling, then slotted liners may not be effective for sand control. In these cases, wire-wrapped screens or premium liners may be required to provide better sand exclusion.

The Suitability of slotted liners for SAGD wells depends on the specific reservoir conditions and sand control requirements. Slotted liners can be an effective tool for improving steam distribution and optimizing production, but they must be carefully selected and designed to ensure maximum performance and reliability.
